Cy2-10 Full Automatic Soil Cement Interlocking Hydraform Brick Machine with High Density
Linyi Chuangyun Import & Export Co., Ltd.- Certification：CE, ISO, SGS,Co,Coc,Pvoc,Soncap
- Customized：Customized
- Automatic Grade：Automatic
- Type：Hydroforming
- Model：Cy2-10 Clay Brick Making Machine
- Machine Capacity：4000-6000 Bricks Per Day
Base Info
- Model NO.：CY2-10
- Motor Brand：Siemens , Chinese Top Brand
- Products：Soil Interlocking Bricks, Hydraform Products
- Power Supply：Electricity , Diesel
- Power：7.5kw
- Shaping Cycle：10-15s
- Customize：Available
- Voltage：220V,380V,440V Three Phase
- Mixer Model：Jq350
- Applicable Industries：Building Material Shops, Manufacturing Plant
- Deal Method：Wholesale, Distributor, Retail
- Minimum Order Quantity：1 Set
- Cooling Method：Water Cooling
- Color：as You Need
- Transport Package：Nude Pack Well Fixed in Full Container
- Specification：235# steel for machine frame
- Origin：China
- HS Code：8474802000
- Production Capacity：3000 Bricks , Day
Description
Basic Info.
Model NO. CY2-10 Motor Brand Siemens / Chinese Top Brand Products Soil Interlocking Bricks, Hydraform Products Power Supply Electricity / Diesel Power 7.5kw Shaping Cycle 10-15s Customize Available Voltage 220V/380V/440V Three Phase Mixer Model Jq350 Applicable Industries Building Material Shops, Manufacturing Plant Deal Method Wholesale, Distributor, Retail Minimum Order Quantity 1 Set Cooling Method Water Cooling Color as You Need Transport Package Nude Pack Well Fixed in Full Container Specification 235# steel for machine frame Origin China HS Code 8474802000 Production Capacity 3000 Bricks / DayProduct Description

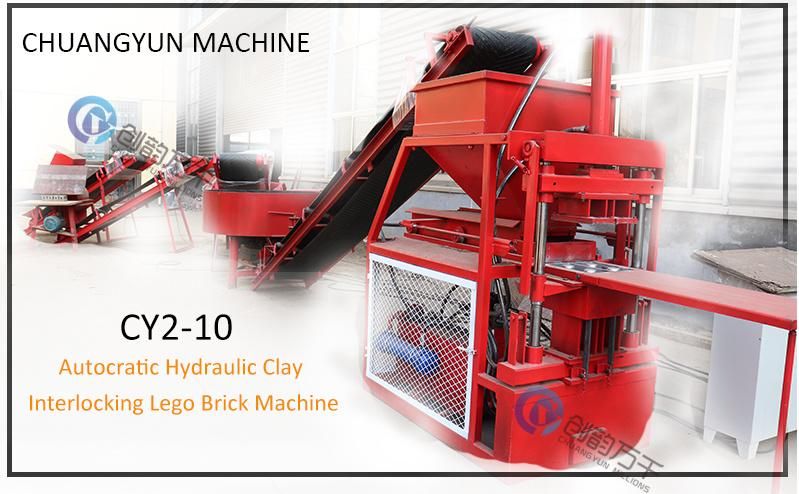

CY2-10 full automatic soil cement interlocking hydraform brick machine with high densityMachine description:
This is a fully automatic brick production machine with PLC control system. It can produce different types of bricks by changing the mold. The cycle time of the bricks is about 10 seconds and the efficiency is high.
Brick Making Process(A→F)
| Item | Name | Power | Function |
| A | Soil Crusher | 5.5KW | Crush soil into fine soil |
| B | Soil Screen | 1.1kw | Select fine soil |
| C | 3M Belt Conveyor | 0.75KW | Carry fine soil from Soil Screen to Mixer |
| D | JQ350 Mixer | 5.5KW | Mix raw material, such as soil, cement and water |
| E | 5M Belt Conveyor | 0.75KW | Carry mixed material from Mixer to Brick Machine |
| F | CY2-10 Brick Machine | 7.5KW | Produce designs of interlocking bricks and pavers |
