• Model NO.：100-600
• Main Frame：400mm H
• Power：22kw
• Control System：PLC
• Color：by Your Choose
• Transport Package：Container
• Specification：11800*1500*1600mm
• Trademark：kexinda
• Origin：Hebei China
• HS Code：8455221000
• Production Capacity：10sets,Month

Basic Info.

Model NO. 100-600 Main Frame 400mm H Power 22kw Control System PLC Color by Your Choose Transport Package Container Specification 11800*1500*1600mm Trademark kexinda Origin Hebei China HS Code 8455221000 Production Capacity 10sets/Month

Product Description

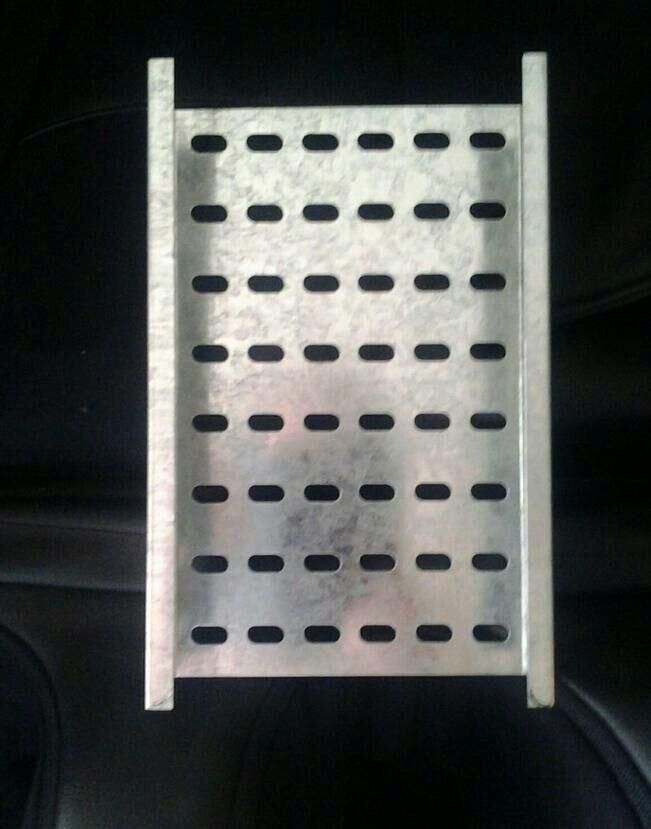

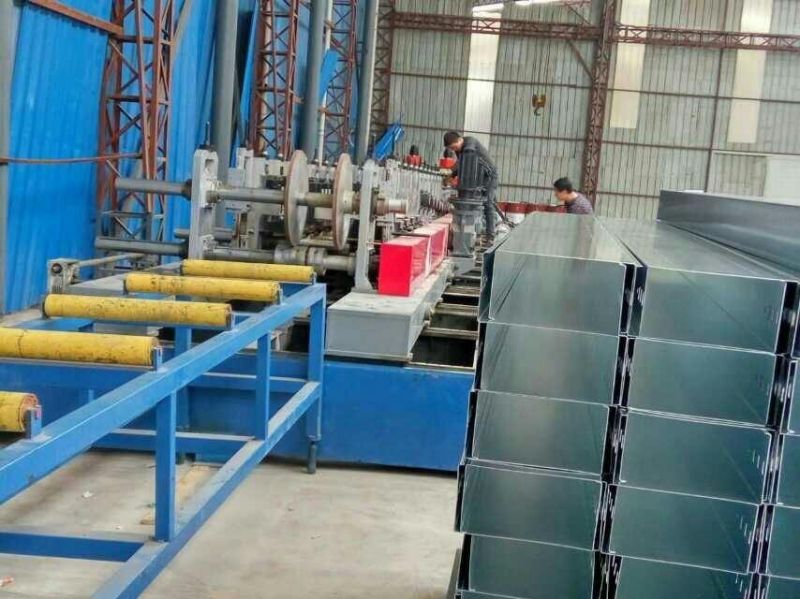

cable tray roll forming machine

Product Description

The chart of process flow:

Decoilingactive feedingroll formingmeasuring lengthcutting to lengthproduct to stand



Main equipment:

Decoiler, main forming machine, hydraulic cutting, product stand, hydraulic systerm, electric systerm

Techenical parameters:

1Automatic inner tight decoiler

A coil inner diameter:450mm-700mm

B max width of coiling: 500mm

C max loading of cloading:4500kg

2 main forming machine:

A number of forming steps:12 or according to customers requirement

B material of shaft:45# adjustable treatment. Outer diameter 70mm

C material of roller:high grade 45# steel (plated chrome on surface)

D main motor power:22kw

E forming speed :8-12m/min or according to the customers requirement

F stand: 350#steel welding

G the plated chrome of roller surface:0.05mm

3 hydraulic cutter:

A material of blade:Cr12with quenched treatment

B cutting systerm: adopt advanced hydraulic drive, automatic cut after forming, no distortion, no waste, high safe factor(main motor stops and cut)

4 product warranty:

12 months and we will provide the technical support for the whole life of the equipment.



The chart of process flow:

A Technical specification

(1)   Manual decoiler

(2) Roll-Forming M/C:

(3) Cutting Mechanism

(4)  Hydraulic System

(5)Computer control cabinet :

One counter gauges length, pulses, and decides length

(7) Output table

table

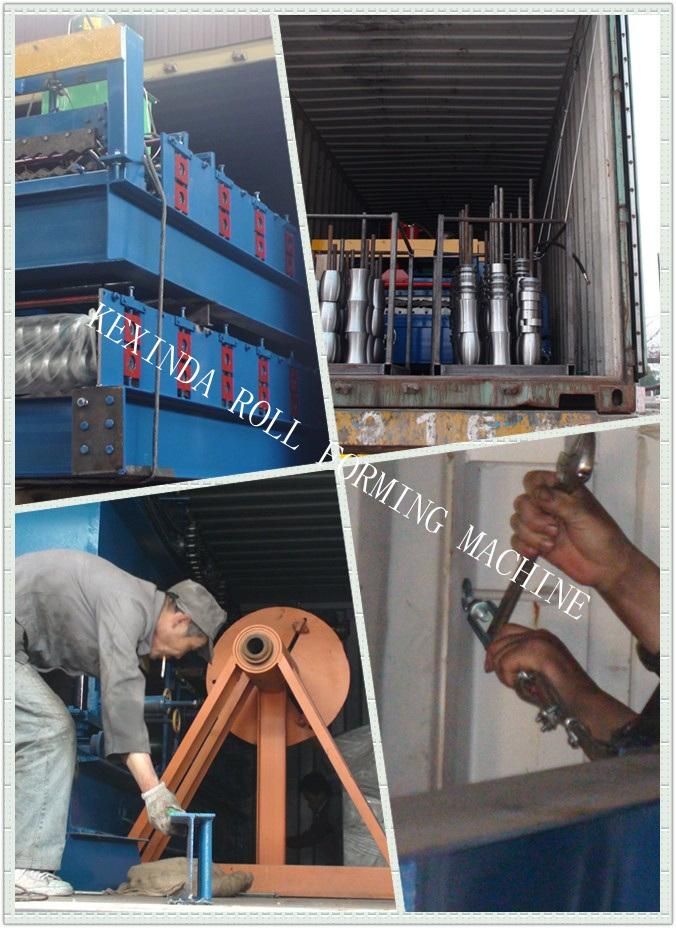

Packaging & Shipping
