• Model NO.：floor deck roll forming machine
• Transport Package：Simple Plastic Film Protection
• Specification：12.0*1.65*1.5M
• Trademark：Kexinda
• Origin：Hebei China
• Production Capacity：30 Sets Per Month

Basic Info.

Model NO. floor deck roll forming machine Transport Package Simple Plastic Film Protection Specification 12.0*1.65*1.5M Trademark Kexinda Origin Hebei China Production Capacity 30 Sets Per Month

Product Description

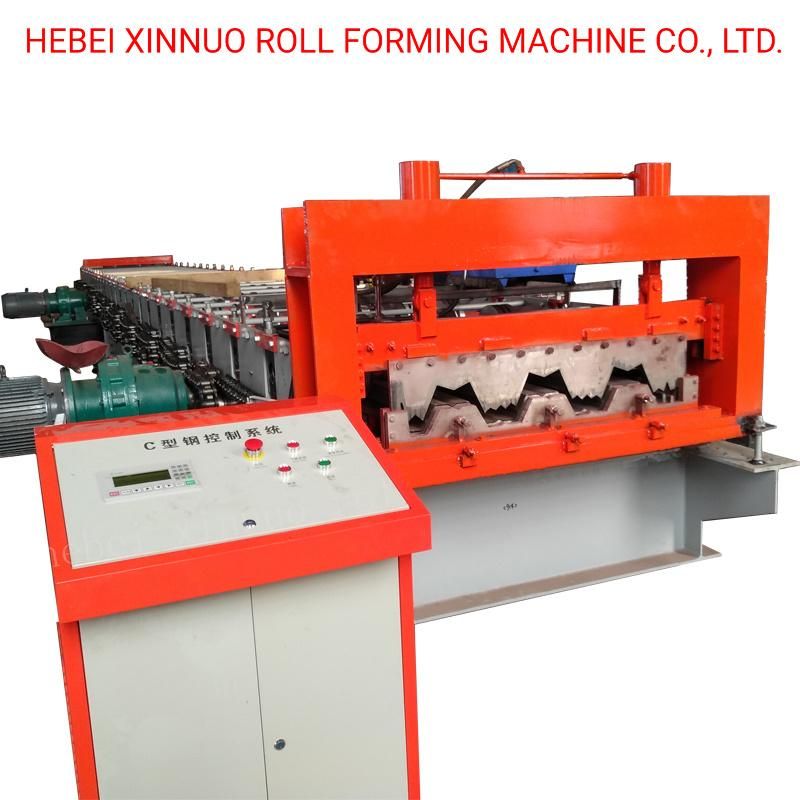

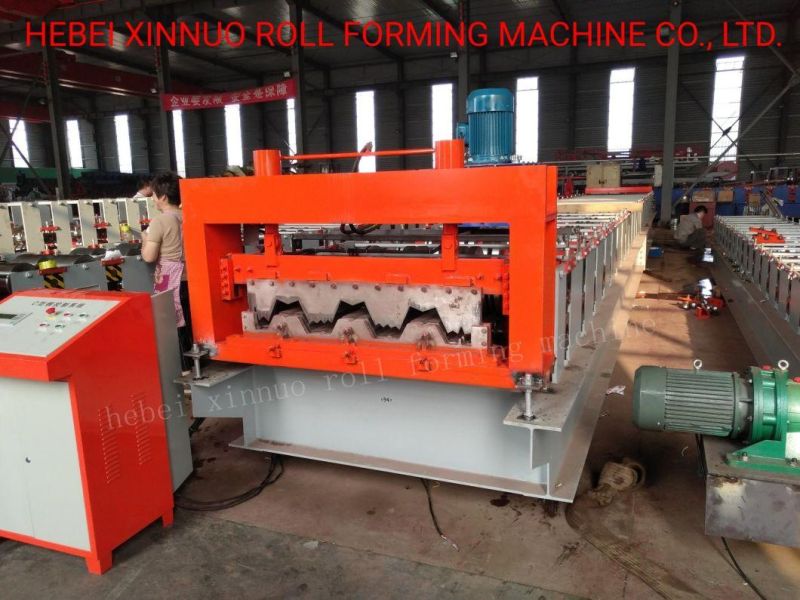

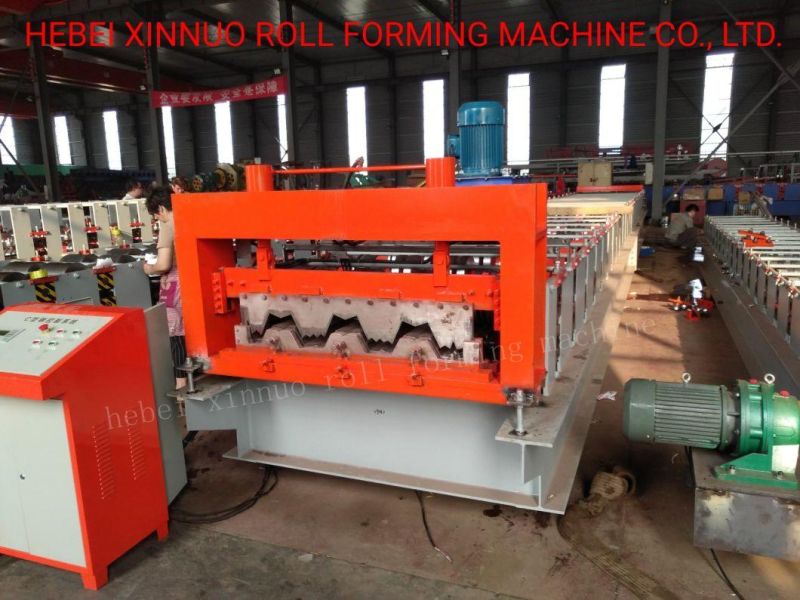

Full Automatic Steel Profile Structure Metal Sheet Floor Deck Making Machine



Machine Type: Metal Floor Deck Roll Forming Machine with High Efficiency

Model: 76-344-688 floor deck roll forming machine

Wave height: 76 mm

Wave length: 344 mm

Effective width: 688 mm



1: Configuration

 Uncoiler 1 set

PLC control system 1 set

Hydraulic cutting system: 1 set

Collection table

2: Technical Parameters:

A: Power supply:

380V, 3 phases, 50 Hz (can be adjusted according to actual power supply conditions in different countries)

Main motor power: 18.5KW

Pump power: 5.5kw

B:Uncoiler:

Inner diameter: 500mm

Outer diameter: 1100mm
loading weight: 5t

C:Forming part:

Feeding thickness: 0.8-1.3mm

Feeding width: 1000mm

Forming speed: 10m/min

Cutting Deviation: 10m±2mm

No. of Roller station: 24 groups

Roller material: Cr12

Material of shaft: 45# steel with heat treatment

Diameter of shaft: 72-90mm

D:Hydraulic System:

Hydraulic pressure: 13-16 Mpa

Cutter material: Cr12

E:Control system:

Full-automatic NC-PLC control system

Control channel: Colored touch screen

Maintenance of roll forming machine

For a roll forming machine, good maintenance is a crucial element to improve machine working efficiency and extend its service life. Following are some tips on machine maintenance:

Filter

1 each oil change, filters should be replaced or thoroughly cleaned;
2 air filter of the fuel tank should be checked and cleaned every three months better to be replaced each year.
3 when there is alarm or oil filter is not clean, filter should be replaced;

Hydraulic components

1 Hydraulic system should be cleaned each month, (including the base board, valve, motor, pump and oil pipe.) to keep dust off, but detergent should not be used.
2 When the new machine has been used for one month, user should check possible deformation of oil pipe and replace the deformed one. When used for two month, all connections of components should be tightened and this should be done after the machine is turn off and there is no system pressure.

Hydraulic oil

1 oil level should be checked each week or after repair of hydraulic system. Fill in the hydraulic oil once oil level is below the oil window
2 oil temperature should be between 35 °C ~ 60 °C, shall not exceed 70 °C,if the oil temperature is too high it will lead to deterioration and damage of accessories.
3 new machine oil change should be conducted after 2000 hours usage, after that, every 4000 ~ 6000 hours of work should change oil, Oil tank should be washed every time oil is changed.




FAQ:
1:How to play order: Inquiry---confirm the profile drawings and price----confirm the PI---arrange the deposit or L/C---then OK

2:How to visit our company:

Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao  to Cangzhou Xi(4.5 hours),then we can pick up you.



3:When we exported the machines:

We have beening making and exporting the machines since from the year of 1998.

Our service:

1:Engineers available to service machinery overseas.

2: Warranty: 12 months.

3:Technical guidance for free forever.
