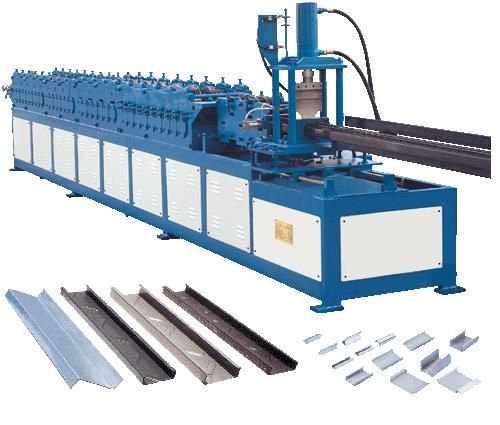

Full Automatic C Z Steel Purlin Machine/Cold Roll Forming Machine

Zhengzhou City Unites Steel Industrial Co., Ltd.
  • Warranty：3 Years
  • Certification：CE, ISO9001: 2000, Ce
  • Customized：Customized
  • Condition：New
  • Control Type：CNC
  • Automatic Grade：Automatic

Base Info

  • Model NO.：CUS-140224-K
  • Type：Concrete Iron Strengthen Machinery
  • Dimension(L*W*H)：9* 1.2m *1.3m
  • Width of Feeding(mm)：Max 600,454mm
  • Thickness of Feeding：1.5-3.0
  • Control System：PLC Manual,Automatic

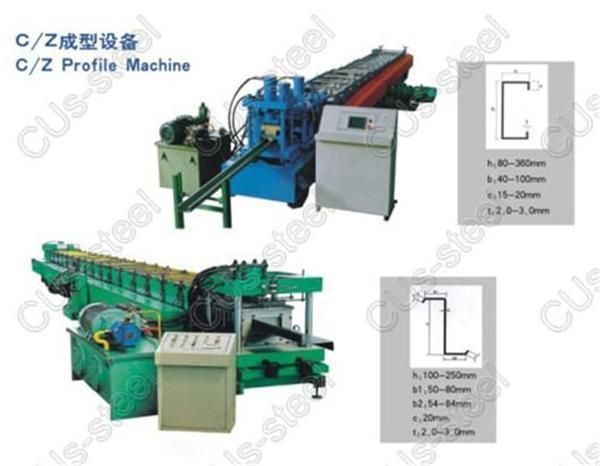

  • Application：C Z Purlin
  • Transport Package：Export Packing
  • Specification：CE,ISO9001,SGS
  • Trademark：CUS-STEEL
  • Origin：Henan, China
  • HS Code：845521
  • Production Capacity：50000 Set,Year

Description

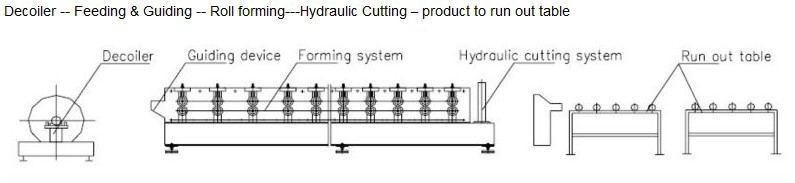

Power requirementMain motor power: 15Kw(Confimed by final design)Hydraulic station power: 5.5Kw (Confimed by final design)3 tons manual un-coiler       Max. capacity: 3000kgs; Inner Dia.: 508mmMain roller quantityAround 14 stands (Confimed by final design)Type of cuttingRoll-formed and length-set cuttingVoltage380V 3phase 50HZ or as customers' requirements    Full Automatic C Z Steel Purlin Machine/Cold Roll Forming Machine
Full Automatic C Z Steel Purlin Machine/Cold Roll Forming MachineFull Automatic C Z Steel Purlin Machine/Cold Roll Forming MachineFull Automatic C Z Steel Purlin Machine/Cold Roll Forming Machine
Roller Die Material           G G Cr15 bearing steel with quenched treatment
Active Shaft Material  High grade No.45 carbon wrought steel,which can improve the integrated mechanic feature of the shaft, shaft diameter 90mm
Electric elements:
 		Control system PLC panel, transducer and touch screen originally imported from Mitsubishi of Japan.
Other elements from famous suppliers in China
Cutter blade:Cr12 mould steel with quenched treatment
