• Model NO.：CLXF-300*100
• Rotary Speed：12000r,Min
• Air Pressure：0.5-0.8MPa
• Dia. Drilling Cutter：Dia.5, Dia 8
• Copy Range：300*100mm
• Processing Roughness：Ra12.5um
• Air Consumtion：30L,Min
• Machine Dimension：870*700*1500mm
• Weight：225kg
• Transport Package：Wooden
• Specification：Copy router range 300*100mm
• Trademark：Truepro
• Origin：China
• HS Code：846510
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. CLXF-300*100 Rotary Speed 12000r/Min Air Pressure 0.5-0.8MPa Dia. Drilling Cutter Dia.5, Dia 8 Copy Range 300*100mm Processing Roughness Ra12.5um Air Consumtion 30L/Min Machine Dimension 870*700*1500mm Weight 225kg Transport Package Wooden Specification Copy router range 300*100mm Trademark Truepro Origin China HS Code 846510 Production Capacity 500 Sets/Year

Product Description

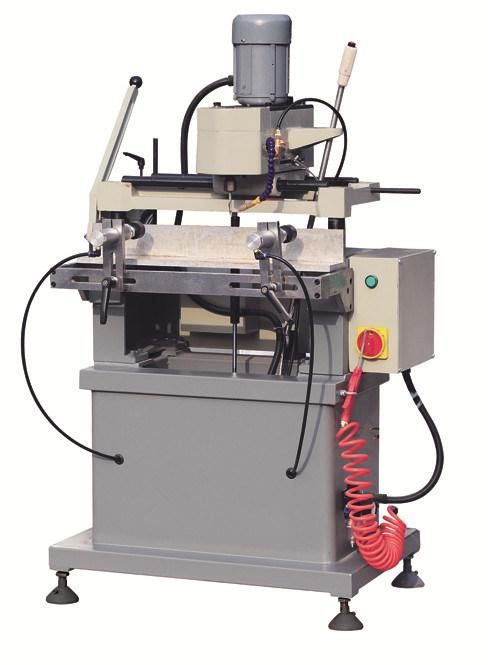

Good cheap aluminum and UPVC profile copy routing milling machine

 Machine feature:

1. Used for copy routing processing various kinds of holes, grooves and water slots.

2. It has features of compact structure and small volume, the air pressure drives the clamping.

3. It can achieve continuous copy routing milling, easy operation and safety.

Parameter:

Model	CLXF-300*100
Input power	0.75kw
Power supply	380v/50HZ
Air pressure	0.5~0.8MPa
Main shaft rotary speed	12000r/min
Milling cutter diameter	Φ5,Φ8
Copy-routing range	290*90mm
Overall dimension	870*700*1500mm
weight	225kg

Machine details:




Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.




1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
