New Light Steel House Frame Keel Stud Truss Curtain Track Bending Roll Forming Machine

HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.
  • Warranty：1 Year
  • Certification：CE, ISO9001
  • Customized：Customized
  • Condition：New
  • Control Type：PLC Computer Control
  • Automatic Grade：Automatic

Base Info

  • Model NO.：100
  • Capicity of Decoiler：5000kgs
  • Main Motor Type：Three-Phase Asynchronous
  • Motor Power：5.5kw
  • Thickness of Raw Material：0.8-1.2mm
  • Processing Precision ：Withint1.0mm
  • Diameter of Main Shaft：42mm
  • Roller Stations：12
  • Name：New Light Steel House Frame Keel Stud Truss Curtai
  • Weight of Machine：About 2.5 Tons
  • Processing Speed：35-55m,Min
  • Transport Package：Main Machine with Film by Container Shipping.
  • Specification：size: about 4.8*1.0*1.3m
  • Trademark：KXD
  • Origin：China
  • HS Code：8455221000
  • Production Capacity：3000 Sets,Year

Description

Main parameters of New Light Steel House Frame Keel Stud Truss Curtain Track Bending Roll Forming Machine 1Suitable to processsteel2Width of the feeding materialMax. 500mm3Roller station12 rows4Thickness of feeding material0.8-1.2mm5Productivity15-45m/min6Rollers' material45# steel7Diameter of shaft42mm8WeightAbout 2.5T9Size4800*1000*1300mm10Voltage380V  50HZ  3phases11Main motor power5.5 kw12Hydraulic cutting power3 kw
New Light Steel House Frame Keel Stud Truss Curtain Track Bending Roll Forming Machine

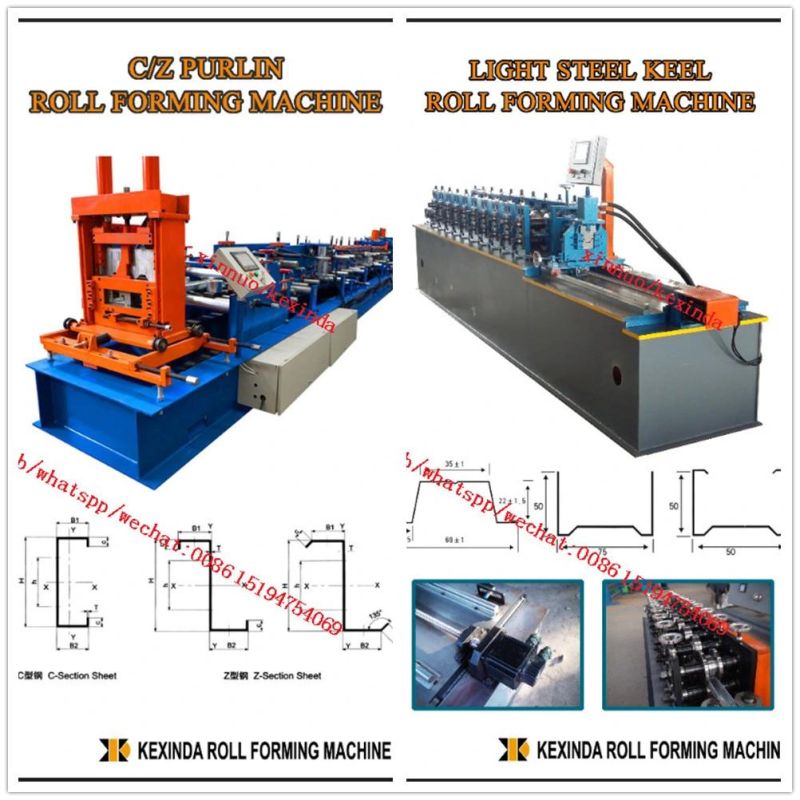

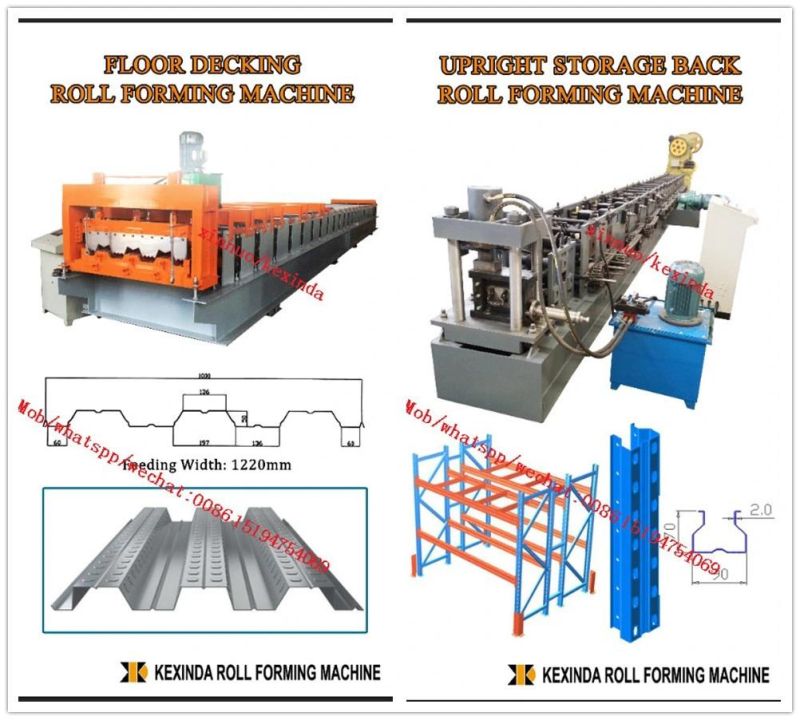

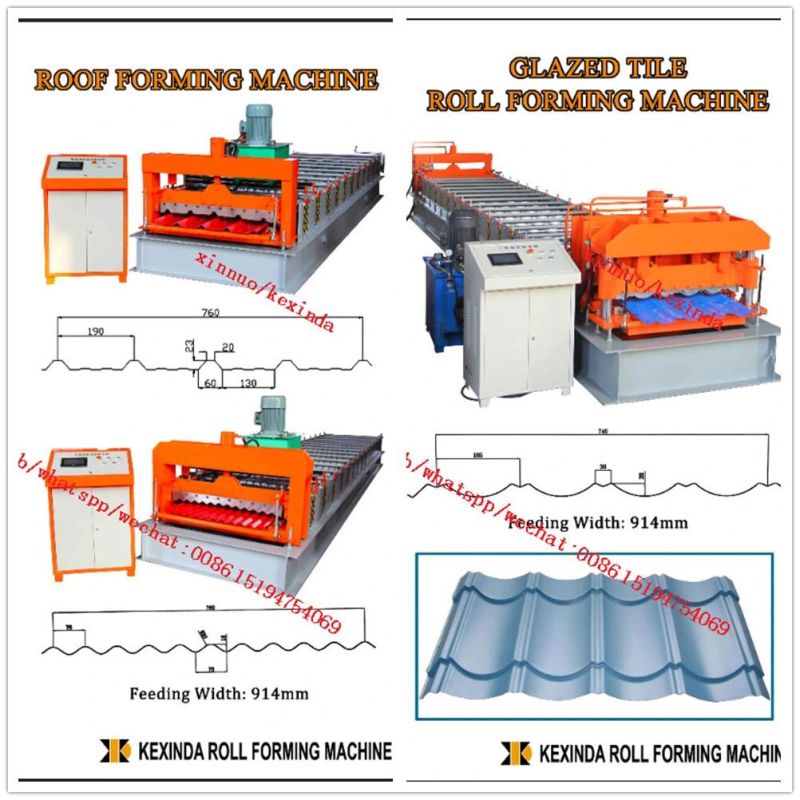

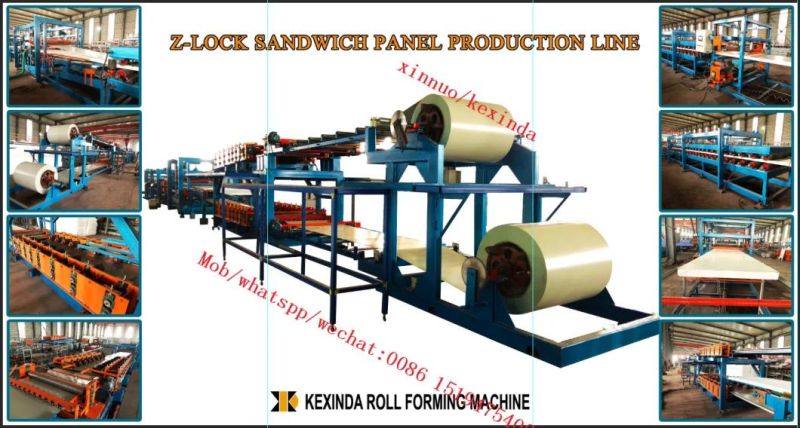

Hot sale machines in our company:
New Light Steel House Frame Keel Stud Truss Curtain Track Bending Roll Forming Machine
New Light Steel House Frame Keel Stud Truss Curtain Track Bending Roll Forming Machine
New Light Steel House Frame Keel Stud Truss Curtain Track Bending Roll Forming Machine
New Light Steel House Frame Keel Stud Truss Curtain Track Bending Roll Forming Machine

If you need any type of roll forming machine, please contact me at any time:
