Qt4-24 Cement Brick Making Machine, Hollow Block Making Machine, Concrete Block Making Machine, Block Forming Machine
Linyi Duyue Import and Export Co., Ltd.- Certification：CE, ISO
- Customized：Customized
- Automatic Grade：Semiautomatic
- Type：Hydraulic Shock
- Mixer Model：Jq350
- Service Provided：Engineers Available to Service Machinery Overseas
Base Info
- Model NO.：Qt4-24
- Vibration Force：35.5kn
- Motor：Siemens Brand Motors
- Color：Customized
- Shaping Cycle：20-24s
- Transport Package：Container
- Specification：2060*1730*2580mm
- Trademark：DUYUE
- Origin：China
- HS Code：8474802000
- Production Capacity：50 Sets Per Month
Description
Basic Info.
Model NO. Qt4-24 Vibration Force 35.5kn Motor Siemens Brand Motors Color Customized Shaping Cycle 20-24s Transport Package Container Specification 2060*1730*2580mm Trademark DUYUE Origin China HS Code 8474802000 Production Capacity 50 Sets Per MonthProduct Description
Production description
1. Using the manual force control and jog control together, the operation is simple and efficient;
2. Using four polesoriented manner and ultralong orientation bear to ensure the precise movementof the pressure head and mould;
3. Using the ultra strong steel and special welding techniques,it is strong and of high resistancetovibration;

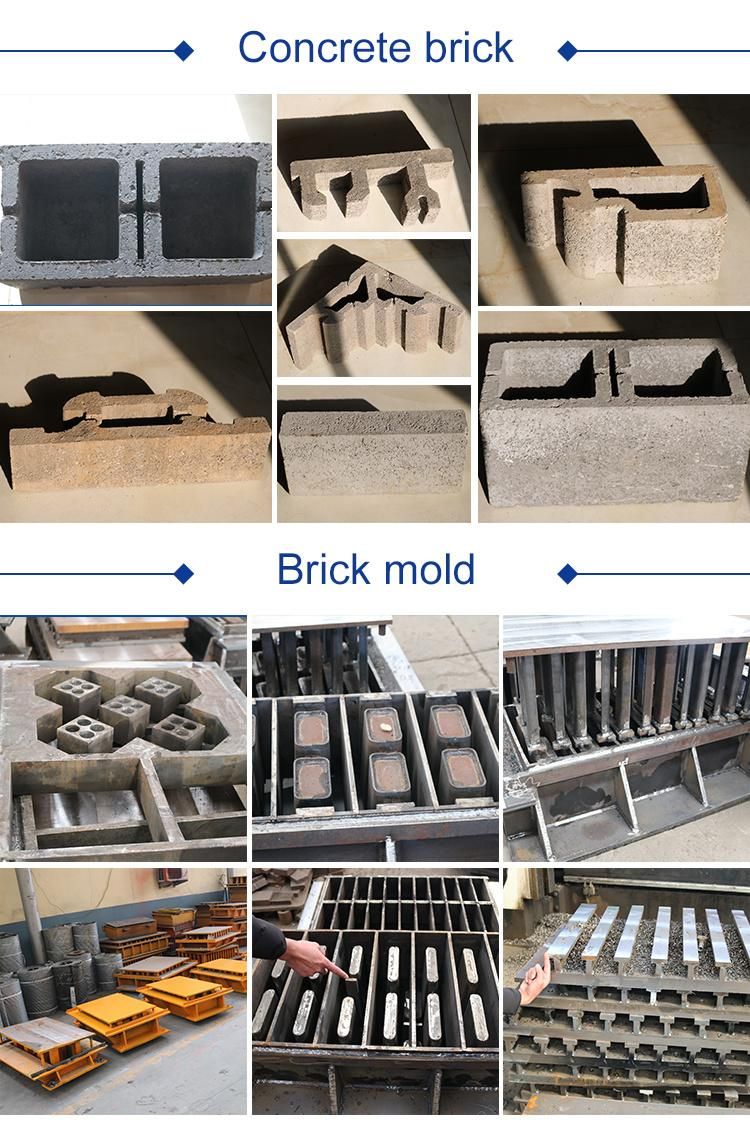

4. It is a multiuseful hollow block machine which could produce road blocks, curb stones, blocks,hollow bricks and other shapes of different specifications of concrete products via changing theblock mould;

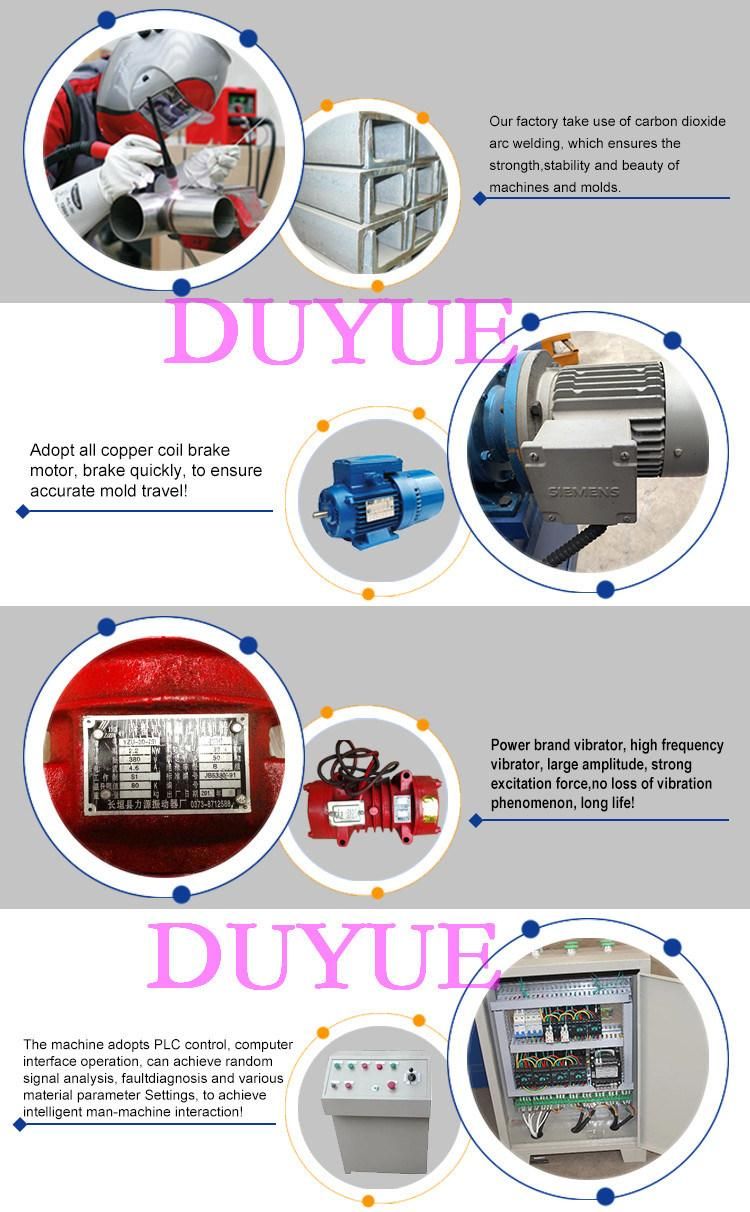

5. imported electrical appliances, sealing parts and parts of hydraulic components, the equipment'scomprehensive performance is stable and reliable;
6. Using mechanical drive, it is a collection of compact structure, easy maintenance, operationflexible and good reliability;
7. The products which produced by semi-automatic block machine are all of high strength,gooddensity, good appearance,accurate size and regular shapes;
8. The semiautomatic block forming machine can achieve high eficiency if utilizing large dosage offly ash and slag,could save you more investment and give you a fast turnover.

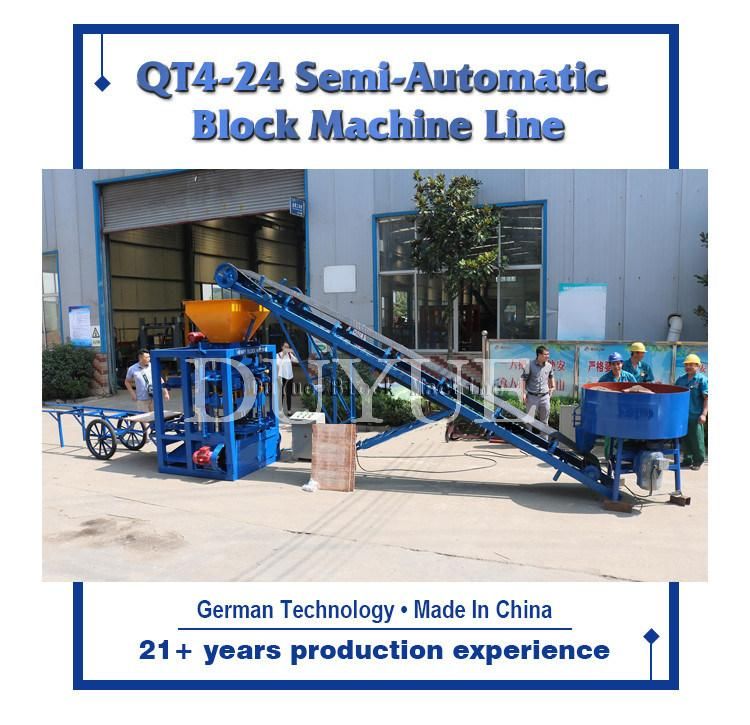

QT4-24 block making machine
| Overall size | 2060(L)*1730(W)*2580(H)mm |
| Shqping cycle | 24-30 seconds |
| Pallet size | 850*450*25mm(bamboo) |
| 850*9450*20mm(Plastic) | |
| Vibration vibrator | Max.4000R/Min |
| Upper vibrator | 2.2KW |
| Nether vibrator | 6KW |
| Electricity | 380v220v |
| Total weight | 3000KGS |

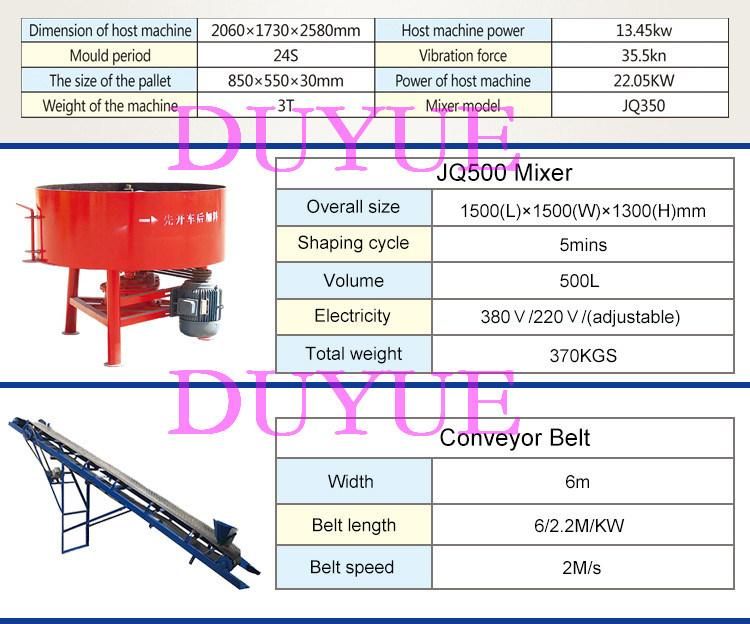

Main technical parameters

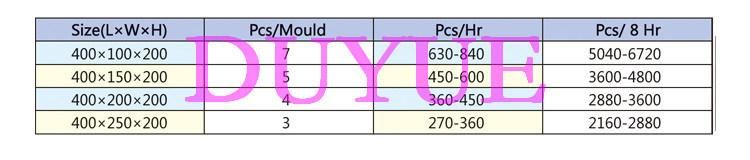

Theoretical production capacity
