• Model NO.：NX80-300

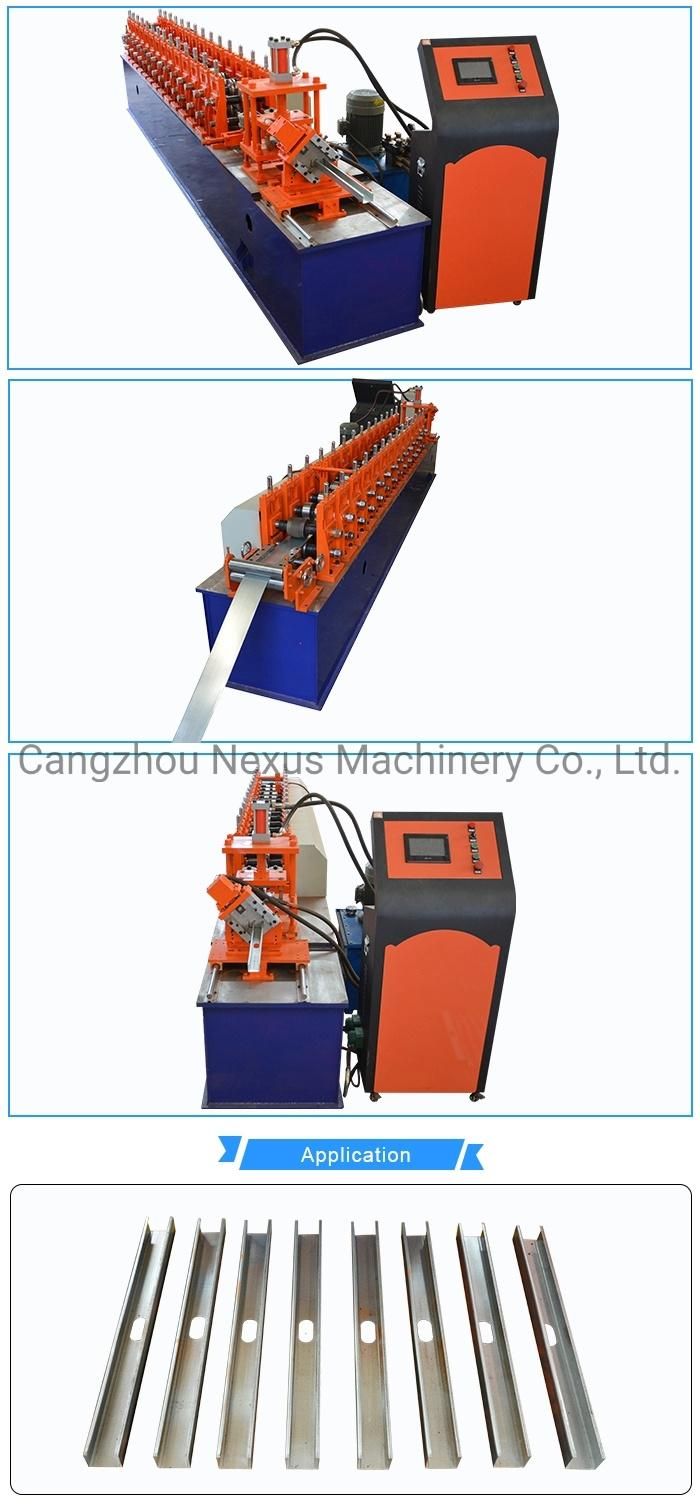

• Product Name：Adjustable Cu Light Gauge Steel Machine
• Coil Material Thickness：0.3-0.8mm
• Processing Material：Galvanized Steel
• Roller Material：Cr12MOV
• Diameter of Shaft：56mm
• Forming Speed：15-30m,Min
• Package：One Full Set of 20 Feet Container
• Thickness of Structure：30mm
• Main Motor Power：5.5kw
• Drive：Gear Box
• Total Weight (Approx)：2.3t
• Transport Package：Control Box and Easy Damaged Parts: Protective PA
• Specification：60-27-28
• Trademark：Nexus Machinery
• Origin：Cangzhou
• HS Code：8455221000
• Production Capacity：10 Sets,Month

Forming speed(m/min)

0-30m/min  max

Not include the time of cutting

3.

Forming stations

12 stations

5.

Material of rollers

CR12

6.

Thickness of structure

30mm

7

Forming shaft diameter(mm)

70

8

Drive

Gear box

9

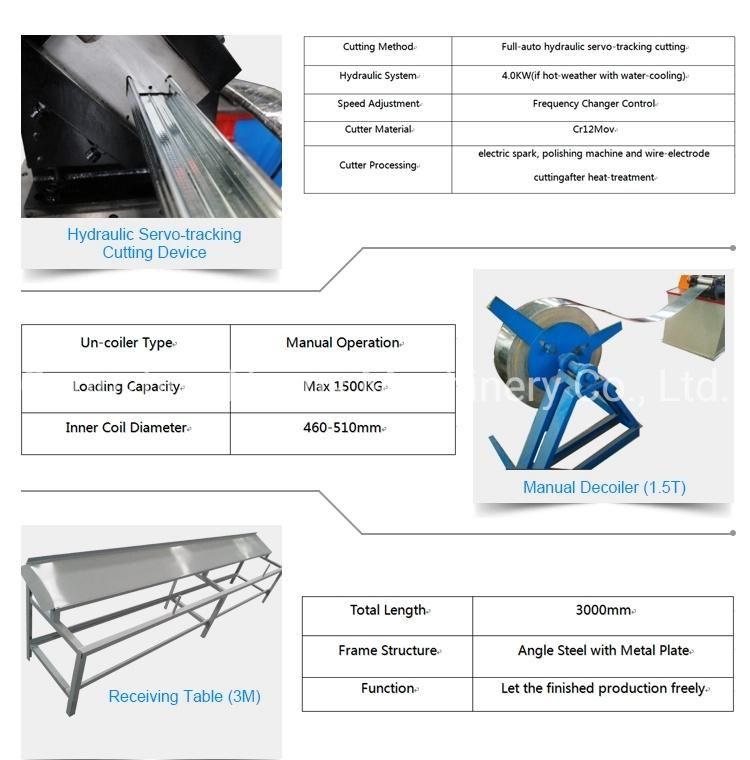

Type of cutting

Hydraulic cutting

10.

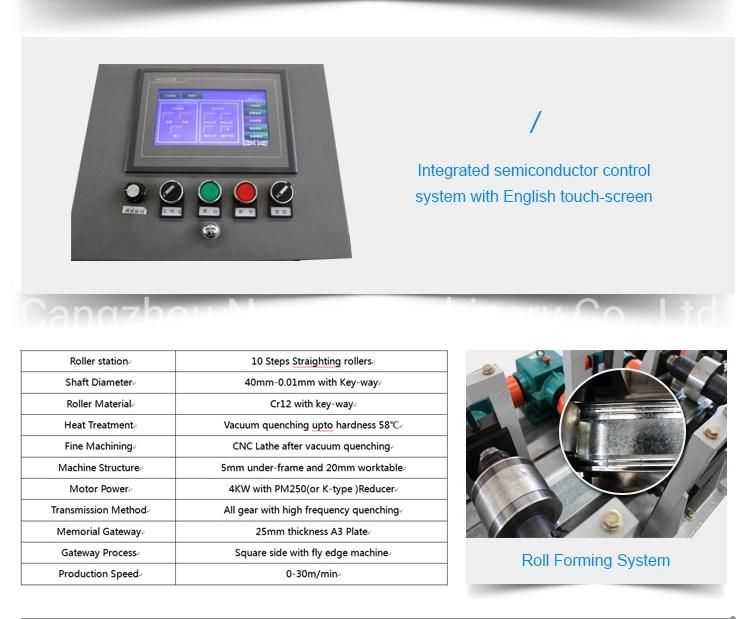

Control system

 PLC xinjie

11.

Install dimension(depend on the final design)

4.8m×0.6m×1.2m

Without panel length

12.

Total weight (Approx)

2.3T

Depend on final design

13.

Screen

Text screen /touch screen

ABOUT US:




More Products for Your Choose:




FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made within 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
