Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine

HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.
  • Automatic Grade：Automatic
  • Power Source：Electric
  • Screw Design：Double-Screw
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized

Base Info

  • Model NO.：750
  • Feeding Material Width：914mm or Customized
  • Feeding Thickness：0.3-0.8mm
  • Main Motor Power：4kw
  • Cutting Method：Hydraulic Mould Cutting
  • Cutting Material：Cr12
  • Cutting Power：3kw
  • Roller Material：45# Steel
  • Roller Station：11-16 Stations
  • Machine Color：as Customer Need
  • Machine Size：About 5800*1450*1450mm
  • Transport Package：Main Machine with Simple Plastic Film.
  • Specification：size: about 5.8*1.45*1.45m
  • Trademark：KXD
  • Origin：China
  • HS Code：8455221000
  • Production Capacity：300 Sets,Year

Description

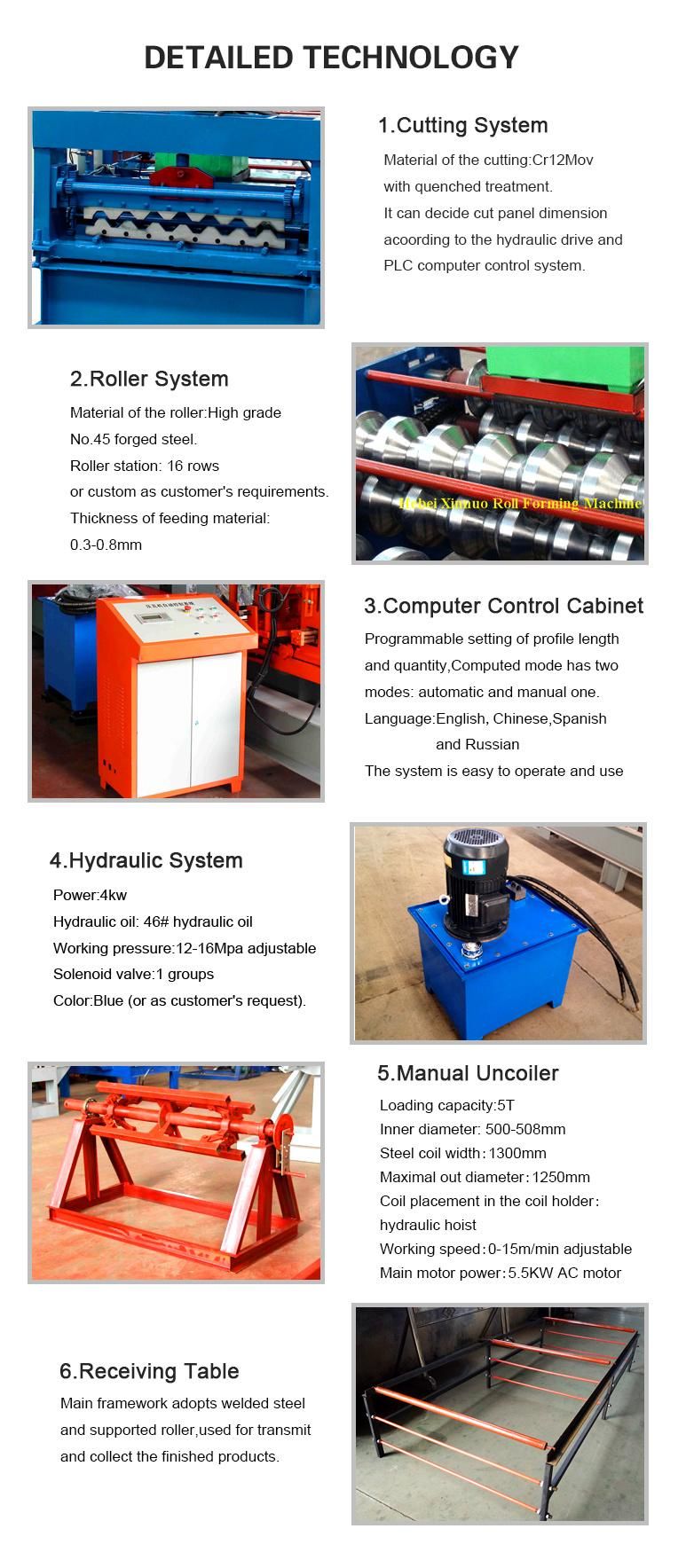

         Main parameters of Roof panel roll forming machine in Indonesia1Suitable to processColor steel plate, galvanized sheet,aluminum coils and etc.2 Width of the feeding material914 mm3Roller station11-16 rows4Thickness of feeding material0.3-0.8mm5Productivity 10-15m/min6Rollers' material45# steel, with hard chrome on surface7Diameter of shaft70mm8Weight About 4.0 T9Size 5.8*1.45*1.45m10Voltage380V 50Hz 3Phase11Main frame of machine300mm H steel12Main motor power3kw13Hydraulic cutting power3kw14Side panel thickness14-20mm
Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine


Our company information:

Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine
Metal Roofing Sheet Corrugating Iron Sheet Roll Forming Making Machine


If there is anything I can do for you, please don't hesitate to contact me, my friend!
