• Model NO.：QT4-15
• Vibration Frequency：4600(R,Min)
• Pallet Size：950*500
• Vibration Force：40kn
• Block Type：Hollow Block,Solid Block,Paver Block,Curbstone
• Raw Material：Concrete, Cement, Fly Ash, Dust, Gravel, Slag, Cru
• Rated Pressure：16MPa Hydraulic Pressure
• Warranty：12 Months
• Product Name：Qt4-15 Interlocking Concrete Brick Making Machines
• Transport Package：According to Your Need
• Specification：7100*1600*2610mm
• Trademark：shiyue
• Origin：Shandong Province China
• HS Code：8474802000
• Production Capacity：7680PCS-34560PCS

Basic Info.

Model NO. QT4-15 Vibration Frequency 4600(R/Min) Pallet Size 950*500 Vibration Force 40kn Block Type Hollow Block/Solid Block/Paver Block/Curbstone Raw Material Concrete, Cement, Fly Ash, Dust, Gravel, Slag, Cru Rated Pressure 16MPa Hydraulic Pressure Warranty 12 Months Product Name Qt4-15 Interlocking Concrete Brick Making Machines Transport Package According to Your Need Specification 7100*1600*2610mm Trademark shiyue Origin Shandong Province China HS Code 8474802000 Production Capacity 7680PCS-34560PCS

Product Description

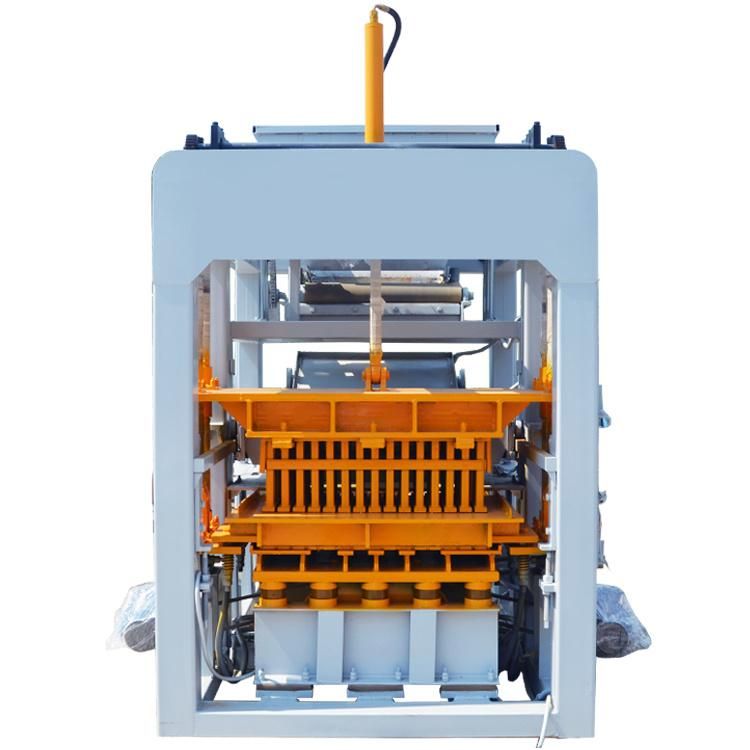

QT4-15 Automatic Hollow Block Curbstone Paver Block Machine






FEATURES

 1.UseSiemens Motor, this brand produce the best motor in the world, its lifespan is times than that      of common  motor.
 2. When pressing, and computer controlled directional vibration, frequency and brake to cancel the  vibration energy.

3. Feeding in low-frequency, vibrating in high frequency, and increasing in Head tanks. Table and mould vibrating together  will make concrete fully liquefied and exhausted in 2-3 seconds to achieve high-density and high strength. Particularly be  suitable for the production of high-strength blocks, you can stack  immediately after forming.

4. Hopper installed a swing-type cutting device, it can put the materials into the molding box uniformly by adjusting the  swinging fork.

5. The host keeping material controlled by photoelectric, material that is used upon to avoid the impact of aftershocks, some concrete liquefied advanced.

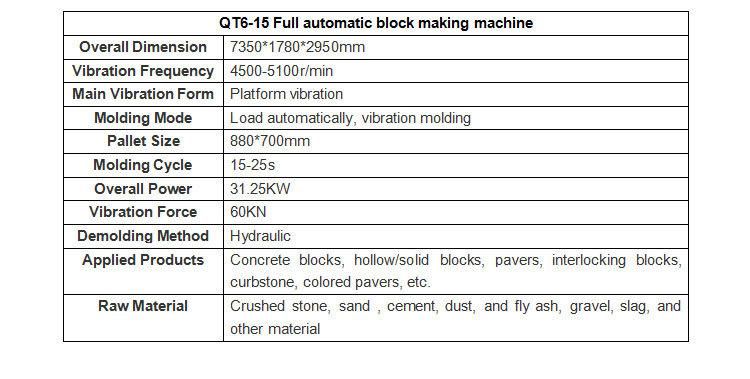

TECHNICAL PARAMETERS

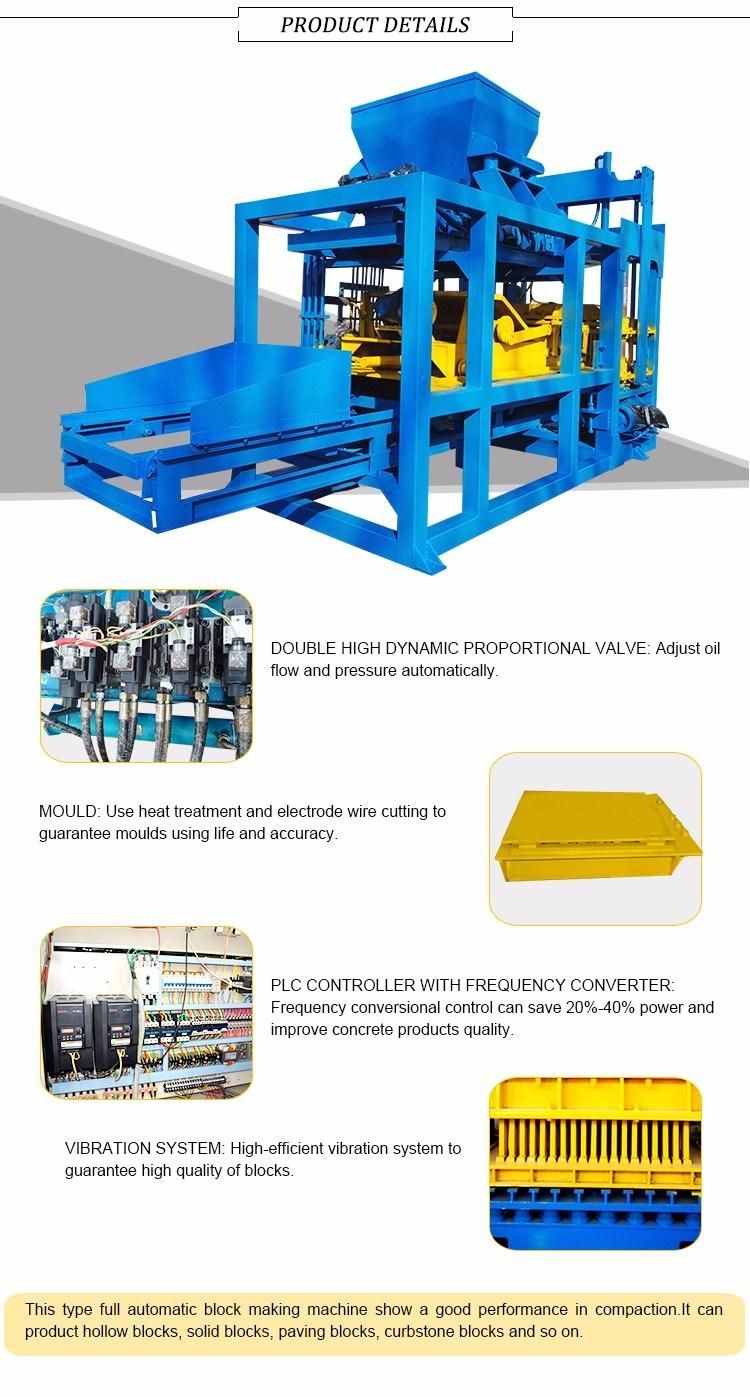

Product Details



Packaging & Shipping

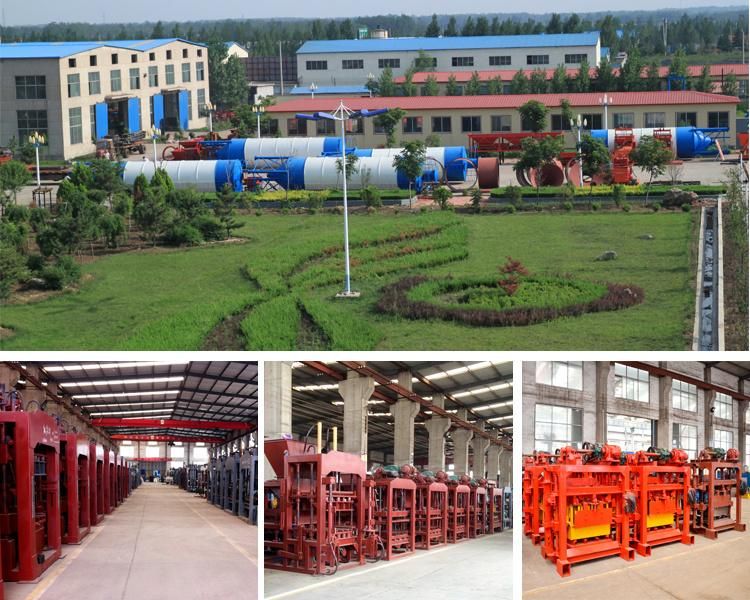

Our factory
