• Model NO.：LJJA-CNC-500
• Certification：ISO, CE
• Automatic Grade：Automatic
• CNC or Not：CNC
• Voltage：380V
• Power Supply：380V,50Hz
• Saw Head Motor：2*3.0km 2840r,Min
• Working Pressure：0.6~0.8MPa
• Air Supply：60L,Min
• Cutting Length：380~4300mm
• Cutting Width：Max.135mm
• Max.Cutting Slop：45° 135X180mm
• Cutting Angle：90° 45°
• Feeding Speed：0~3m,Min
• Saw Blade Specification：Φ500X4.4X30 Z=120
• Overall Dimension：5800X1800X1500mm
• Weight：1750kg
• Transport Package：Wooden Box
• Specification：500*4300-A
• Trademark：Seth
• Origin：Jinan
• Package size per unit product：580.00cm * 180.00cm * 150.00cm
• Gross weight per unit product：1750.000kg

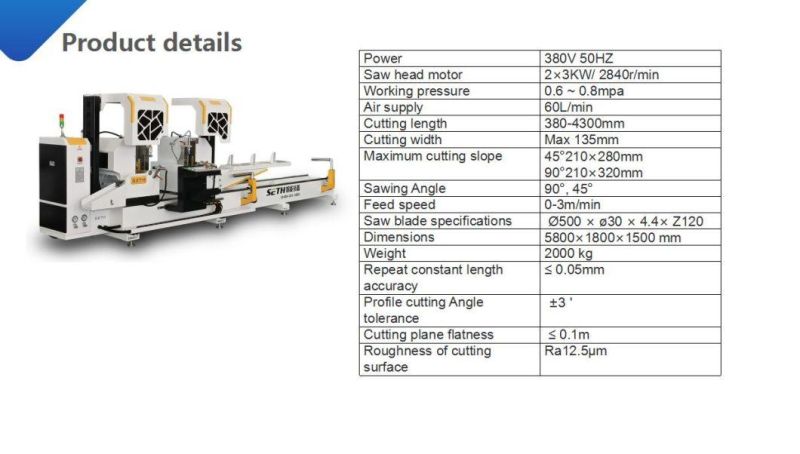

Product Parameters

Product Description

1.It is mainly used for cutting industrial aluminum profiles, broken bridge aluminum doors and Windows, curtain wall materials, also can be used for cutting PVC and wood profiles, using 600 large data sheet, easy to cut large profiles.
2.Adopt square guide rail, repeat positioning precision is high.
3.The machine adopts numerical control technology and can complete automatic positioning cutting of different sizes of profiles.
4.High quality aluminum carbide saw blade, high speed, high processing accuracy.
5.CNC transmission adopts high standard rack and pinion, high transmission accuracy, accurate positioning, stable work.
6.High precision spindle ensures stable rotation of the data sheet and effectively improves the surface quality of the workpiece.
7.The gas-liquid damping cylinder realizes uniform feed speed regulation and smooth movement.
8.Micro spray cooling device is adopted.
9.Automatic head rotation, bidirectional positioning, clamping, single head can work independently. Automatic opening and closing protective cover, make operation more safe.
10.According to the piece automatically pendulum into 45° and 90° Angle, automatically open and close the protective cover, so that the operation is safer.
11.According to the slice from back to front, according to cutting profile is more safe and reliable, and saw cutting height and saw cutting width are very large.
