• Model NO.：CLJB2B-CNC-500*6000
• Rotary Speed：2800r,Min
• Servo Motor Power：2*1kw, 1*1.5kw
• Cutting Length：360-6000mm
• Cutting Width：135mm
• Cutting Height：230mm
• Cutting Angle：45-157.5 Degree Any Angle
• Machine Dimension：7800*1500*2040mm
• Weight：2500kg
• Transport Package：Wooden
• Specification：Saw blade diameter 500mm
• Trademark：Truepro
• Origin：China
• HS Code：846150
• Production Capacity：100sets,Year

Basic Info.

Model NO. CLJB2B-CNC-500*6000 Rotary Speed 2800r/Min Servo Motor Power 2*1kw, 1*1.5kw Cutting Length 360-6000mm Cutting Width 135mm Cutting Height 230mm Cutting Angle 45-157.5 Degree Any Angle Machine Dimension 7800*1500*2040mm Weight 2500kg Transport Package Wooden Specification Saw blade diameter 500mm Trademark Truepro Origin China HS Code 846150 Production Capacity 100sets/Year

Product Description

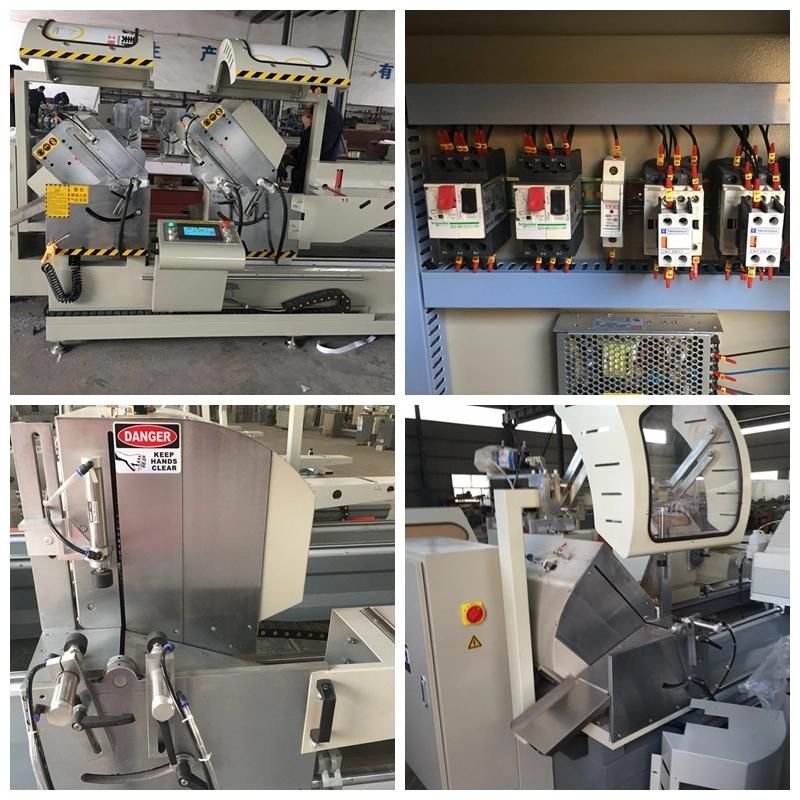

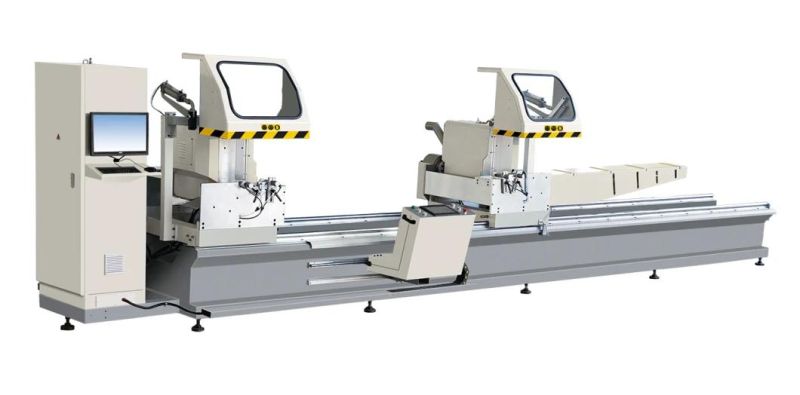

       CNC variable angle double head precision cutting saw for aluminum


Machine feature:
-The machine adopts Europe model with neat appearance and good style.
-The directly connected blades adopt lever-swing cutting type.
-The feeding of the blade is driven by hydraulic damping cylinder, with smooth cutting.
-The imported high precision blade makes the cutting surface more smooth.
-The cutting angle is auto adjustable through the imported servo motor between 45 degree to 157.5 degree.
-Imported control system can accomplish cutting optimization
-Several profile processing dimensions can be input in one time and make continuous cutting.
-The processing dimension can be directly input, the cutting length can be changed without returning the reference point.
-The airproof device under the workable has wonderful crumbs-clears effect.
-The following saw cover keeps it working in the clean environment.
-The profile is clamped by two cylinders in every head, and kept the cutting security.

Parameter:

Brand name	TRUEPRO	Model	CLJB2B-CNC-500*6000
Power supply	380V 50Hz	Cutting motor power	2*2.2kw Rotary Speed: 2800r/min
Servomotor power	2*1kw  1*1.5kw Rotary Speed:4050r/min	Air pressure	0..5-0.8MPa
Air consumption	60L/min	Blade specification	Dia.500*Dia.30*4.4 Z=120(Standard Size)
Cutter feeding speed	stepless speed regulation 0-3m/min	Cutter moving speed	0-20m/min
Cutting length	max 6000mm min 360mm at 90° max 6000mm min 760mm at 45°	Cutting width	135mm
Cutting height	230mm	Cutting angle	45°-157.5° any angle in the range
Repeat locating length tolerance	±0.2mm	Cutting profile surface plane	≤0.10mm
Cutting angle tolerance	±5'	Cutting profile surface roughness	Ra12.5μm
Overall dimension	7800*1500*2040mm	Weight	about 2500kg

Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.




1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
