• Input Voltage：380V 50Hz
• Input Power：2.2kw
• Air Pressure：0.5~0.7MPa
• Air Consumption：150L,Min
• Profiles Width：20~120mm
• Profiles Heighttth：20~120mm
• Groove Width：3±0.20mm
• Groove Depth：0.3±0.15mm
• Overall Dimension：1800*1000*1700mm
• Transport Package：Wooden Box
• Specification：1800*1000*1700mm
• Trademark：YueFeng
• Origin：China
• HS Code：8477800000
• Production Capacity：40 Window Per Day

Basic Info.

Input Voltage 380V 50Hz Input Power 2.2kw Air Pressure 0.5~0.7MPa Air Consumption 150L/Min Profiles Width 20~120mm Profiles Heighttth 20~120mm Groove Width 3±0.20mm Groove Depth 0.3±0.15mm Overall Dimension 1800*1000*1700mm Transport Package Wooden Box Specification 1800*1000*1700mm Trademark YueFeng Origin China HS Code 8477800000 Production Capacity 40 Window Per Day

Product Description

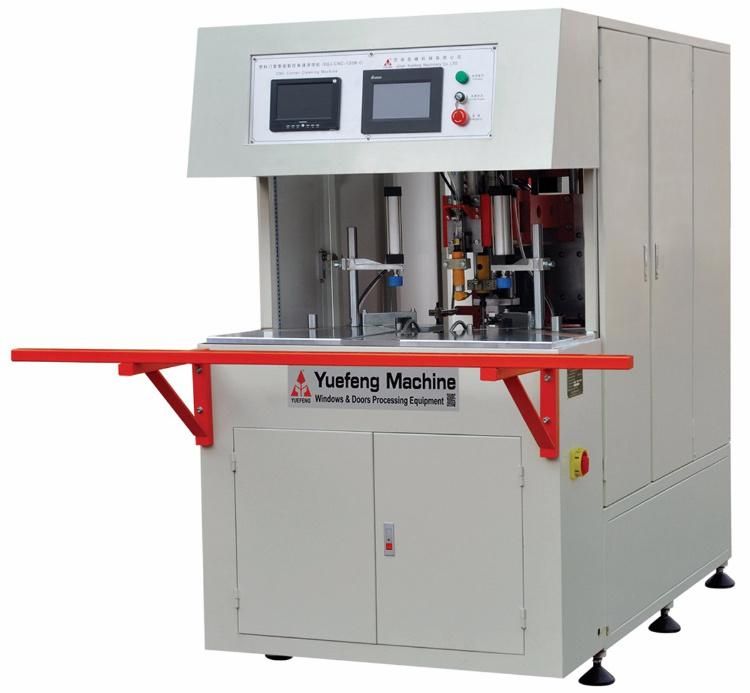

SQJ-CNC-120B-6   CNC Corner Cleaning Machine





1. For PVC profile welding slags cleaning.
2. Can clean multi-shaped welding slags, clean the up/bottom, outside ellipse and the outside
vertical surface, inside corner and sealing groove etc. at the same time.
3. It adopt imported server and advanced LCD touched screen.
4. It can store hundreds of programs, fit for various profile processing.
5. It has characteristics of reliability, high processing quality, high efficiency.

Technical Parameter:

Model	SQJ-CNC-120B-6
Input voltage	380V 50Hz
Input power	2.2 kw
Air pressure	0.5~0.7MPa
Air consumption	150L/min
Profiles width	20~120mm
Profiles height	20~120mm
Groove width	3±0.20mm
Groove depth	0.3±0.15mm
Overall dimension	1800×1000×1700mm

FAQ

1.Are your company a trading one or a factory?
Factory + trade (integration), 36 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating glass equipment and curtain wall equipment.

2.After an order is placed, when to deliver?

♦ Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
♦ Please be aware that our production lead times depend on specific items and item quantities.
3.What about the warranty with after - sales services?
♦ 24 months warranty. Besides,we can help you to solve your problem freely;

♦ After the warranty, the professional after-sale service team will provide perfect technical support,and help customer solve problem encountered while using our product, handles guest problems and complaints in a professional and timely.
4.What about the services and product' quality?
♦ Each machine must be carried out 100% quality examination and test before shipment.

♦ And all machines meet ISO and CE certification.
5. We don't know the machine operation, what should we do?

♦ We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
