• Model NO.：QT8-15
• Power：38kw
• Control：PLC
• Vibration Form：Table and Mould
• Sales After Service：Lifetime
• Transport Package：Nude Packing
• Specification：ISO9001, CE, SGS
• Trademark：hengda
• Origin：Jiangsu, China
• HS Code：84748090
• Production Capacity：300sets,Year

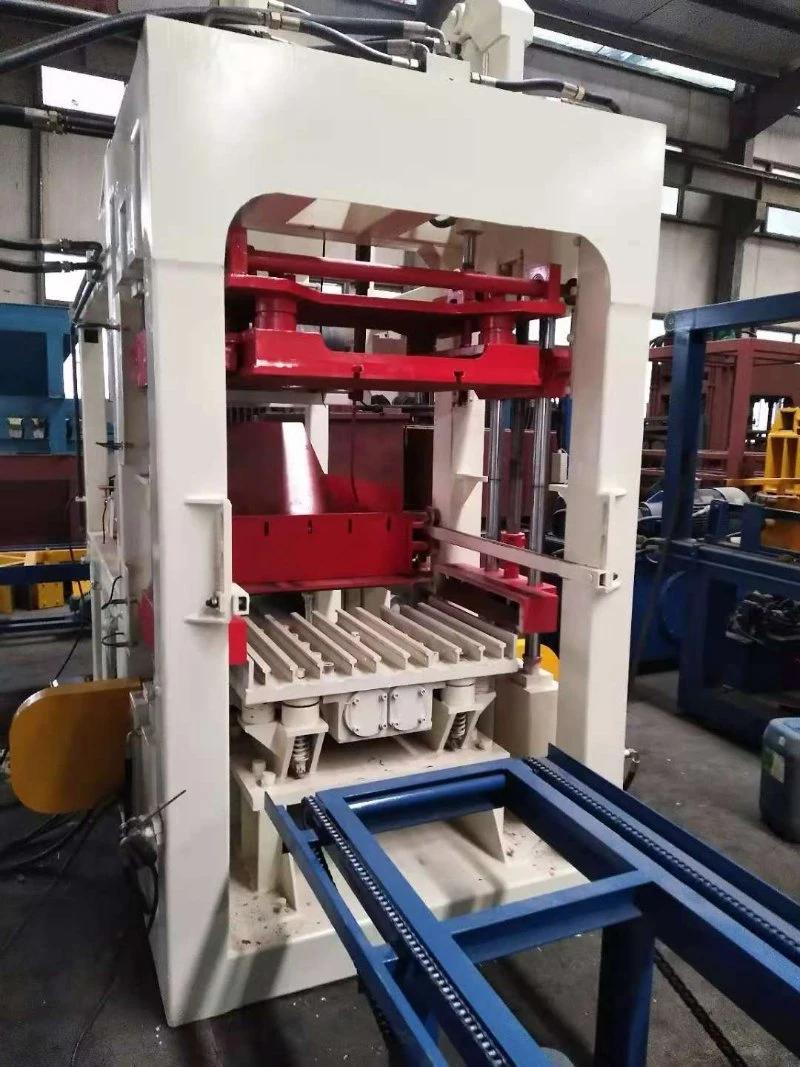

Main Technical Specifications of HDQT8-15  automatic block machine
Cycle Time:
15-20 seconds
Production per Shift
(8 Working Hours):
Hollow Block ( 390x190x190mm ):
11520-15360pcs
Solid Block (220x115x72mm):
43200-57600pcs
Interlock (225x112.5x60mm):
28800-38400pcs
Holland Brick (200x100x60-80mm):
34560-46086pcs
Vibrating Frequency:
2940 rolls/minute or 50 HZ
Vibrating Force:
100 KN
Motors Power:
38 KW
Machine Dimensions:
5568x2060x2968mm
(excluding electrical control box)'
Pallet Size:
1100*680*20mm
Gross Weight:
about 12T
Raw Materials:
crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes
Applied Products:
concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, edgers, kerbstones, grass blocks, slope blocks, interlocking blocks, etc.
Applied Fields:
widely used in buildings, road pavings, squares, gardens, landscaping, city constructions, etc




Advantages Of QT8-15 automatic block machine :

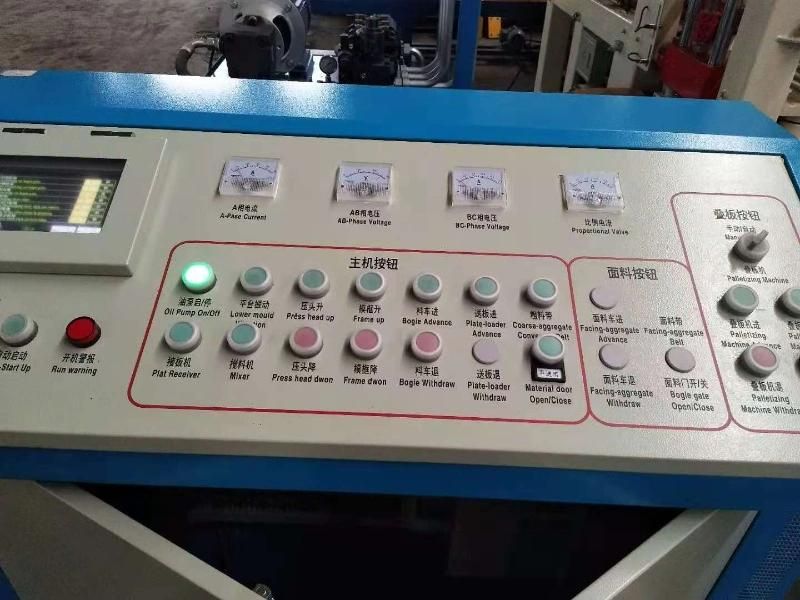

1. Perfect humanization Electrical control system

Siemens PLC with Visualization touch screen provide you a Child operation machine.

2. Frequency Conversional Control Technology:

It guarantees the precise and parallel movement between tamper head and mould, protects the products from transfiguration; increases the production rate by improving the vibrating efficiency, and Power saving: 30%;

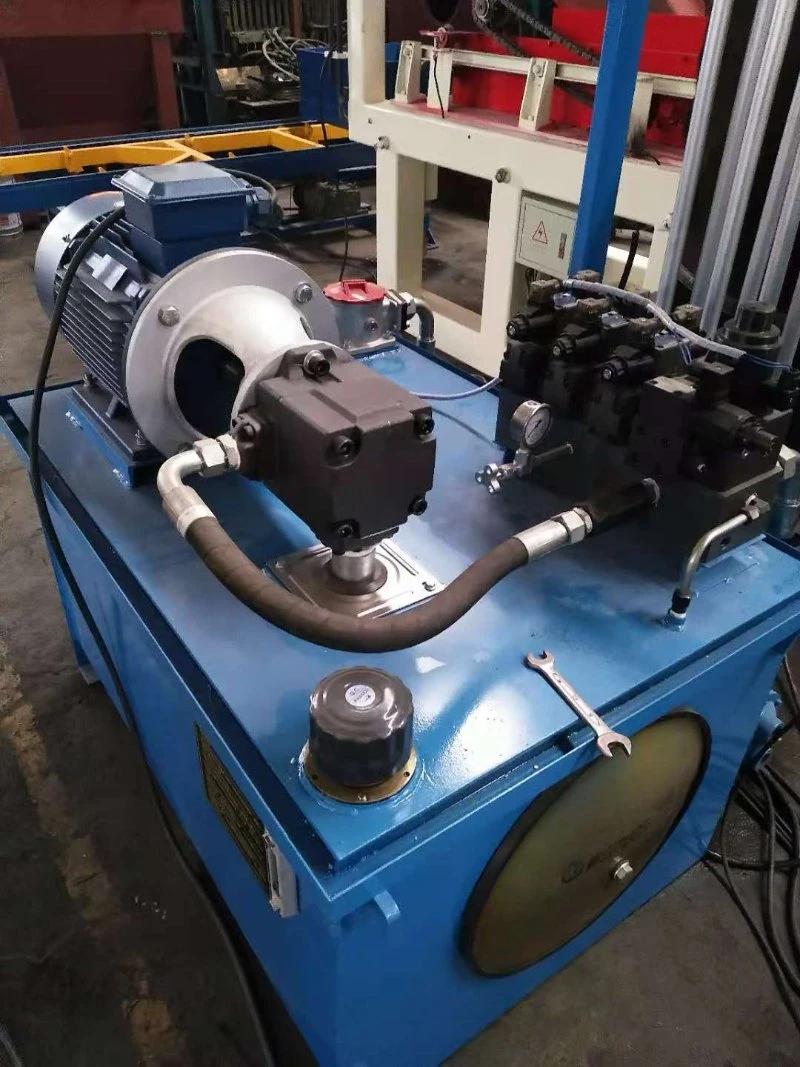

3. Hydraulic System. Make in China, world Quality , and we can provide you the hydraulic motor as you request .

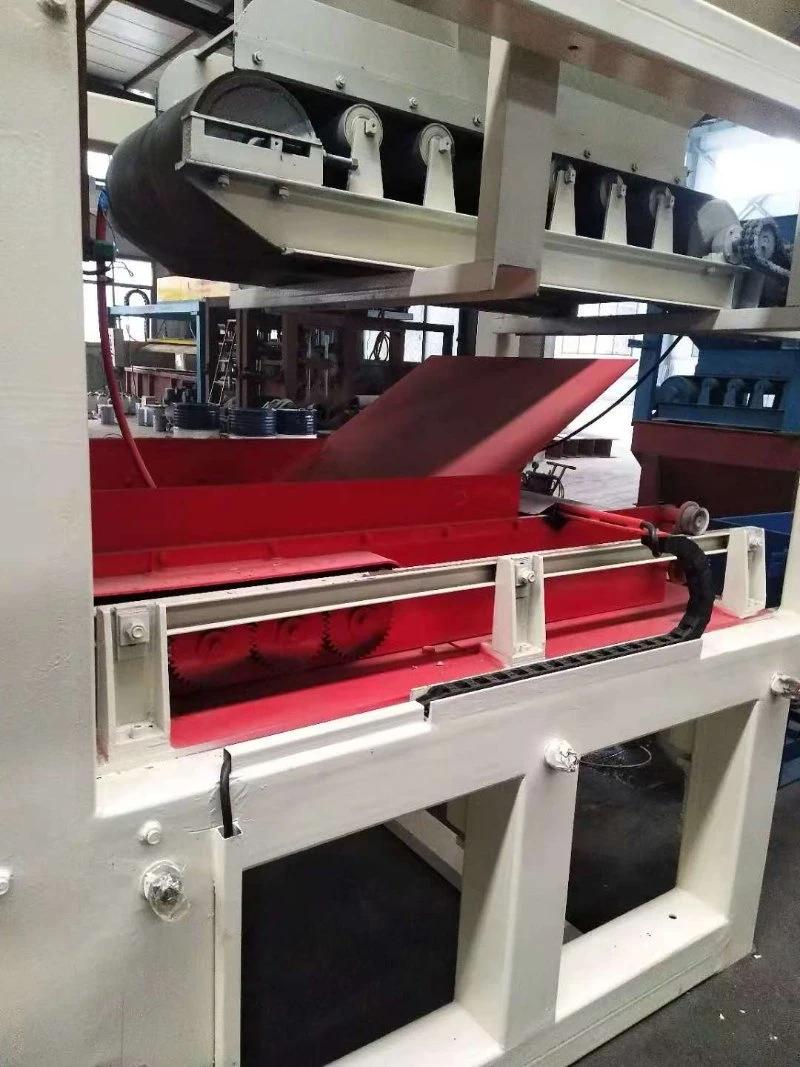

4. Compulsory Feeding system make sure that the density and intensity of the products are guaranteed;

5. Various product scope:
 It produces various color-face bricks (layered material feeding),through-body tiles,lock linkage blocks, road curb bricks, hydraulic blocks,hollow blocks, perforated bricks, and standard bricks etc.

Buying tips



We have two kinds of brick machine, one produce automatic clay brick machine, another produce automatic block machine , when you want to buy, please tell me



1. You need clay brick machine or concrete block  machine?



2. Your block size( length, width and height)



3.Your block picture and block production
