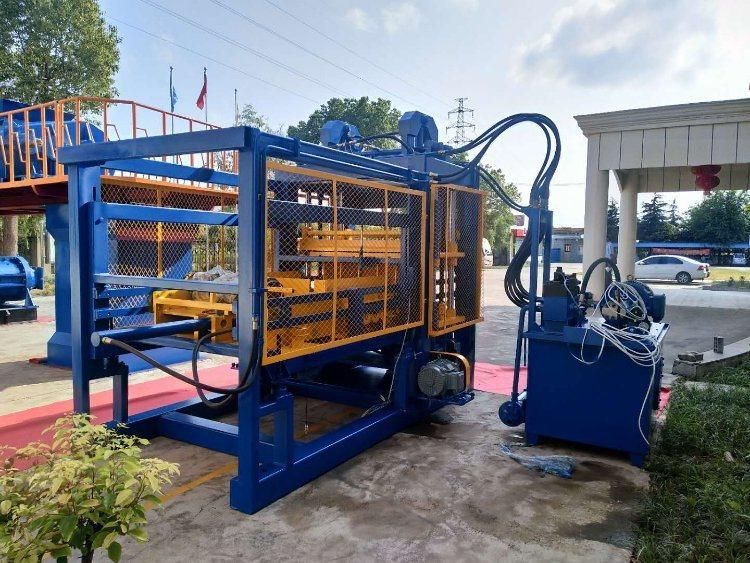

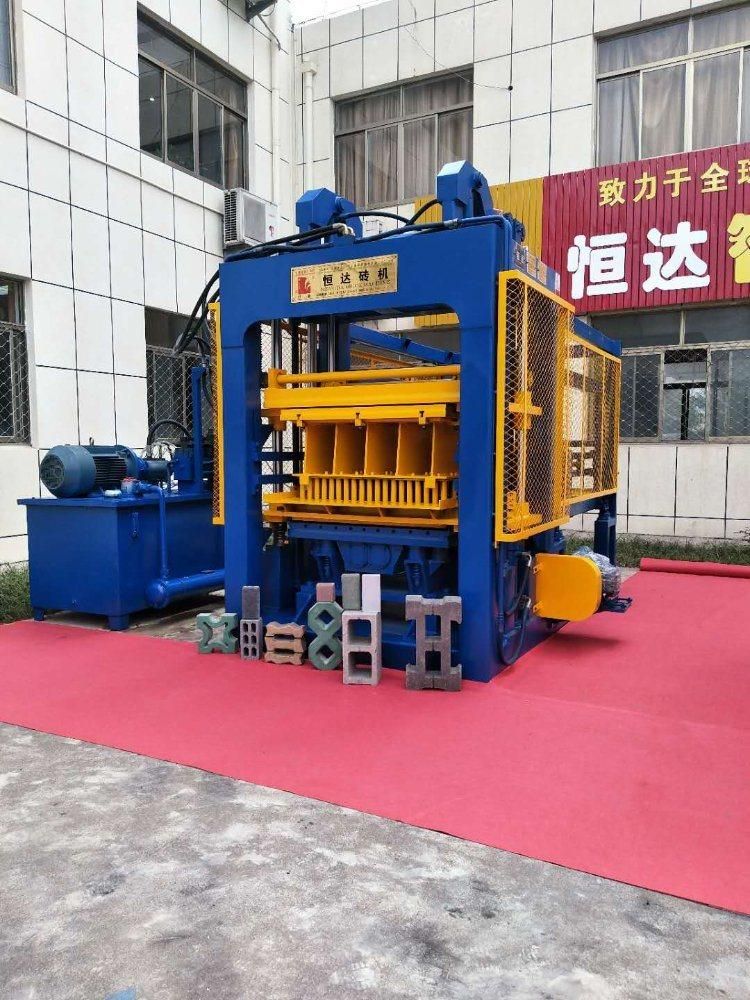

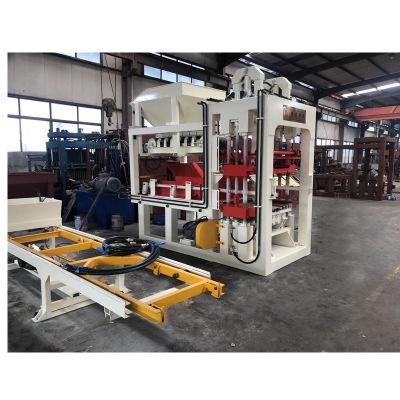

Construction Machinery Automatic Concrete Block Making Machine (QT10-15)

Nantong Hengda Non-Burned Machinery Engineering Co., Ltd.
  • Certification：ISO9001: 2000, CE, SGS
  • Customized：Customized
  • Automatic Grade：Automatic
  • Type：Block Making Machine
  • Weight：15t
  • Power：48kw

Base Info

  • Model NO.：QT10-15
  • Control：PLC
  • Vibration Form：Table and Mould
  • Sales After Service：Lifetime
  • Method：Hydraulic Pressure
  • Processing：Brick Production Line
  • Product：Concrete
  • Brick Raw Material：Concrete
  • Automation：Automatic
  • Transport Package：Container
  • Specification：ISO9001 CE
  • Trademark：hengda
  • Origin：Jiangsu, China
  • HS Code：84748090
  • Production Capacity：300 Sets,Year

Description


Production per mould
10pcs/mould (Hollow block: 390×190×190mm)
48pcs/mould (Solid block: 240×115×53mm)
24pcs/mould (Interlocking block: 225×112.5×60mm)
35pcs/mould (Holland brick: 200×100× 60-80mm)
Cycle time
15-25 seconds(Depending on product type)
Production per shift
(8 working hours)
Hollow block (400×200×200mm): 14400-19200pcs
Solid block (240×115×53mm): 77760-92160pcs
Interlocking block: 240×115×90mm): 31104-46080pcs
Holland brick (200×100×60-80mm): 40320-50400pcs.
Vibration frequency
2940 -3600rolls/minute or 50Hz
Vibrating force
100kN
Motors power
48kw
Volume of hoppers
Main material: 900L
Face material: 750L
PVC Pallet size
1100×850×22mm
Gross weight
9.0 T (without face mix device)
12T (with face mix device)
Raw materials
Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite and other industrial waste.
Applicable products
Concrete blocks, solid/hollow/cellular masonry products, paving stones with or without face mix, garden and landscaping products, slabs, curbstones, grass blocks, slope blocks, interlocking blocks, etc.
Applied fields
Suitable for buildings, road paving, squares, gardens, landscaping, city constructions, etc.
Construction Machinery Automatic Concrete Block Making Machine (QT10-15)
Construction Machinery Automatic Concrete Block Making Machine (QT10-15)
Construction Machinery Automatic Concrete Block Making Machine (QT10-15)Construction Machinery Automatic Concrete Block Making Machine (QT10-15)Construction Machinery Automatic Concrete Block Making Machine (QT10-15)Construction Machinery Automatic Concrete Block Making Machine (QT10-15)

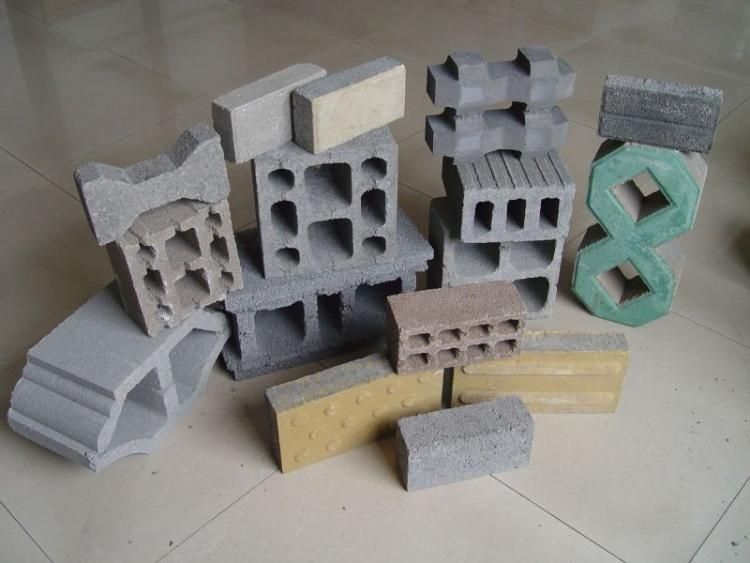

Block Samples
Construction Machinery Automatic Concrete Block Making Machine (QT10-15)

We are brick making machine and  block making machine manufacturer, welcome to inspect our factory.
