Aluminum Cutting Machine for 45 Degree Window Profile
JINAN YUEFENG MACHINERY CO., LTD.- Condition：New
- Certification：ISO, CE
- Automatic Grade：Automatic
- CNC or Not：not CNC
- Voltage：380V
- Model：Ljz2-450*4200
Base Info
- Model NO.：LJZ2-450×4200
- Input Voltage：380V 50Hz
- Input Power：3.0kw
- Air Pressure：0.5~0.8MPa
- Air Consumption：220L,Min
- Spindle Speed：3200r,Min
- Cutting Length：310~4200mm
- Cutting Width：10~320mm
- Cutting Height：10~100mm
- Cutting Angle：45 Degree
- Transport Package：Plastic Film or Depends on Customers
- Specification：5500 * 1900 * 1600mm
- Trademark：Yuefeng
- Origin：Jinan Shandong, China
- HS Code：8477800000
- Production Capacity：15 Sets ,Month
Description
Basic Info.
Model NO. LJZ2-450×4200 Input Voltage 380V 50Hz Input Power 3.0kw Air Pressure 0.5~0.8MPa Air Consumption 220L/Min Spindle Speed 3200r/Min Cutting Length 310~4200mm Cutting Width 10~320mm Cutting Height 10~100mm Cutting Angle 45 Degree Transport Package Plastic Film or Depends on Customers Specification 5500 * 1900 * 1600mm Trademark Yuefeng Origin Jinan Shandong, China HS Code 8477800000 Production Capacity 15 Sets /MonthProduct Description

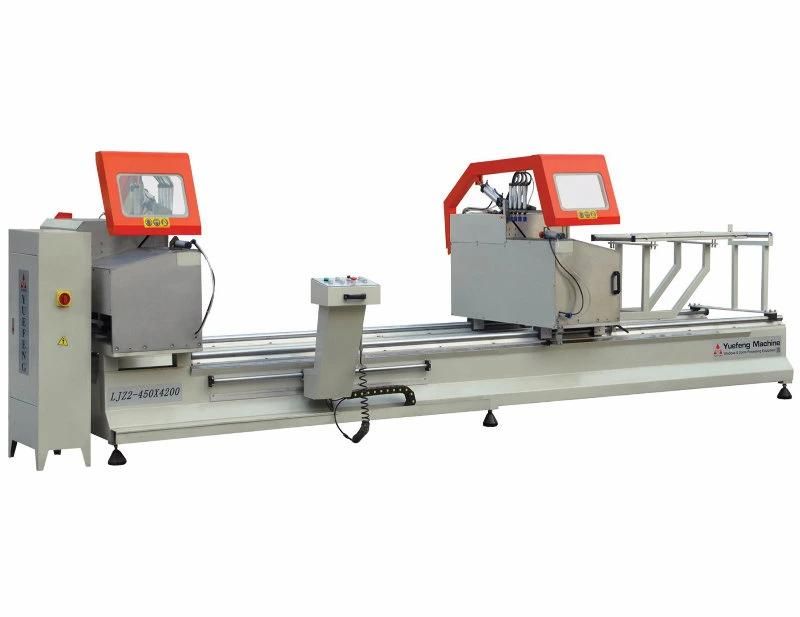

LJZ2-450×4200 Double Mitre Saw
Product Details
> Apply to aluminum and PVC profiles for 45 degree cutting.
> Imported linear bearing guide results in highly precise processing.
> Super big worktable enables to cut several profiles in one time.
> Two heads can work independently or together.
> Working with a single head mitre saw, highly improves the efficiency.
Technical Parameter:
| Model | LJZ2-450×4200 |
| Input voltage | 380V 50Hz |
| Input power | 3.0Kw |
| Air pressure | 0.5~0.8MPa |
| Air consumption | 220L/min |
| Spindle speed | 3200r/min |
| Cutting length | 310~4200mm |
| Cutting width | 10~320mm |
| Cutting height | 10~100mm |
| Cutting angle | 45° |
| Saw feeding speed | 0~3m/min |
| Saw blade standard | φ450×4×φ30×Z120 |
| Overall dimension | 5500×1900×1600mm |
