Building Material Making Machinery

Ce and UL Certificated WPC PVC Foam Board Flooring Substrate Conical Double Screw Extrusion Production Line

Wuxi Boyu Plastic Machinery Co., Ltd.
  • Product Type:Extrusion Molding Machine
  • Automatic Grade:Automatic
  • Power Source:Electric
  • Screw Design:Double-Screw
  • Certification:CE, ISO
  • Condition:New

Base Info

  • Model NO.:BYSJ
  • Customized:Customized
  • Type:Sheet Extruder
  • Plastic Processed:PVC
  • Feeding Mode:One Feed
  • Assembly Structure:Separate Type Extruder
  • Screw:Twin-Screw
  • Engagement System:Intermeshing
  • Screw Channel Structure:Deep Screw
  • Exhaust:Exhaust
  • Automation:Automatic
  • Computerized:Computerized
  • Transport Package:PVC Film
  • Specification:CE SGS
  • Trademark:BOYU
  • Origin:Wuxi
  • HS Code:8477209000
  • Production Capacity:30 Machine Lines , Month

Description

Basic Info.

Model NO. BYSJ Customized Customized Type Sheet Extruder Plastic Processed PVC Feeding Mode One Feed Assembly Structure Separate Type Extruder Screw Twin-Screw Engagement System Intermeshing Screw Channel Structure Deep Screw Exhaust Exhaust Automation Automatic Computerized Computerized Transport Package PVC Film Specification CE SGS Trademark BOYU Origin Wuxi HS Code 8477209000 Production Capacity 30 Machine Lines / Month

Product Description

CE and UL Certificated WPC PVC Foam Board Flooring Substrate
Conical Double Screw Extrusion Production Line


 Ce and UL Certificated WPC PVC Foam Board Flooring Substrate Conical Double Screw Extrusion Production Line



I.Main Designing Parameter of production line

  1.1 Power condition:380V/ 3phase/50HZ (or customized)
  1.2 Finish board specification:L=980mm;        Thickness δ=1.0~9.0mm
  1.3 Line speed: 0.6-8m/min             Capacity:6~12Tons/24hour
   1.4 Material:PVC+CACO3
        Proportion of  PVC resin and calcium carbonate powder PV= 1 :2~3

II.Equipment composition list of production line

 2.1  SJSZ80/156 twin screw extruder         one set
 2.2   Material mixing and feeding system     1 unit
2.3  PVC Foam extrusion module                  1 set (3-22mm thickness )
2.4  Mat setting machine                                1 set
2.5   Cooling roller brackets                           1 unit
2.6   8 Pairs (16 roller) traction machine        1 set
2.7   Plank Shearing machine                        1 set
2.8    Edge trimming device                           1 set
2.9   Stacking Machine                                  1 set
2.10  Electric Control System                        1 unit

III.Advantages of BOYU WPC Production Machine Line :

1.PLC Computer automatic control system
2. Adopted International famous brand for all electric components
3.Synchronization control system to ensure main extrusion speed can synchronous  with haul-off speed to avoid board break occurring
4.Screw fracture prevention control system ( A software system to control and adjust the screw running speed)
5.Auto board stacking system (save labors)
6.Anti blocking mold system
7.Vacuum loading and dust collector system

IV.Pre-sale service:
1.To provide information and market research,to provide consultation,to provide many kinds of conveniences and market service,etc. Products: WPC Foam Board Machine...
2.The main purpose of pre-sales service is to help customers make the project planning and system requirements analysis. Make our products maximum to meet clients' requirements. Also play the greatest overall economic benefits of customers' investment.

V.After-sale service:
1. Making pre-shipment trial inspection for customers.
2.To provide the formulas and technologies of relevant products and the information of chemical materials manufactories.
3.To direct technology aspect of relevant use according to customers' requirements
4.To provide technical training for clients' employees.
5.To be responsible for maintenance service, door-to-door service under the necessary circumstance.

VI. BoYu's Advantages
Ce and UL Certificated WPC PVC Foam Board Flooring Substrate Conical Double Screw Extrusion Production Line


VII. BoYu's Certificate and Patents
Ce and UL Certificated WPC PVC Foam Board Flooring Substrate Conical Double Screw Extrusion Production LineCe and UL Certificated WPC PVC Foam Board Flooring Substrate Conical Double Screw Extrusion Production Line


    BoYu's United States Patent for EIR (on-line synchronization Embossing System)

Ce and UL Certificated WPC PVC Foam Board Flooring Substrate Conical Double Screw Extrusion Production Line


Ce and UL Certificated WPC PVC Foam Board Flooring Substrate Conical Double Screw Extrusion Production Line

             BoYu's CE Certification of Conical twin screw extruder and parallel twin screw extruder

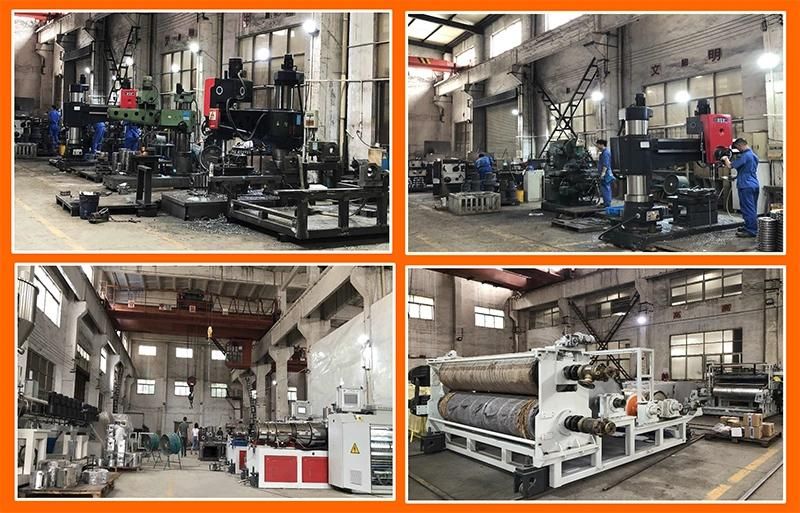

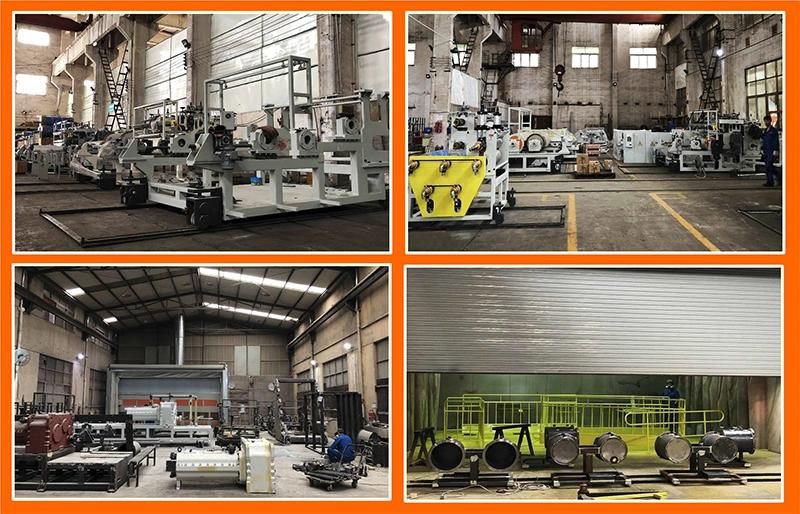

VII. BoYu's production workshops

Ce and UL Certificated WPC PVC Foam Board Flooring Substrate Conical Double Screw Extrusion Production Line
Ce and UL Certificated WPC PVC Foam Board Flooring Substrate Conical Double Screw Extrusion Production Line
