• Model NO.：LXDB-250WG
• Origin：Jinan, Shandong, China
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. LXDB-250WG Origin Jinan, Shandong, China Production Capacity 100 Sets Per Month

Product Description

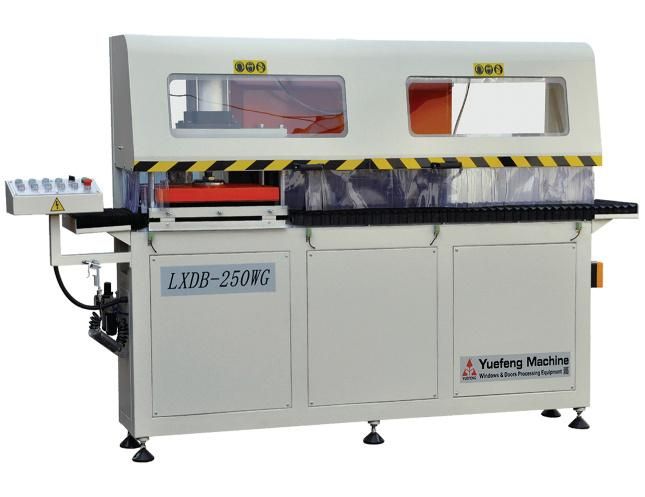

LXDB-250WG   End Milling Machine  Used for aluminum & curtain wall profiles' end processing, and suitable for various profiles.
Process multi-piece profiles in one clamp, high efficiency.
Convenient tool adjustment, can meet different processing requirement.
It can complete angular milling, one group of miller can be adjusted between angles ±45
Rack and gear transmission adopted in the feeding system, gives more stable.
It has features of easy operation, reliable performance, advanced technique and convenient maintenance.Technical Parameter:

Model	LXDB-250WG
Input voltage	380V 50Hz
Input power	9.5 Kw
Air pressure	0.5~0.8MPa
Air consumption	180L/min
Motor rotation speed	2800r/min
Worktable range	0~1400mm
Max processing hole	40mm
Milling cutter diameter	φ250mm /φ300mm
Adjustment range	0~85mm
Overall dimension	3000×1200×1700mm
