Building Material Making Machinery

Roller Shutter Slats Door Roll Forming Machines for Sale

Cangzhou Nexus Machinery Co., Ltd.
  • Warranty:1 Year
  • Certification:CE, ISO9001
  • Customized:Customized
  • Condition:New
  • Control Type:Electric
  • Automatic Grade:Automatic

Base Info

  • Prodcut Name:Roller Shutter Slats Door Roll Forming Machines
  • Coil Material Thickness:0.3-1.5mm
  • Processing Material:Galvanized Steel
  • Roller Material:Cr12MOV
  • Can Formed Material:Gi,Ai
  • Speed:8-15m,Min
  • Diameter of Shaft:40mm
  • Transport Package:1.Control Box and Easy Damaged Parts:Protective PA
  • Trademark:Nexus Machinery
  • Origin:Cangzhou
  • Production Capacity:10

Description

No.                   Item Specification    1    Steel coil Width

  Customized

 Material Ppgi/gi/gl Thickness



0.7-1.0mm

0.7-1.2mm

 HardnessNormal hardness   2       Forming Frame300-450mm Height Stations

As design of drawing

Main: 12 stations

 Rollers

High grade No 45# steel with

hard 0.05mm chromed

 ShaftHigh grade No 45# steel Diameter of shaft

As design of drawing

Main: 50mm

 Chain Main: 1-1.5inch   3    Control PLC control China/Taiwan/Japan/Germany brand Main motor Main: 4kw Language English or as your request    4   Cutting Cutter High grade Cr12 steel Cutting system Hydraulic Hydraulic pump Main: 3kw Cutter frame Steel plate welding    5   Decoiler Manual 800Kg    6   Product Receiving table Manual

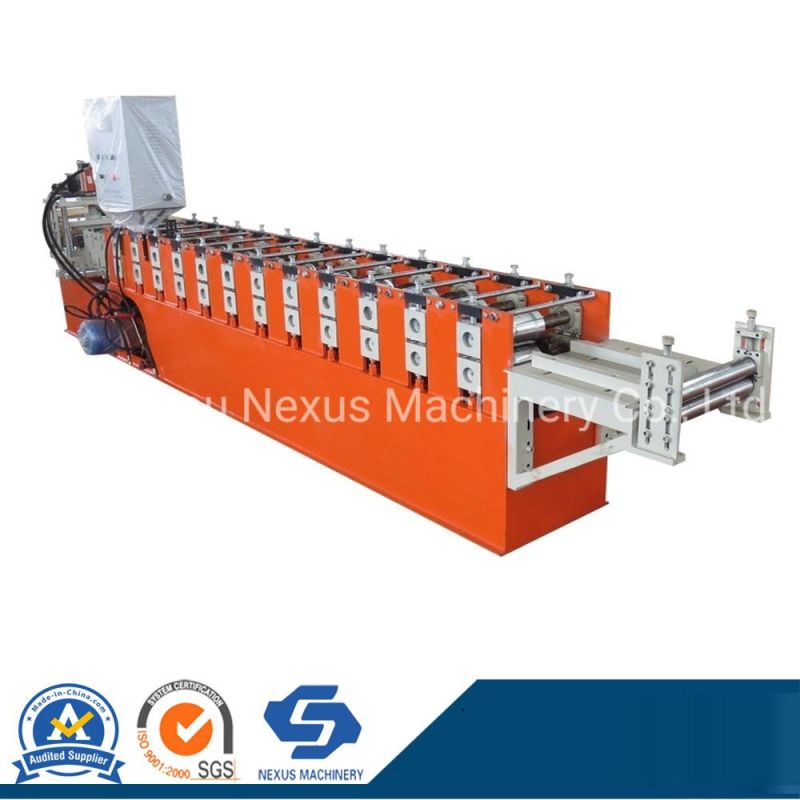

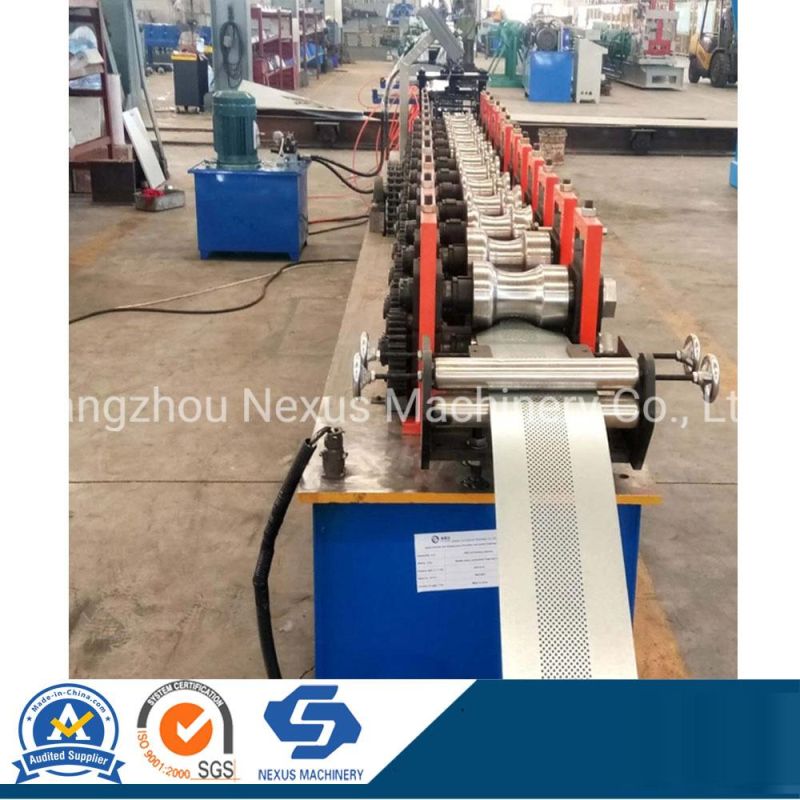

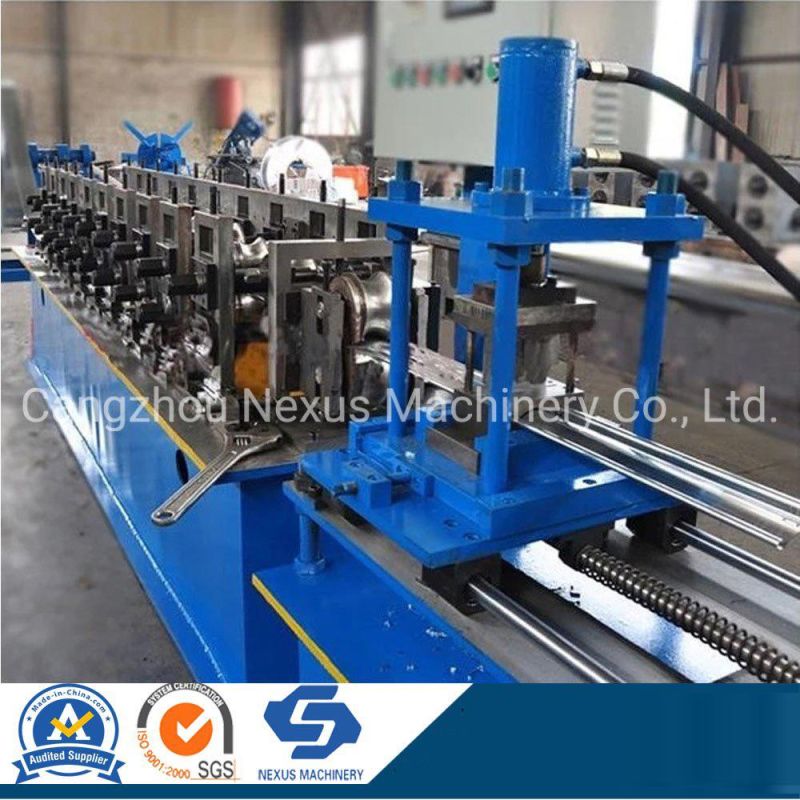

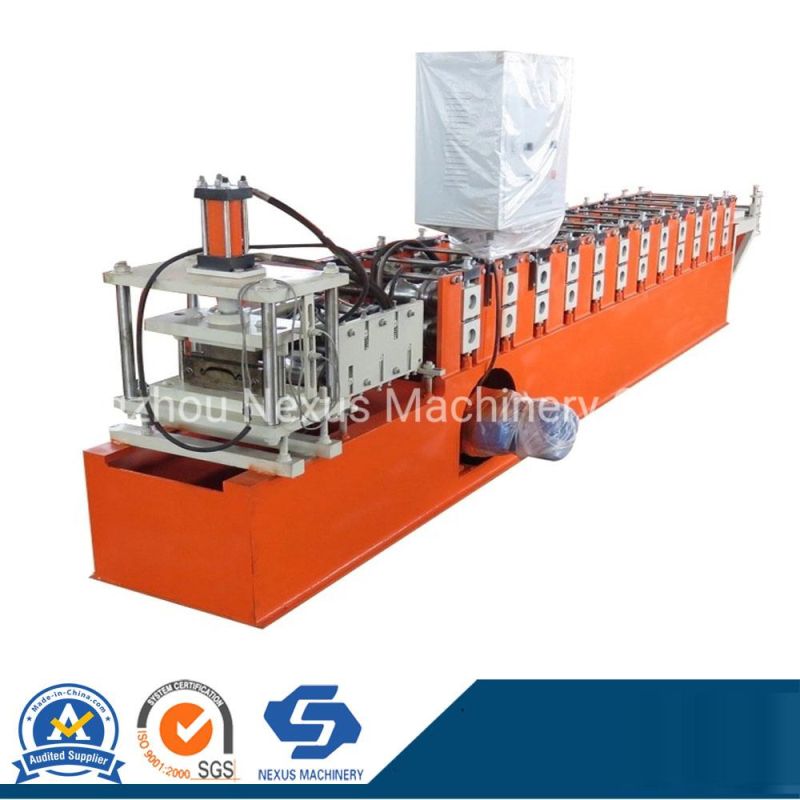

Photo for Roller Shutter Slats Door Roll Forming Machines For Sale:
Roller Shutter Slats Door Roll Forming Machines for Sale

Roller Shutter Slats Door Roll Forming Machines for Sale
Roller Shutter Slats Door Roll Forming Machines for Sale
Roller Shutter Slats Door Roll Forming Machines for Sale
Roller Shutter Slats Door Roll Forming Machines for Sale


FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made without 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
