High Accuracy Welding Machine for UPVC Window and Door
JINAN YUEFENG MACHINERY CO., LTD.- Condition：New
- Certification：ISO, CE
- Automatic Grade：Automatic
- CNC or Not：not CNC
- Voltage：220V
- Input Power：2.5kw
Base Info
- Model NO.：SHZ2G-120x3600
- Air Pressure：0.4~0.6MPa
- Air Consumption：100L,Min
- Welding Length：400~3600mm
- Welding Height：20~120mm
- Overall Dimension：4300X950X1700mm
- Transport Package：According to Your Requirements
- Trademark：YUEFENG
- Origin：Jinan
- HS Code：8477800000
Description
Basic Info.
Model NO. SHZ2G-120x3600 Air Pressure 0.4~0.6MPa Air Consumption 100L/Min Welding Length 400~3600mm Welding Height 20~120mm Overall Dimension 4300X950X1700mm Transport Package According to Your Requirements Trademark YUEFENG Origin Jinan HS Code 8477800000Product Description

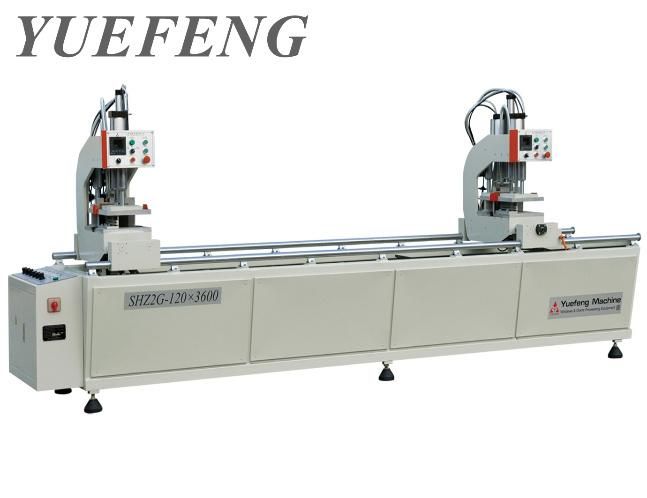

SHZ2G-120×3600 Two-head Welding Machine
The machine applies to PVC window and door processing;
It can process shapes of and window mullion etc.
LM linear kinematic pair and PLC control system adopted result high accuracy and efficiency.
Technical Parameter:
| Model | SHZ2G-120×3600 |
| Input voltage | 220V 50Hz |
| Input power | 2.5Kw |
| Air pressure | 0.4~0.6MPa |
| Air consumption | 100L/min |
| Welding length | 400~3600mm |
| Welding height | 20~120mm |
| Overall dimension | 4300×950×1700mm |
