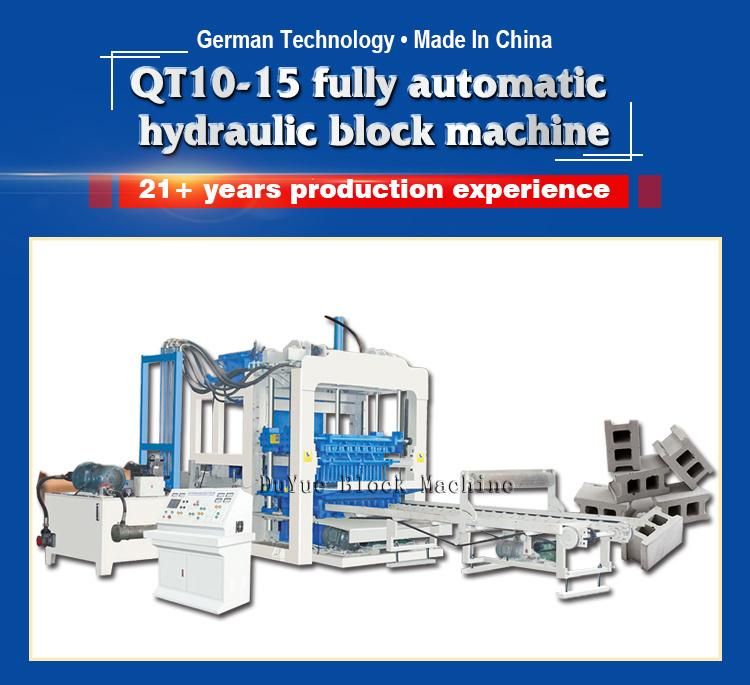

Qt10-15 Fully-Automatic High Productivity Brick Making Machine Cement Block Manufacturing Machine
Linyi Duyue Import and Export Co., Ltd.- Certification：CE, ISO
- Customized：Customized
- Automatic Grade：Automatic
- Type：Hydraulic Shock
- After-Sales Service Provided：Engineers Available to Service Machinery Overseas
- Forming Cycle：15s
Base Info
- Model NO.：Qt10-15
- Molding Area：1196*880mm
- Power of Host Machine：37kw
- Viberation Force：100kn
- Dimension of Host Machine：3500*2300*2930mm
- Weight of Host Machine：9.8t
- Mixer Model：Js750
- Water Consumption：10-20t,Day
- Pallet Size：1300*900*30mm
- Product Name：Qt10-15 Automatic Brick Paving Machinery Price
- Electricity：380V,50Hz
- Transport Package：Container
- Specification：9600*1600*2700mm
- Trademark：DUYUE
- Origin：China(Mainland)
- HS Code：8474802000
- Production Capacity：100 Sets,Year
Description
Basic Info.
Model NO. Qt10-15 Molding Area 1196*880mm Power of Host Machine 37kw Viberation Force 100kn Dimension of Host Machine 3500*2300*2930mm Weight of Host Machine 9.8t Mixer Model Js750 Water Consumption 10-20t/Day Pallet Size 1300*900*30mm Product Name Qt10-15 Automatic Brick Paving Machinery Price Electricity 380V/50Hz Transport Package Container Specification 9600*1600*2700mm Trademark DUYUE Origin China(Mainland) HS Code 8474802000 Production Capacity 100 Sets/YearProduct Description
Production description

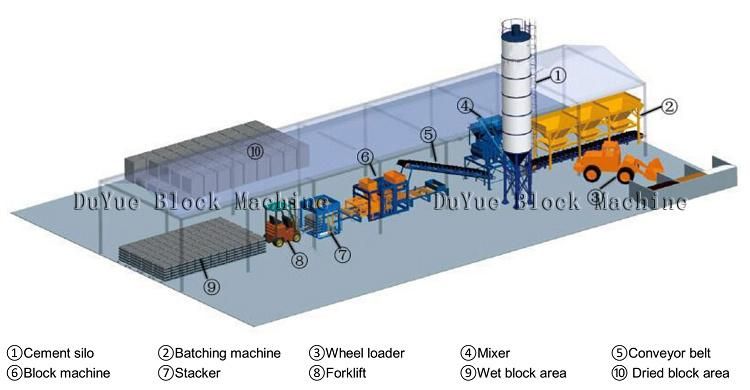

The QT10-15 block production line is a fully automatic manufacturing unit, with a production capacity of pieces from 60 to 230mm height, allowing the manufacturing of a wide range of products for building walls, roads, garden, pavement, etc.In this unit is used a series of bamboo pallets with dimensions of 1300 x 900 x 30 therefore allowing the manufacturing of a large number of heavy weight pieces by cycle.To attain such performances the vibration becomes one of the essential points of the equipment.To guarantee a homogeneous vibration in all the worktable with the guarantee of a strong compaction of the concrete, duyue has the vibration system specially conceived to compete with the highest quality standards worldwide, this vibration system is not only an innovation but a standard for all our high performance vibropresses.Its strong structure and certified materials allow the use of very high compaction forces of approximately 100KN, the hydraulic unit that comes standard with speed control modules allows extremely fast movements with very soft transitions therefore ensuring a longer durability and low maintenance of the equipment.

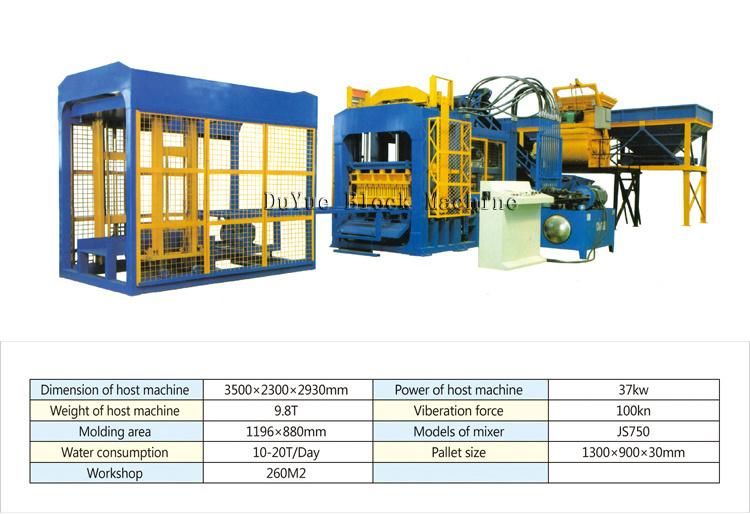

Main technical parameters

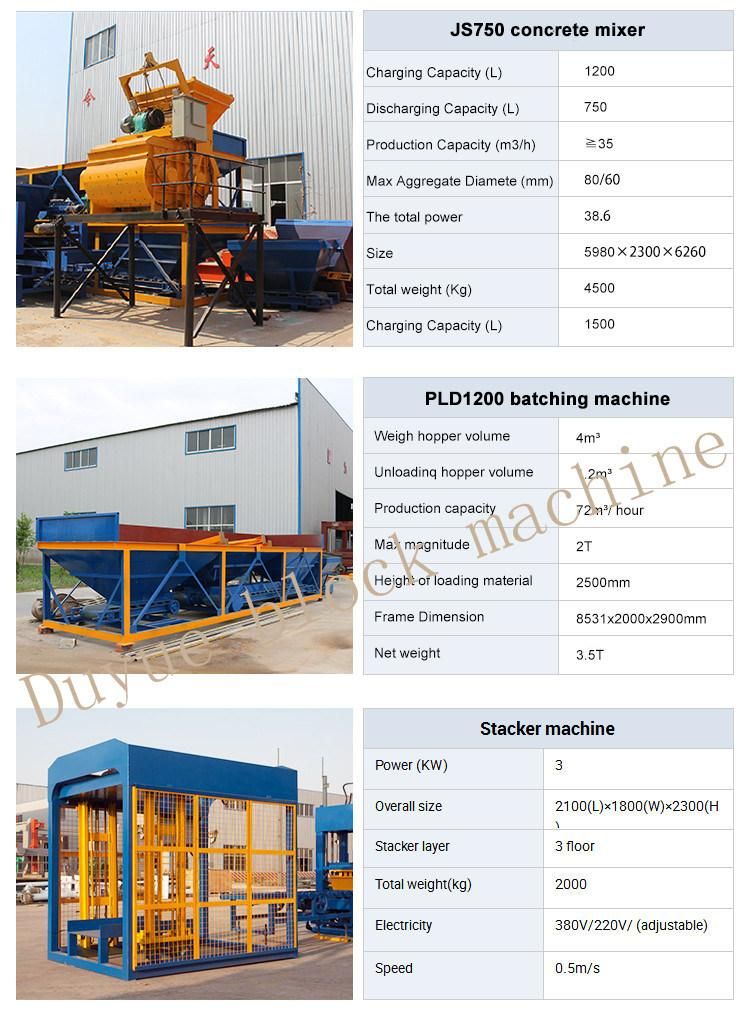

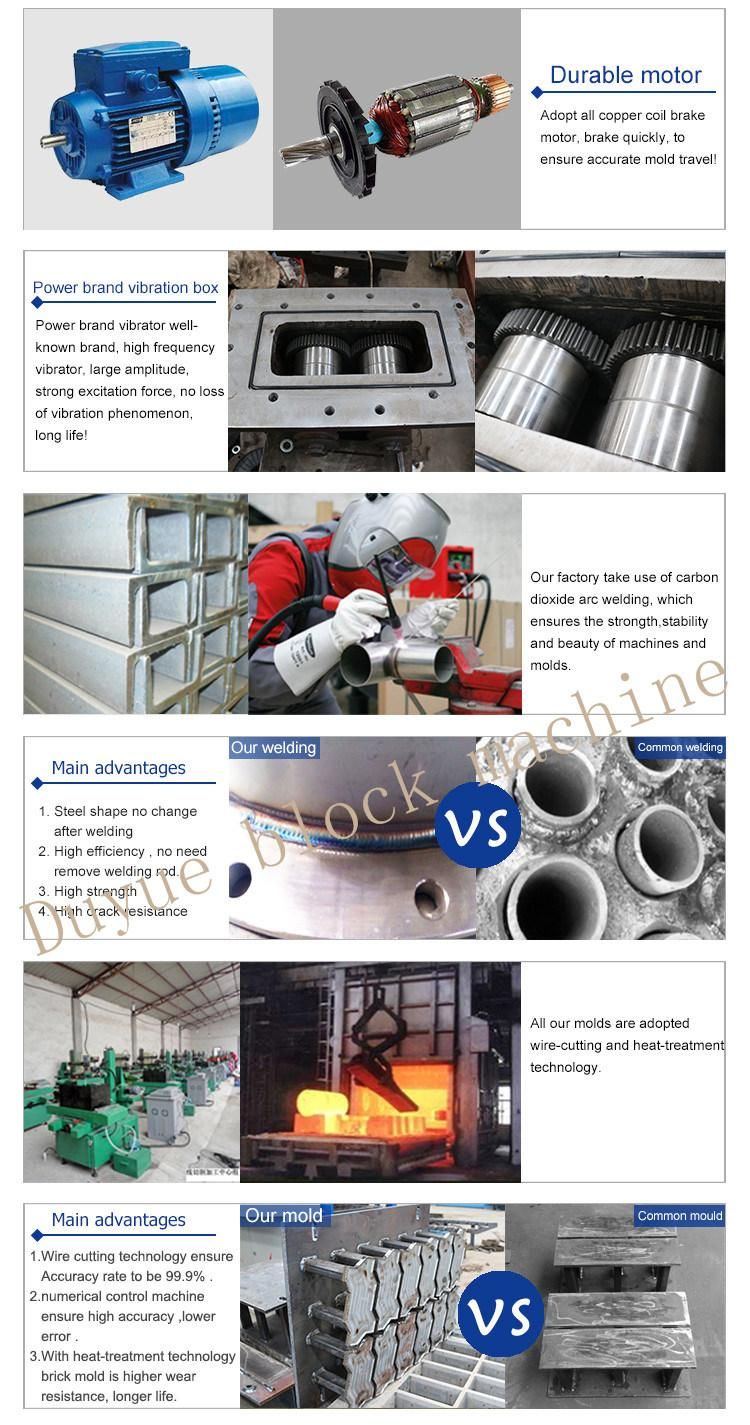

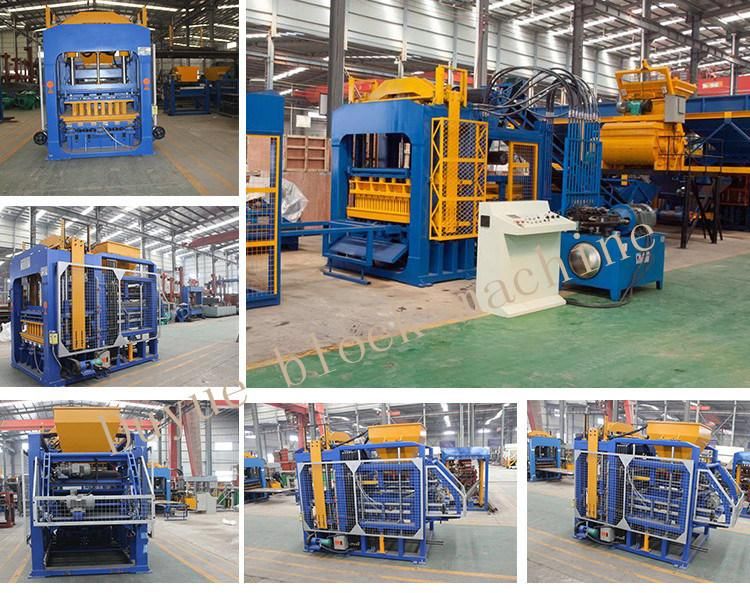

QT10-15 block machine details information

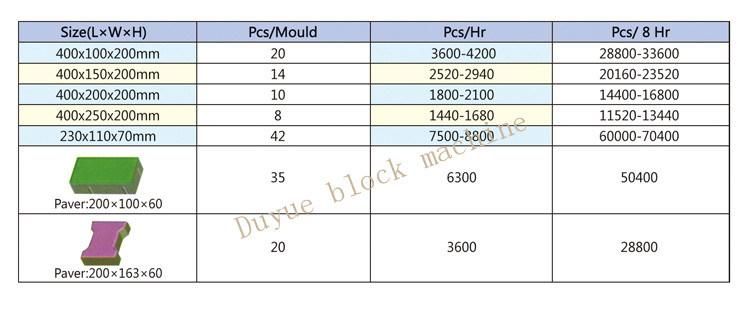

QT10-15 production capacity
DUYUE company profile
