• Model NO.：Qt4-15
• Type：Hydraulic Shock
• Total Weight：6500kg
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Vibration：4000-4800,Minute
• Color：Customized
• Rate Pressure：16MPa
• Pallets Size：900X550X30mm
• Transport Package：Container
• Specification：3700*1500*2600mm
• Trademark：DUYUE
• Origin：China
• HS Code：8474802000
• Production Capacity：50 Sets Per Month
• Package size per unit product：4300.00cm * 1850.00cm * 2600.00cm
• Gross weight per unit product：5400.000kg

Basic Info.

Model NO. Qt4-15 Type Hydraulic Shock Total Weight 6500kg After-Sales Service Provided Engineers Available to Service Machinery Overseas Vibration 4000-4800/Minute Color Customized Rate Pressure 16MPa Pallets Size 900X550X30mm Transport Package Container Specification 3700*1500*2600mm Trademark DUYUE Origin China HS Code 8474802000 Production Capacity 50 Sets Per Month

Packaging & Delivery

Package size per unit product 4300.00cm * 1850.00cm * 2600.00cm Gross weight per unit product 5400.000kg

Product Description

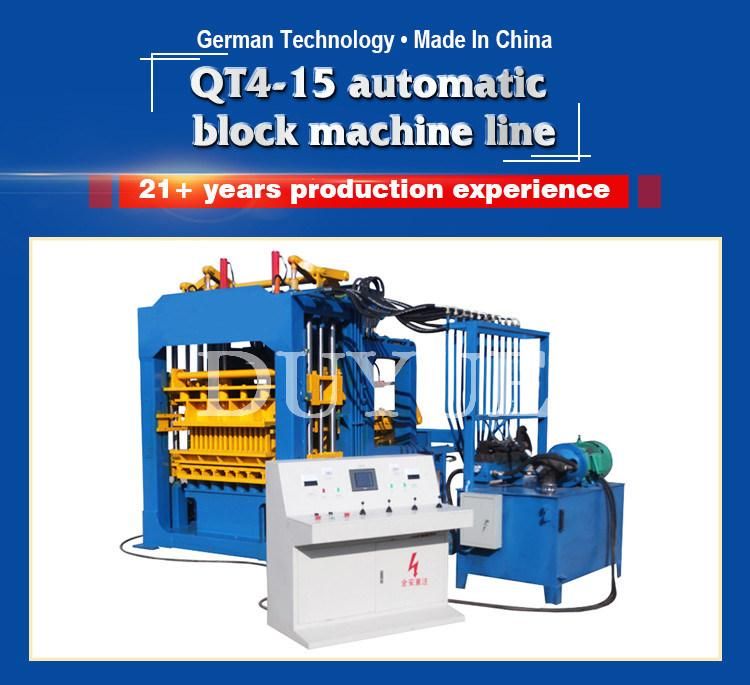

Qt4-15 automatic block making machine   description

1.PLC control system and screen display is from Germany Siemens, ang electrical components is from Schneider , it is manpower saving for its PLC control (Siemens), automatic material feeding, automatic  pallet conveyance, automatic leading-out and hydraulic molding, it can work automatically round and round.
2.The hydraulic elements are from Taiwan ASHUN. Circulating water cooling system ensure the machine can work for a long time.
3.Hydraulic pressure and vibration work together to achieve high strength and high density of the bricks.
4.Synchronous demolding system. Themould is driven by gears and racks, it ensures the mould move accurately and stably, so the bricks will be given perfect shape witn precise measurements.
5.It use heat-resistant motor which can continue working freely under 130ºC, it is very durable.
6.Multiple Function: Standrad brick, hollow block, paving brick, curb stone, grass land brick etc be made by changing moulds.

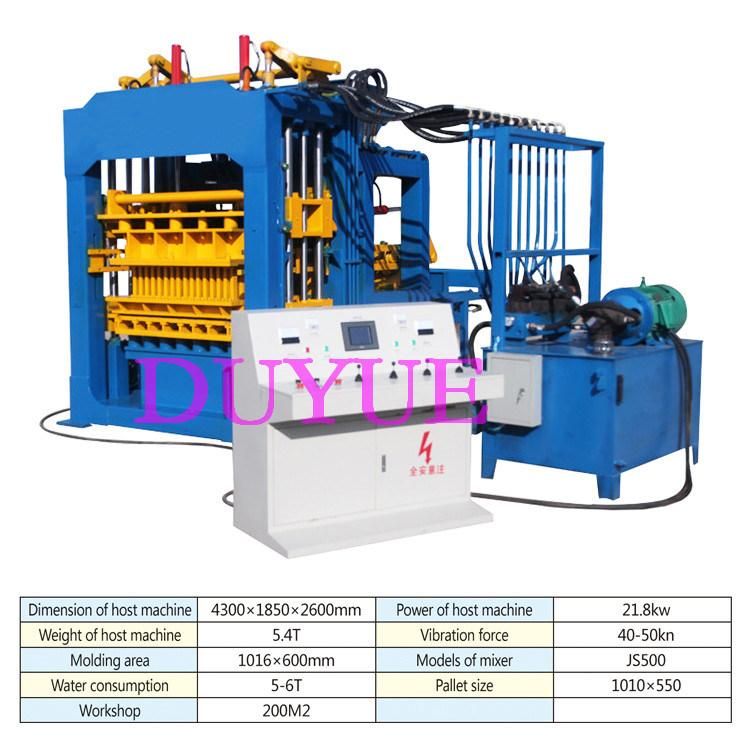

Main technical parameters

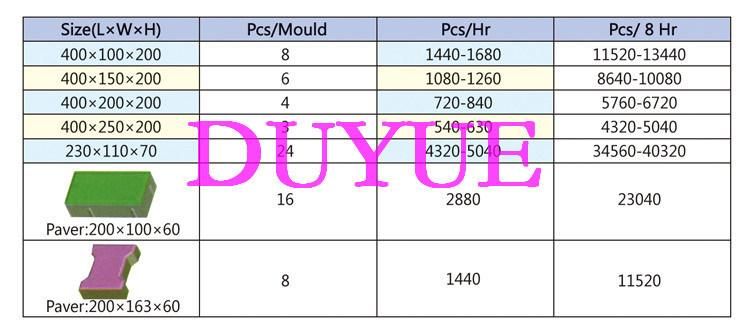

Theoretical production capacity
