Qt4-20full-Automatic Brick Making Machine Hollow Brick Solid and Paving Brick Machine Concrete Block Machine
Linyi Duyue Import and Export Co., Ltd.- Certification:CE, ISO
- Customized:Customized
- Automatic Grade:Automatic
- Type:Vibration Molding
- Cycle:20s
- Vibration Force:35.5kn
Base Info
- Model NO.:qt4-20
- Pallet Size:850*550*20mm
- Worker Number:4-5workers
- Weight:3000kgs
- Power:18.45kw
- Mould Life:1000000-150000 Cycles
- Guarantee:3 Years
- Transport Package:Container
- Specification:3700*2100*2700mm
- Trademark:DUYUE
- Origin:China
- HS Code:8474802000
- Production Capacity:50 Sets Per Month
Description
Basic Info.
Model NO. qt4-20 Pallet Size 850*550*20mm Worker Number 4-5workers Weight 3000kgs Power 18.45kw Mould Life 1000000-150000 Cycles Guarantee 3 Years Transport Package Container Specification 3700*2100*2700mm Trademark DUYUE Origin China HS Code 8474802000 Production Capacity 50 Sets Per MonthProduct Description

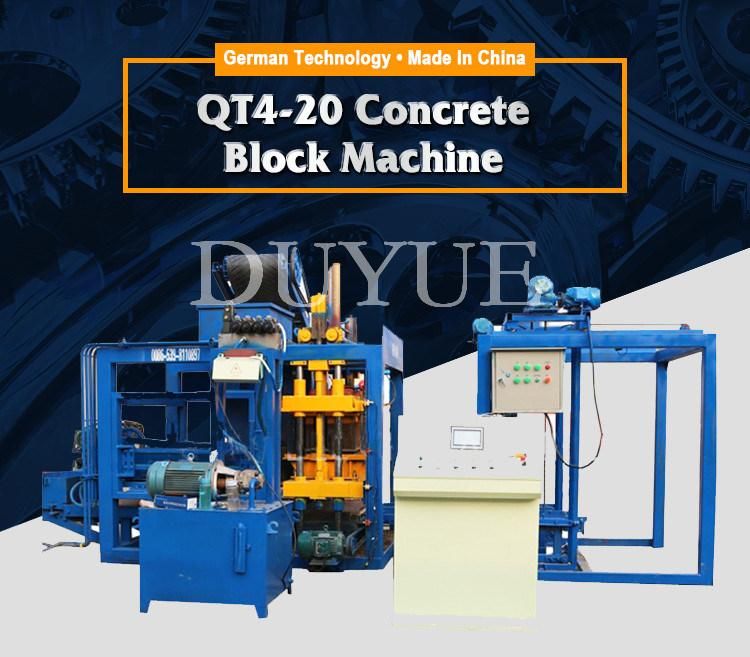

QT4-20 is hydraulic and vibrating cement brick making machine.The whole production line of QT4-20 block machine can compare to the large fully automatic concrete block making machine production line.
1.QT4-20 Small Brick Factory For Sale Concrete Block Making Machine Price of our company is professional equipment for building blocks and bricks.
2.Different kinds of specifications of hollow block and bricks like pavers, grass growing block, curbstone and standard bricks can be produced by changing the mould.

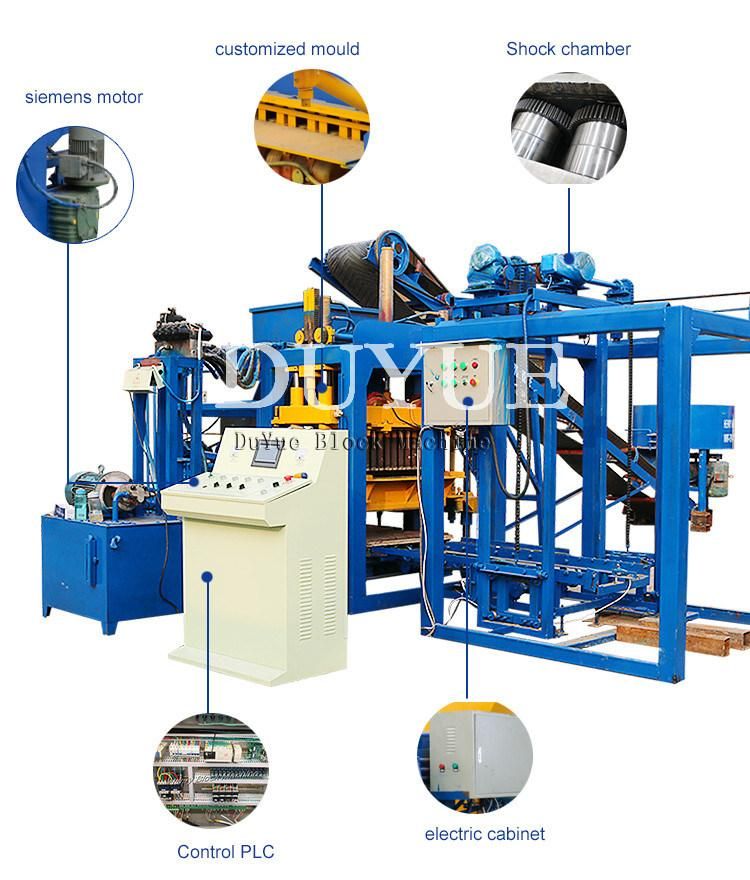

3.The equipment is driven by hydraulic system and monitored by Non-contact proximity switch, collecting machine, electricity, light, hydraulic and high-frequency vibration technology as one unit.
4.Block is formed mainly in hydraulic way and then by mechanical way, finished by vibration and pressing. The strength of extension of finished products can reach 15Mpa or above.
