• Model NO.：stone coated machine
• Usage：Roof, Wall, Stone Coated Roof
• Transmission Method：Electric
• Color：as You Like
• Trade or Factory：Factory
• Guarantee：1 Year
• Life Time：10 Years
• Service：Provide Engineer to Install The Machines
• Brand Name of PLC：as Customer Request
• Drawing：Designed as Customer Request
• Power：38V, 50Hz, 3 Phrase or as Your Like
• Decoiler Type：Manul, Electric, Hydraulic
• Control System：PLC
• Transport Package：Main Machine Nude Packing with Plastic Film
• Specification：5800*1500*1500
• Trademark：xinnuo
• Origin：China
• HS Code：8455221000
• Production Capacity：30 Sets Per Month

1.Automatic Bottom glue spraying equipment


Outside dimension:4000*1350*850(L*W*H)

Structure:channel steel,welded

Transmisson:2.2kw variable-frequency adjustable-speed motor 0-32R/mim

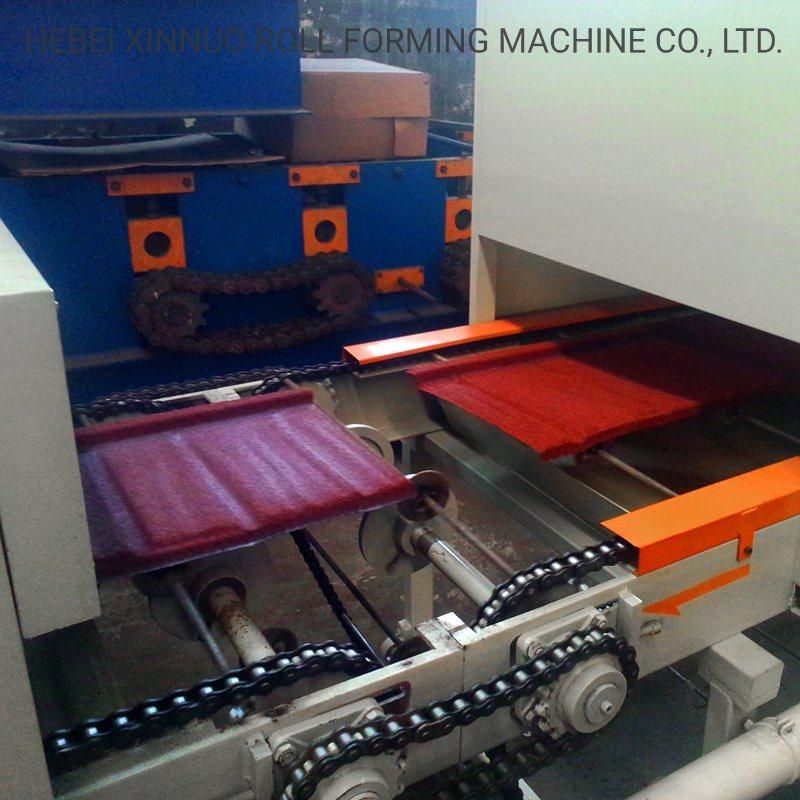

Conveying device:Reciprocating chain conveys

Automatic glue spraying assembly: with motor:0.06kw

Adsorption of dust removal equipment:1 set

Air compressor:1 set 0.9m

Automatic pressure glue canister:1 set Range of adjustable pressure:0.1-0.6Mpa

Automatic glue spraying gun:4 sets

Fill glue gun: 5 sets

Glue gun stand:1 set

2.Automatic Sandblasting Room

Outside dimension:3000*1850*700(L*W*H)

Structure:channel steel,angle steel,welded

Transmisson:with glue spraying equipment compound chain transmit

Conveying device:compound chain transmit

Automatic sand hopper:1 set dimension 550*600*500m

Automatic rising machine:1 set. Rising height:1.9m Power:300kg/h

Sand-blasting gun:4 sets

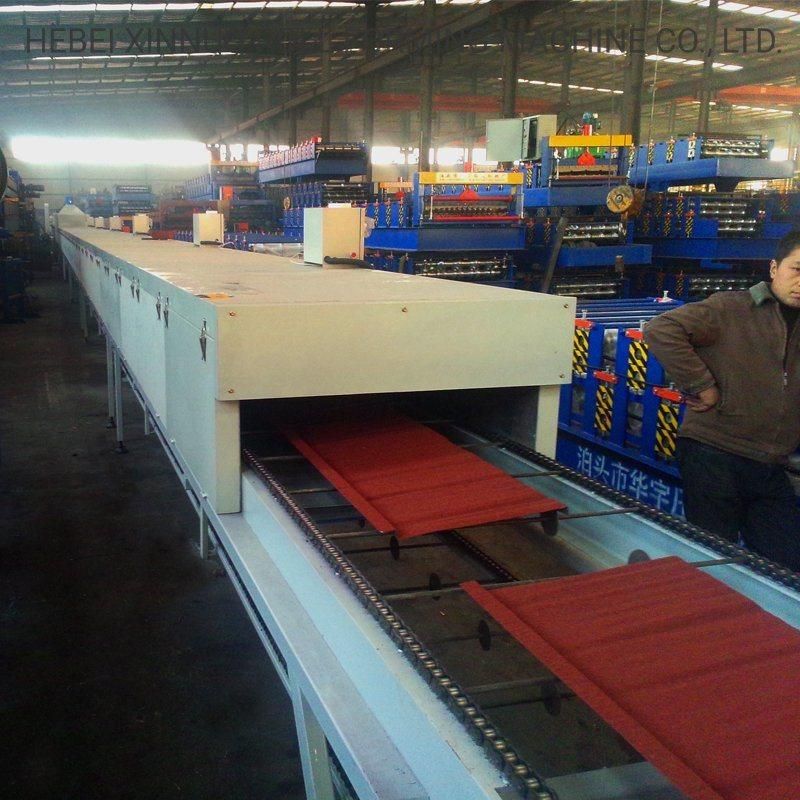

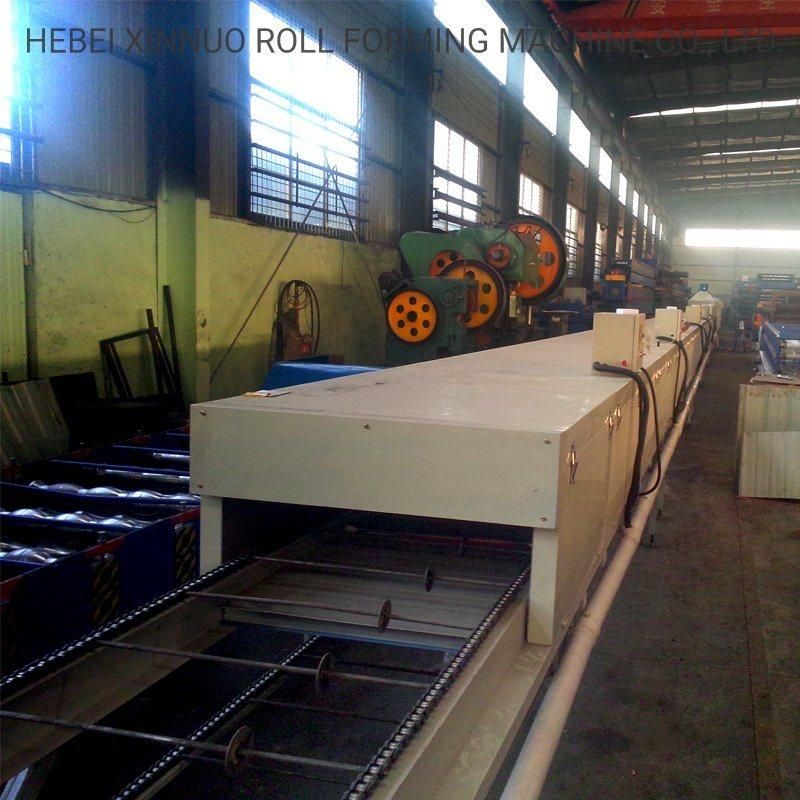

3.First Drying Room

Outside Dimension:25000*800*1200mm(L*W*H)

Structure:carbon steel welded

 Frame type heat preservation wall:-fill up with heat preservation material which is bended with 1mm carbon steel

 Automatic temperature controller:2 sets,Range of adjustable temperature:0-160°

 Infrared fluorescent tube:50 pcs

Conveying device-:Reciprocating chain conveys

Cooling device:1 set

4.Automatic Surface Glue Spraying Equipment

Outside Dimension:  3000*850*700mm(L*W*H)

 Structure:   carbon steel welded

Automatic glue spraying assembly: 1 set Range of pressure:0.1-0.6 MPa

Adsorption of dust removal equipment: 1 set

Manual spraying gun:   5 sets

5.Second Drying Room Equipment Component

 Outside Dimension:    3000*850*700mm(L*W*H)

Structure:  carbon steel welded

Frame type heat preservation wall:30m. fill up with heat preservation material which is bended with 1mm carbon steel

Conveying device-:Reciprocating chain conveys

Infrared fluorescent tube:50 pcs

Automatic temperature controller:2 sets,Range of adjustable temperature:0-160°

Conveying device: Reciprocating connection conveys 30 m

Cooling device:1 set

Automatic printing code and marking:1 set of automatic printer

Total equipment matches total control station:1 set(control system)

Productivity:3-6m/min calculate as 1.2m per piece, eight hours, produce 1500pcs everyday

Whole machine power:113kw

Hebei XN Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.

     Strong technical resources are the most stable guarantee for our products' quality. We adopt computer software for design drawing, production drawing and installation drawing for steel construction equipment. We adopt advanced computer digital inspection and produce high quality light steel structure equipment. Our technical is updating day by day !

     Our sales network covers all over China. We also sell products to the United States, Australia, the Netherlands, Germany, Ecuador, Bolivia, Thailand, Malaysia, Indonesia, India, the Philippines, Bangladesh, Nigeria, South Africa, Ethiopia, Syria, Libya, Ghana, Sudan, Saudi Arabia, the United Arab Emirates, Turkey, Azerbaijan and other markets.

     Our company has matured after-sale service network, we could provide efficient and satisfactory service for you throughout the period of our cooperation.If necessary, we can supply you with local technical support and send technicians to for installation and operation training.

FAQ

1.Does one roll forming machine can only produce one size?
A.Not exactly, it depends on the machine.
2.Do you have after sales support?
A.Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
3.What can you do if the roll forming machine broken?
A.Xinnuo roll forming machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts replace the broken parts,
but you need pay the express cost by yourself. if after warranty period, we can through negotiation for solving the problems, and
we supply the technical support for the whole life of the equipment.
4.Can you be responsible for transport?
A.Yes, please tell us the destination port or address. we have rich experience in transport.
5.You are trade company or factory?
A.We are factory.We can always send you a video or live broadcast to prove that we are a factory/you can also send us a link to the VR real scene of our factory.
6.Do you provide customized?
A.Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal
forming machine designer and manufacturer.
