Joint-Hidden Type Big Span Steel Roof Panel Construction Making Roll Forming Machine

HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.
  • Tile Type：Colored Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized
  • Usage：Roof
  • Transmission Method：Machinery

Base Info

  • Model NO.：470
  • Color：Any You Like
  • Main Motor Power：5.5kw, 3 Phase
  • Hydraulic Motor Power：4kw
  • Main Frame：400mm H-Beam
  • Backboard Thickness：14mm
  • Chain：Double
  • Feeding Thickness：0.3-0.8mm
  • Roller Diameter：75mm
  • Cutter Material：Cr12, Quenched
  • Roller Material：45# Steel
  • Transport Package：Nude with Simple Plastic
  • Specification：8.5*1.0*1.2M
  • Trademark：Xinnuo
  • Origin：China
  • HS Code：8455221000
  • Production Capacity：30sets,Month

Description

Basic Info.

Model NO. 470 Color Any You Like Main Motor Power 5.5kw, 3 Phase Hydraulic Motor Power 4kw Main Frame 400mm H-Beam Backboard Thickness 14mm Chain Double Feeding Thickness 0.3-0.8mm Roller Diameter 75mm Cutter Material Cr12, Quenched Roller Material 45# Steel Transport Package Nude with Simple Plastic Specification 8.5*1.0*1.2M Trademark Xinnuo Origin China HS Code 8455221000 Production Capacity 30sets/Month

Product Description

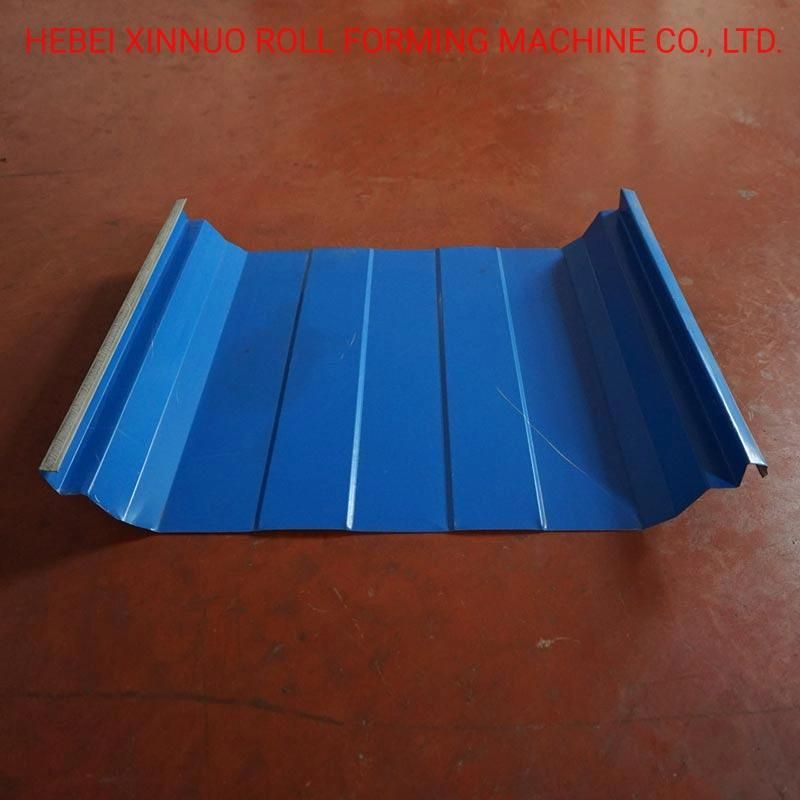

Joint-hidden type big span Steel Roof panel construction making roll forming Machine

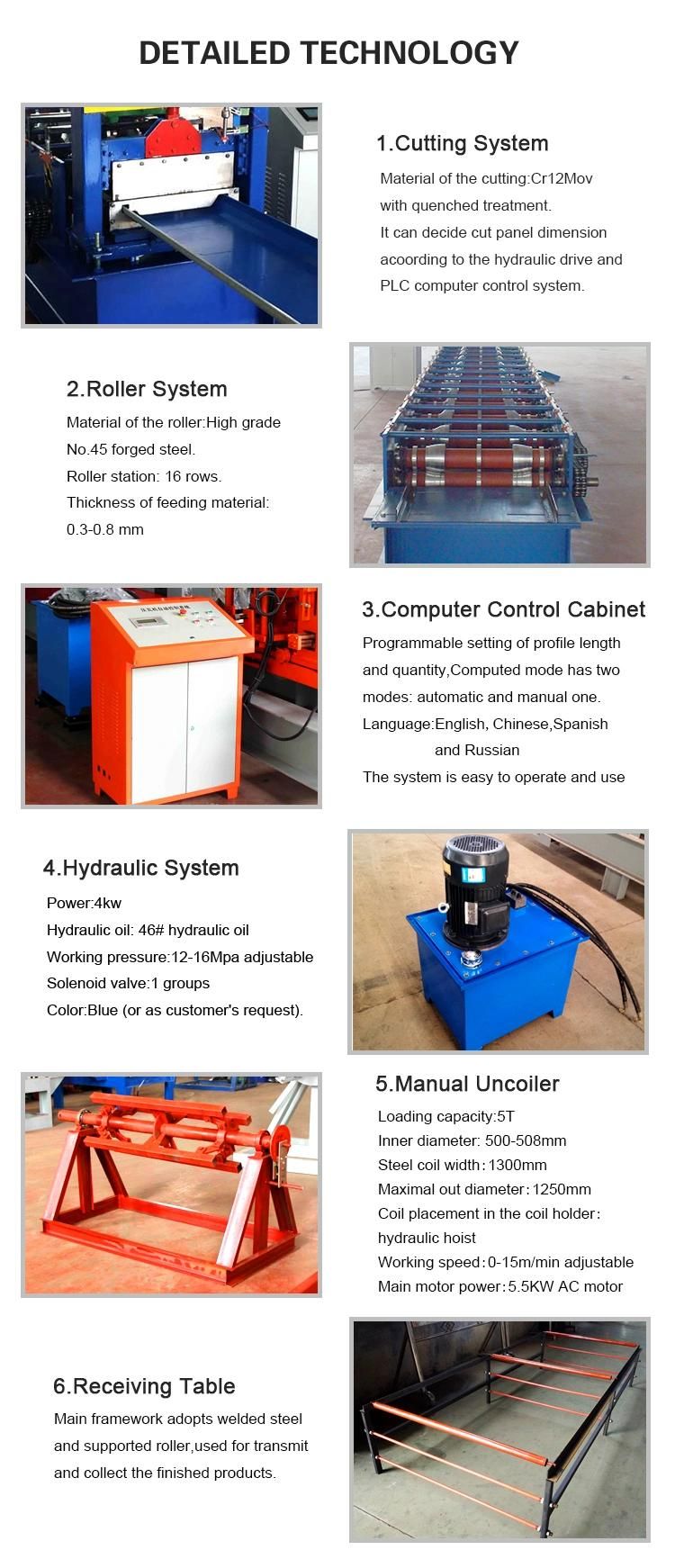

 Main parameters

1Suitable to process

Color steel plate, galvanized sheet, aluminum coils and etc.

2Width of the feeding materialdepend on the profile
3Roller station16 rows
4Thickness of feeding material0.3-0.8mm
5Productivity8-12m/min
6Rollers' material45# steel
7Diameter of shaft75mm
8Voltage380V 50Hz 3phases
9Wall thickness of main forming machine14mm steel plate
10Main forming machine body400 mm H steel
11Motor power5.5+4 kw
12Size8500*1000*1200mm
13WeightAbout 4.5 T

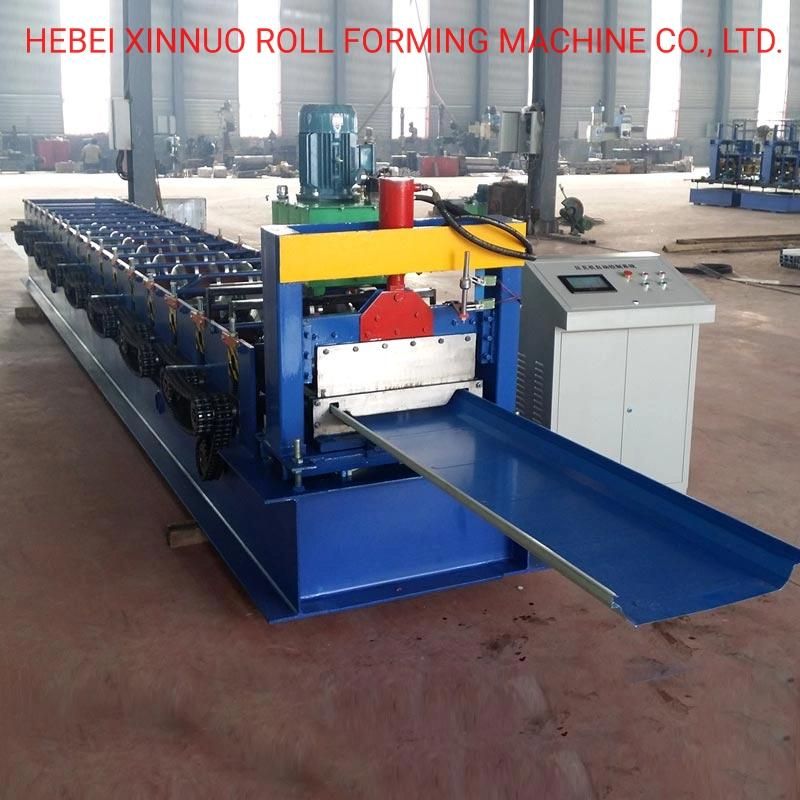

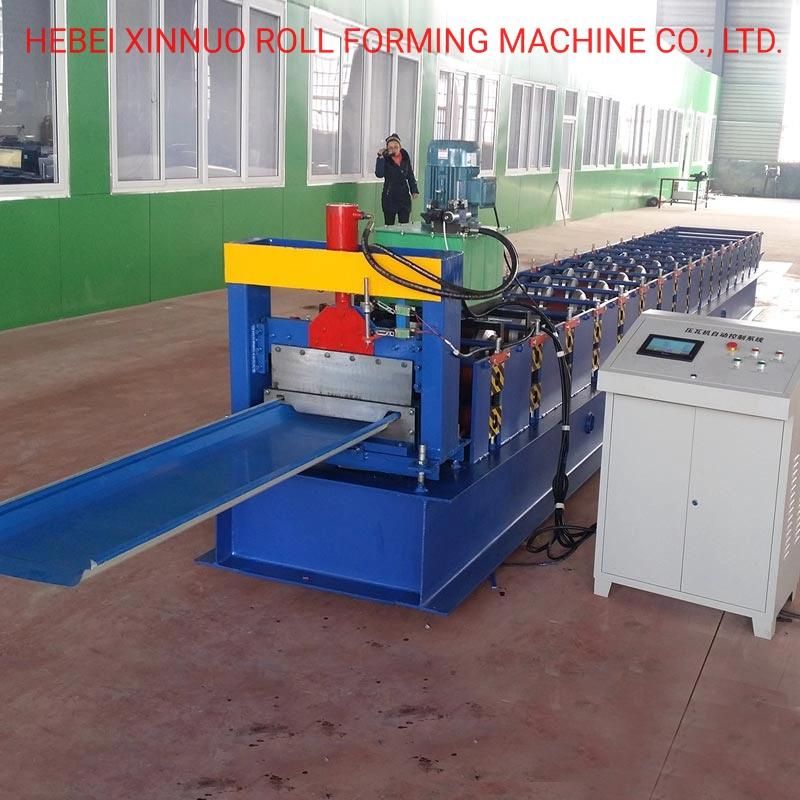

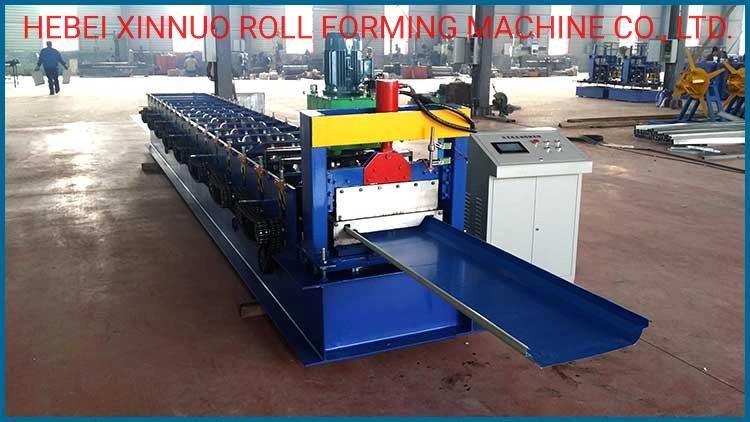

Joint-Hidden Type Big Span Steel Roof Panel Construction Making Roll Forming Machine
Joint-Hidden Type Big Span Steel Roof Panel Construction Making Roll Forming MachineJoint-Hidden Type Big Span Steel Roof Panel Construction Making Roll Forming MachineJoint-Hidden Type Big Span Steel Roof Panel Construction Making Roll Forming MachineJoint-Hidden Type Big Span Steel Roof Panel Construction Making Roll Forming MachineJoint-Hidden Type Big Span Steel Roof Panel Construction Making Roll Forming MachineJoint-Hidden Type Big Span Steel Roof Panel Construction Making Roll Forming Machine
Joint-Hidden Type Big Span Steel Roof Panel Construction Making Roll Forming Machine


Joint-Hidden Type Big Span Steel Roof Panel Construction Making Roll Forming Machine
Joint-Hidden Type Big Span Steel Roof Panel Construction Making Roll Forming Machine


Our Services:

♦ GUARANTEE:

12 MONTHS GUARANTEE. IF SOME PART OF THE MACHINE IS BROKEN.WE WILL SUPPLY THE BEST PART, BUT IF THE DAMAGED PARTS DUE TO OPERATE ERROR, BUYER WILL PAY FOR THE SHIPPING FEE.

♦ AFTER-SALE SERVICE:

WE SENT TECHNICIAN TO YOUR COUNTRY TO FIX THE MACHINE.THE BUYER SHOULD BEAR ALL THE COST INCLUDING:VISA,ROUNDTRIP TICKET AND SUITABLE ACCOMMODATION,ALSO BUYER SHOULD PAY THE SALARY 100USD/DAY.


FAQ:
1. How to play order:
Inquiry---confirm the profile drawings and price---confirm the PI---arrange the deposit or L/C---then OK

2. How to visit our company:
Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour),then we can pick up you.
Fly to Shanghai Airport:By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5hours),then we can pick up you.


3. When we exported the machines:
We have beening making and exporting the machines since from the year of 1998.

4:If you want to get more pictures or videos of the machines,I can send them to you by Email or Skype
