• Model NO.：QT40-3A
• Vibration Frequency：4500 R,Min
• Vibration Force：35.5 Kn
• Voltage：Adapt to Your Local Voltage
• Overall Dimension：1800*1400*1100mm
• Molding Form：Vibration and Pressure
• Main Vibration Form：Mould Vibration
• Pallet Size：No Need Pallets
• Weight of The Machine：0.8t
• Transport Package：Package or According to Customer′s Requirement
• Specification：1800*1400*1100mm
• Trademark：Henry
• Origin：Shandong, China
• HS Code：8474802000
• Production Capacity：160-640 Pieces,Hour

Basic Info.

Model NO. QT40-3A Vibration Frequency 4500 R/Min Vibration Force 35.5 Kn Voltage Adapt to Your Local Voltage Overall Dimension 1800*1400*1100mm Molding Form Vibration and Pressure Main Vibration Form Mould Vibration Pallet Size No Need Pallets Weight of The Machine 0.8t Transport Package Package or According to Customer′s Requirement Specification 1800*1400*1100mm Trademark Henry Origin Shandong, China HS Code 8474802000 Production Capacity 160-640 Pieces/Hour

Product Description

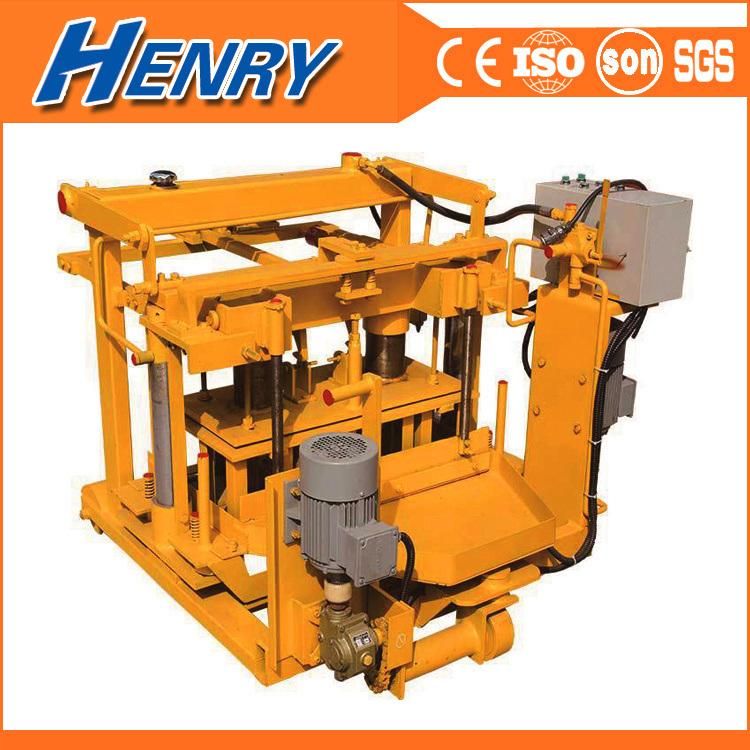

QT40-3A Low Price Egg Layer Block Machine Mobile Concrete Hollow Block Making Machine

Main Description

1.QT40-3A concrete block making machine is a moving type block machine, well known as an egg layer block machine. That means it can lay blocks directly on the ground after the blocks being formed.


2.QT40-3A block machine is also a hydraulic pressure block machine, which makes it have higher pressure. the blocks produced will be of higher strength and larger density.



Advantage of QT40-3A Low Price Egg Layer Block Machine Mobile Concrete Hollow Block Making Machine

1.QT40-3A Hollow block making machine can make various hollow block by changing molds.

2.It walks on concrete floor freely,no need pallet,the investment is low.

3.Two person is required to operate the machine.1 person operates machine,the other mixs raw material.

4.Easy transportation,it can be packed by plywood box,the packing size is 4.5m3.The transportation cost is low.

5.No need installation,after connecting with power,it can be used.



Main technical parameters

Model No.	QTM40-3A
Molding cycle	25-30(Second)
Vibration frequency	4500 r/min
Vibration force	35.5 KN
Overall power	11KW
Overall dimension	1800*1400*1100mm
Molding form	Vibration and Pressure
Main vibration form	Mould Vibration
Pallet size	No need pallets
Voltage	Adapt to your local voltage
Weight of the machine	0.8T

Theoretical Production Capacity

Size (L*W*H)	PCS / Mould	PCS / Hour	PCS / 8Hrs
400*100*200mm	7	840	6720
400*150*200mm	5	600	4800
400*200*200mm	4	480	3500
400*250*200mm	3	360	2880

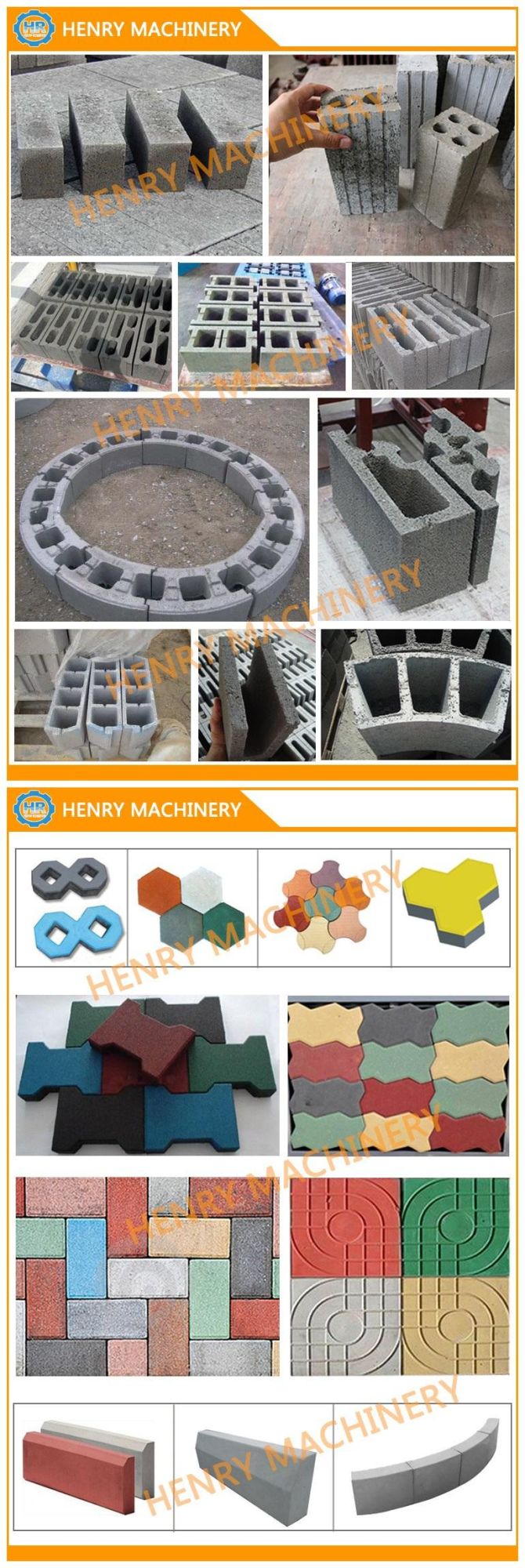

Some blocks designed by QT40-3A Low Price Egg Layer Block Machine Mobile Concrete Hollow Block Making Machine


Company profile

Henry Industrial Co.,Ltd is a big  and famous Construction Company in China.We are manufacturer of concrete block making machine and clay interlocking brick machine for 23 years.Our machines have a high quality and  get Certified ISO 9001: 2009 and CE standard by Eurotech Germany.As so far,we have applied for 23 patents,the patent technology guatantee equipment to be rationality,stability,reliability,customers have been widely praise and acclaim on it.Company products exported to Europe and the United States,Africa,the Middle East and more than 100 countries and regions.


Our Service

     we have go big after sale service  team , they are all the experience technician , over 20 workers have the passport , they all have the oversea experience. So we not only have good service in the pre service , we also think highly of the after sale service.

Pre-sale

(1) Professional suggestions (raw material matching, machine selection, plan
The condition of building factory, feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material, capacity
and the size of brick)
(3) 24 hours on-line service
(4) Welcome to visit our factory and production line any time, if you need, we can Make invitation
letter for you.
(5) Introduce the company file, product categories and production process.
Sale:

(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time
After-sale:

(1) The engineer will guide to carry out the plant at the clients side if needed.
(2) Set up, fix, and operate
(3) offer  training to the operator until they are satisfied at clients side.
(4) Skill support the whole using life.
(5) Recall clients regularly ,get feedback in time ,keep well communication with each other.
Guarantee

(1)We can supply one year guarantee period for our brick making machines,if the client have the question ,they could call our service department number any time , we will supply per day 24 hours service .
(2)Within one year ,if the client meet the unsolvable questions ,we could fly to client place to help.
