• Model NO.：CLFH-01
• Motor Power：3.5kw
• Power Supply：380V,50Hz
• Overall Dimension：1600*1100*1600mm
• Weight：About 1300kg
• Usage：Aluminum Window Making Machine
• Servise：One Year Warranty
• Function：Thermo Break Aluminum Profiles Machine
• Profile Size：280*280mm
• Diameter of Roller Wheel：230mm
• Work Speed：6 ~60m,Min(Stepless Speed Regulating)
• Origin of Factory：Jinan Machine
• Color：Optional
• Name：Thermo Break Aluminum Profiles Machine
• Material：Aluminum Profile
• Transport Package：Wooden Box
• Specification：Thermo Break Aluminum Profiles Machine
• Trademark：TRUEPRO
• Origin：China
• HS Code：8461500090
• Production Capacity：500sets,Year

Basic Info.

Model NO. CLFH-01 Motor Power 3.5kw Power Supply 380V/50Hz Overall Dimension 1600*1100*1600mm Weight About 1300kg Usage Aluminum Window Making Machine Servise One Year Warranty Function Thermo Break Aluminum Profiles Machine Profile Size 280*280mm Diameter of Roller Wheel 230mm Work Speed 6 ~60m/Min(Stepless Speed Regulating) Origin of Factory Jinan Machine Color Optional Name Thermo Break Aluminum Profiles Machine Material Aluminum Profile Transport Package Wooden Box Specification Thermo Break Aluminum Profiles Machine Trademark TRUEPRO Origin China HS Code 8461500090 Production Capacity 500sets/Year

Product Description

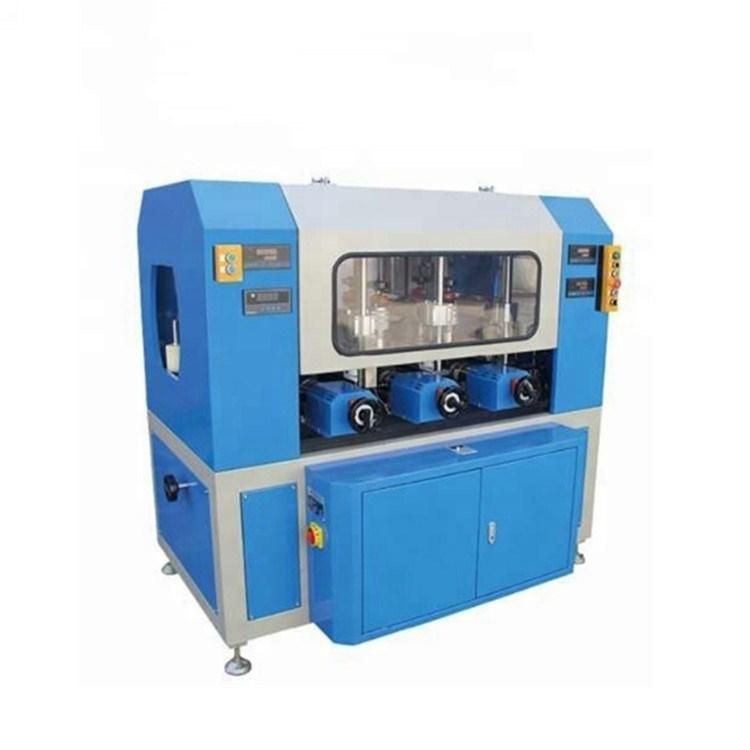

 Thermo Break Rolling Machine for Aluminum Profiles

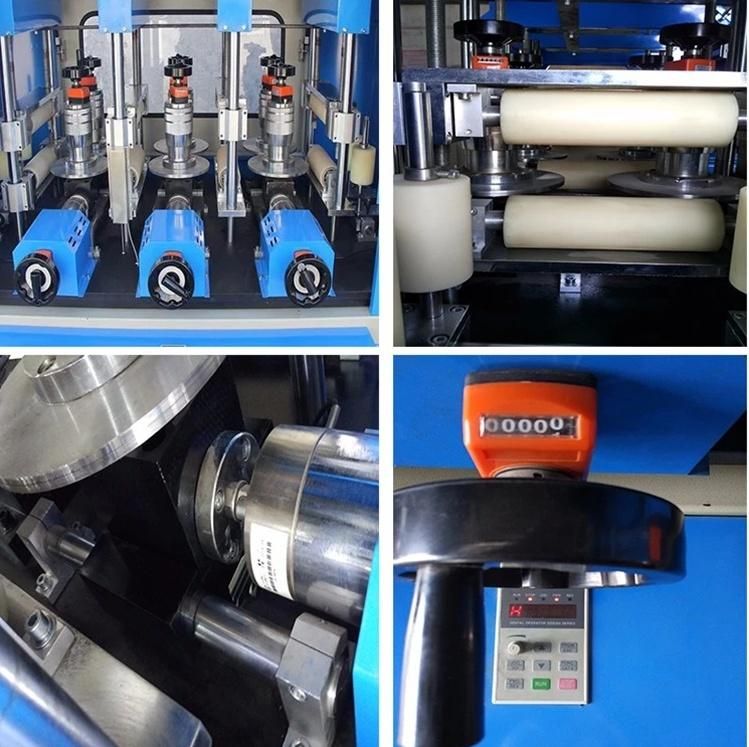

Equipment Features:

 1. Equipped with three groups of hardened rollers electrically controlled, available in changing profiles quickly with
the Nylon rollers. Two-axis direction adjustments.
2. Six rollers controlled by separate driving force guarantee stable rolling, higher speed, and higher efficiency
3. Space between roller wheelings adjustable. Suitable for various sizes of thermal barrier strips.
4. Frequency converter with stepless speed regulation.
5. High-precision screw are used for driving.

Equipment Parameter:

Input power	4Kw	Air pressure	0.5~0.8MPa
Power supply	380V 50Hz	Feeding speed	0-90m/min (stepless adjusting)
Rolling disc diameter	210mm	Coaxial rolling discs distance	0-80mm
Front and back rolling discs distance	0-100mm	Max. profile processing section	250*250mm (W*H)
Profile support dimension (L*W*H)	5000*450*1100mm	Overall Dimension	1300*1100*1700mm (L*W*H)
		Weight	2000kg

Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.





1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation
training. All of our engineers have passport.

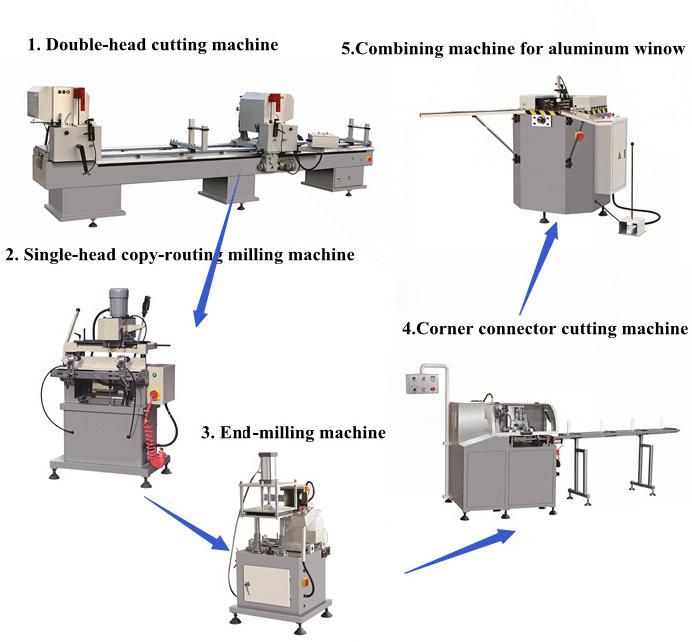

4. If I make Aluminum window and door, how many basic machines do i need?
1)double head cutting saw
2)Lock hole copy milling machine
3)End milling machine
4)Automatic Corner connector automatic cutting saw
5)Single head Corner combining machine
