• Model NO.：LJMJ-CNC-500D
• Input Voltage：380V 50Hz
• Input Power：3.0kw
• Air Pressure：0.5~0.8MPa
• Air Consumption：120L,Min
• Spindle Speed：3200r,Min
• Saw Feeding Speed：0~3m,Min
• Cutting Height：120mm
• Auto Feeding Length：3~350mm
• Overall Dimension：1700*1600*1400mm
• Transport Package：Wooden Case
• Specification：1700*1600*1400mm
• Trademark：Yuefeng
• Origin：Jinan, China
• HS Code：8477800000
• Production Capacity：30sets,Month

Basic Info.

Model NO. LJMJ-CNC-500D Input Voltage 380V 50Hz Input Power 3.0kw Air Pressure 0.5~0.8MPa Air Consumption 120L/Min Spindle Speed 3200r/Min Saw Feeding Speed 0~3m/Min Cutting Height 120mm Auto Feeding Length 3~350mm Overall Dimension 1700*1600*1400mm Transport Package Wooden Case Specification 1700*1600*1400mm Trademark Yuefeng Origin Jinan, China HS Code 8477800000 Production Capacity 30sets/Month

Product Description

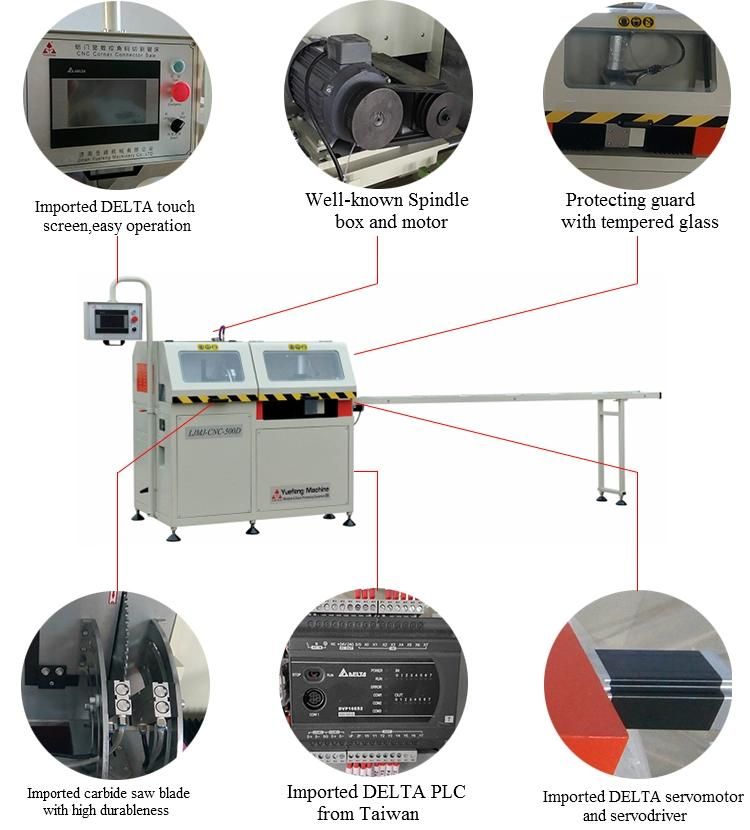

LJMJ-CNC-500D  CNC Corner Connector Saw

1.Used for cutting aluminum connectors.
2.It controlled by ball screw and CNC system result high efficiency.
3.Recording system record the numbers already cut.
4.Automatic feeding system, can cut over-lengthy profiles.
5.Imported carbide saw blade gives accurate processing, reliability and high durableness.
6.Clamping and feeding process adopt pneumatic control, it has features of high automation, reliability and production efficiency.

Technical Parameter:


Model	LJMJ-CNC-500D
Input voltage	380V 50Hz
Input power	3.0Kw
Air pressure	0.5~0.8MPa
Air consumption	120L/min
Spindle speed	3200r/min
Saw blade standard	φ500×4.4×φ30×Z120
Saw feeding speed	0~3m/min
Cutting height	120mm
Auto feeding length	3~350mm
Overall dimension	1700×1600×1400mm
