• Model NO.：SHA033
• Material：Steel Plate
• Hole Shape：We Can Design for You
• Usage：Civil Building
• Stamping Expanded Metal Mesh Category：Expanded Metal Mesh
• Transport Package：According to customers′ requirement
• Specification：ISO9001: 2000
• Trademark：shenghua
• Origin：china
• HS Code：84633000
• Production Capacity：5set ,Week

Basic Info.

Model NO. SHA033 Material Steel Plate Hole Shape We Can Design for You Usage Civil Building Stamping Expanded Metal Mesh Category Expanded Metal Mesh Transport Package According to customers′ requirement Specification ISO9001: 2000 Trademark shenghua Origin china HS Code 84633000 Production Capacity 5set /Week

Product Description

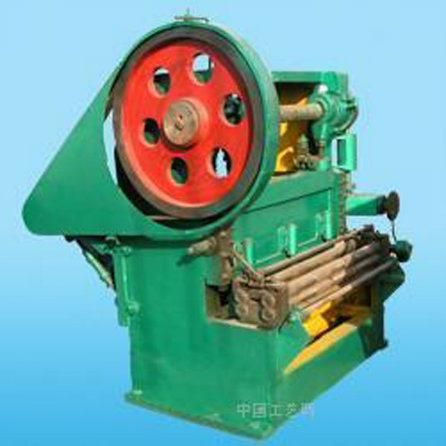

Expanded plate mesh machineThe machine produced by our company is high technology, and high practicability, It can produce steel plate mesh, aluminum plate mesh, titanium plate mesh and some other material mesh.
The machines are used for punching all kinds of expand plate mesh in construction, common hardware, window and door, machine protecting etc.
Feeding mechanism passes the chain link by the main engine directly, the movement accurate is reliable.
The times of feed mechanism punching shear start from 0, it can shear at will scope.


Type	SH25-6.3	SH25-16	SH25-25	SH25-63	SH25-125
Pounding thickness	≤ 1.0mm	≤ 1.2mm	≤ 1.5mm	≤ 2.5mm	≤ 6mm
Pounding width	≤ 500mm	≤ 1000mm	≤ 1250mm	≤ 2000mm	≤ 2500mm
Stocks per minute	230/min	160/min	130/min	70/min	40/min
Distance of feeding	0-1.15mm	0-1.2mm	0-1.2mm	0-4mm	0-7mm
Length of the mesh	≤ 20mm	≤ 25mm	≤ 30mm	≤ 100mm	≤ 250mm
Press plate pressure	63KN	160KN	250KN	630KN	1250KN
power	2.2KW	3KW	4KW	11KW	22KW
Overall weight	1.2T	2.5T	3T	10T	18T
Outside size L*W*H mm	1090 *710 *1450	1800 *1400 *1870	1740 *1400 *2010	3560 *3500 *2300	5800 *3270 *1925

(I want to tell you that the mesh in your requirement can be made by one machine. So there is no need to buy two machines. )
The delivery time is 20 days.
The payment term is 30% T/T in advance 70% according to the copy of B/L
