• Model NO.：CSHZ2GC-100*3500
• Air Consumption：150L,Min
• Profile Height：20-100mm
• Profile Width：120mm
• Welding Range Min.：400mm
• Welding Range Max.：3500mm
• Dimension：4400*1100*1700mm
• Weight：1100kg
• Transport Package：Standard
• Specification：CSHZ2GC-100*3500
• Trademark：Truepro
• Origin：China
• HS Code：846599
• Production Capacity：500sets,Year

Basic Info.

Model NO. CSHZ2GC-100*3500 Air Consumption 150L/Min Profile Height 20-100mm Profile Width 120mm Welding Range Min. 400mm Welding Range Max. 3500mm Dimension 4400*1100*1700mm Weight 1100kg Transport Package Standard Specification CSHZ2GC-100*3500 Trademark Truepro Origin China HS Code 846599 Production Capacity 500sets/Year

Product Description

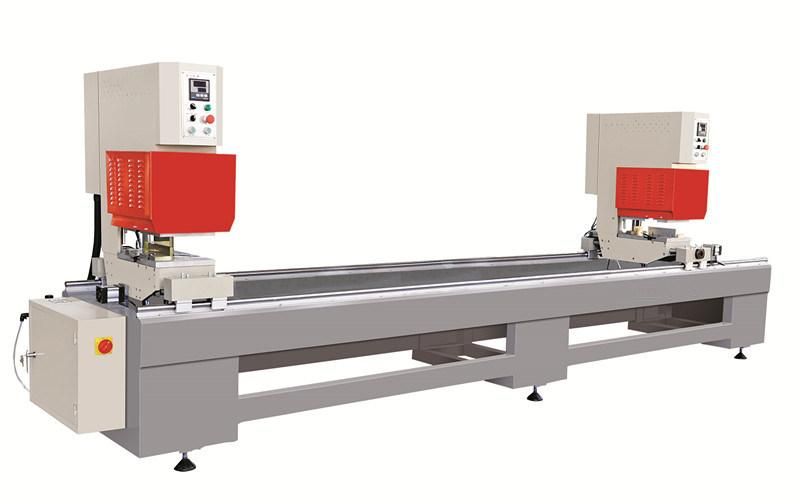

Double head seamless welding upvc doors and windows making machine


Equipment Advantages
1.This machine is used for welding colorful profiles, and can clean welding slag in one time, welding without showing
the bottom color, is upscale beautiful.
2. Co-extrusion tool adopt aluminum alloy material, it's precisely processed with high-degree of standardization for the
tool, support tool swap.
3. Equipped with the automatic blowing system, can improve work efficiency, and thus thoroughly remove the welding
slag.
Parameter:

Model	CSHZ2GC-100*3500
Input power	2.5Kw
Power supply	220V/50Hz
Air pressure	0.6~0.8MPa
Air consumption	150L/min
Welding height	20-100mm
Welding Length	400~3500mm
Welding width	120mm
Overall Dimension	4400*1100*1700mm
Weight	1100Kg

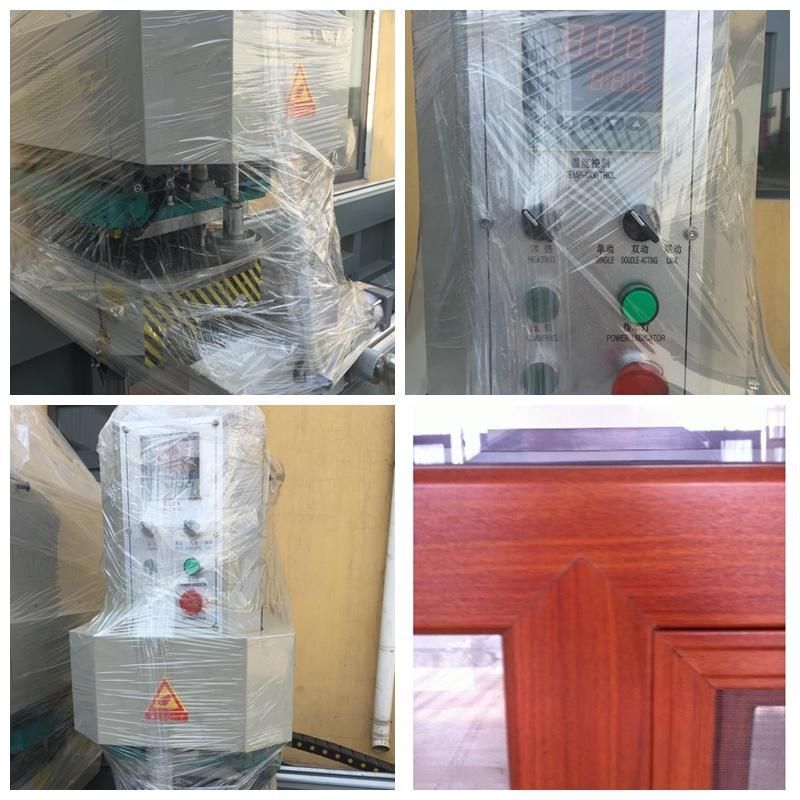

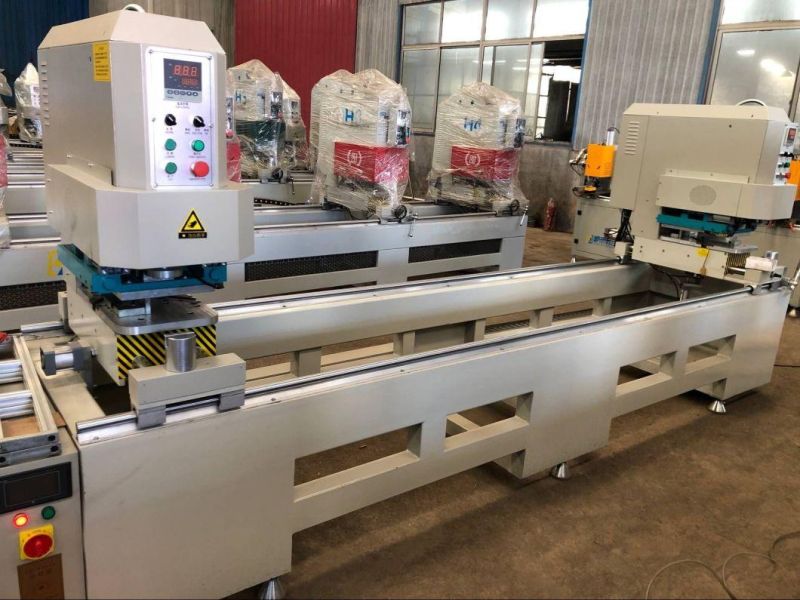

Machine details:










1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

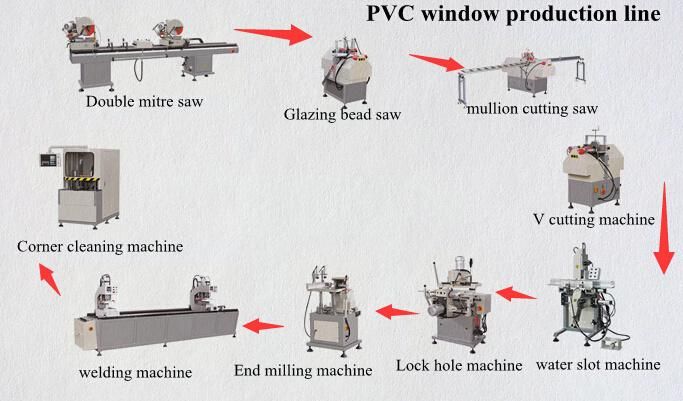

4. PVC window production line
