• Model NO.：LGW-CNC-25T
• Input Power：5.5kw
• Y Axial Hydraulic Trust：25t
• Three Shaft Speed：1-15r,Min
• Axial Spacing：320-600mm
• Min. Bending Radius：150mm
• Spindle Diameter：50mm
• Machine Dimension：1300*1200*1400mm
• Weight：1200kg
• Transport Package：Wooden
• Specification：25T
• Trademark：Truepro
• Origin：China
• HS Code：846221
• Production Capacity：500 Sets,Year

Basic Info.

Model NO. LGW-CNC-25T Input Power 5.5kw Y Axial Hydraulic Trust 25t Three Shaft Speed 1-15r/Min Axial Spacing 320-600mm Min. Bending Radius 150mm Spindle Diameter 50mm Machine Dimension 1300*1200*1400mm Weight 1200kg Transport Package Wooden Specification 25T Trademark Truepro Origin China HS Code 846221 Production Capacity 500 Sets/Year

Product Description

              China OEM 25tons CNC aluminum profile bending machine price

Machine feature:
1. The machine is mainly used for bending for metal material such as iron, copper and aluminum and special shaped material.
It's ideal equipment of curved process for furniture manufactures, wrought iron engineering manufacturers, aluminum alloy doors
and windows manufaturers, aluminum alloy doors and windows manufacturers, decorative steel structure enterprise.
2. The machine adopts CNC controller, which make the machine features easy handling and high precision.
3. Using CNC software, makes the bending operation very simple.
4. Can bend many shapes such as C shape, U shape, the whole circle oval, combination of multiple radius-shaped, etc.
5. Two servo motor or hydraulic & Servo motor for your choice.hole circle and spring.
5. Capable of detecting material rebound data, eliminate rebound.
Parameter:

Model	LGW-CNC-25T
Input power	5.5KW
Voltage	380V 50Hz
Min. diameter of bending	100mm
Max. Size of profile	150*200mm
Axial spacing	270-600mm
Y axis Hydraulic thrust	25T
Spindle diameter	60mm
Positioning precision	0.02mm / <0.01mm
Max. torque of X axis	4000N.W
Three shaft speed	1-15r/min
Overall dimension	1300*1200*1400mm
Operation box dimension	500*300*1200mm
Weight	1200kg

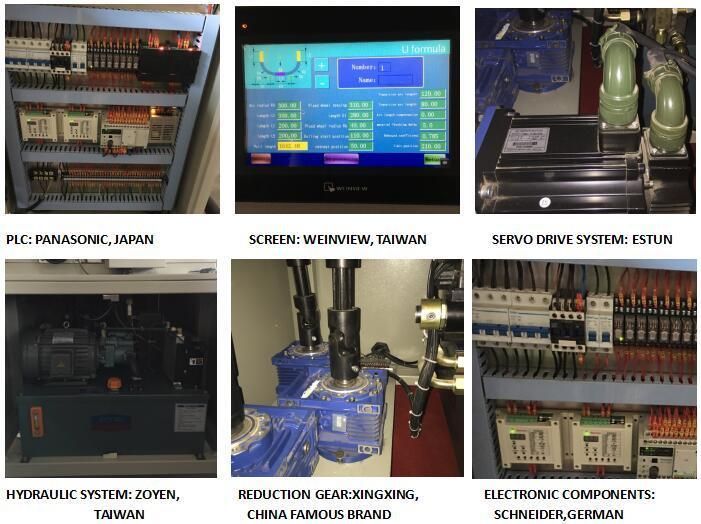

Machine details:

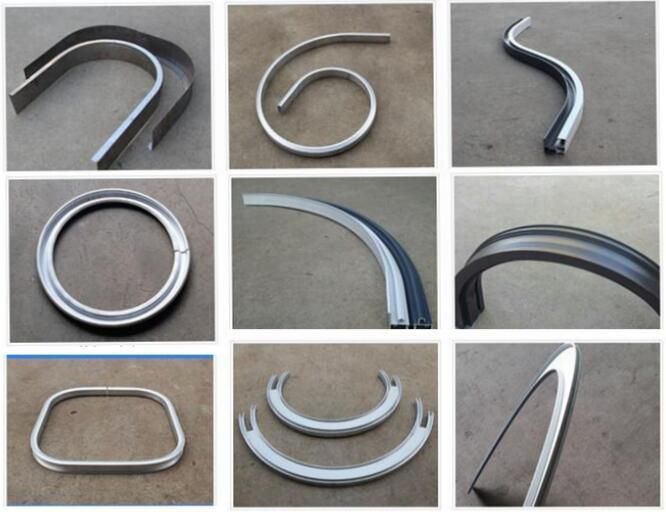

Bending effect:



Jinan Truepro is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with
well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish
designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
We believe that "IT'S THE BEST THAT FITS MOST."
Every machine could be customized to meet your special requirement.




1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
