• Model NO.：CLMB-150
• Input Power：1.5kw
• Rating Oil Pressure：16MPa
• Air Pressure：0.5-0.8MPa
• Motor Rotational Speed：1400r,Min
• Profile Max. Height：120mm
• Profile Width：90mm
• General Pressure of Corner Combining：48kn
• Machine Dimension：1850*1680*1210mm
• Weight：300kg
• Transport Package：Wooden
• Specification：CLMB-120
• Trademark：Truepro
• Origin：China
• HS Code：846510
• Production Capacity：500sets,Year

Basic Info.

Model NO. CLMB-150 Input Power 1.5kw Rating Oil Pressure 16MPa Air Pressure 0.5-0.8MPa Motor Rotational Speed 1400r/Min Profile Max. Height 120mm Profile Width 90mm General Pressure of Corner Combining 48kn Machine Dimension 1850*1680*1210mm Weight 300kg Transport Package Wooden Specification CLMB-120 Trademark Truepro Origin China HS Code 846510 Production Capacity 500sets/Year

Product Description

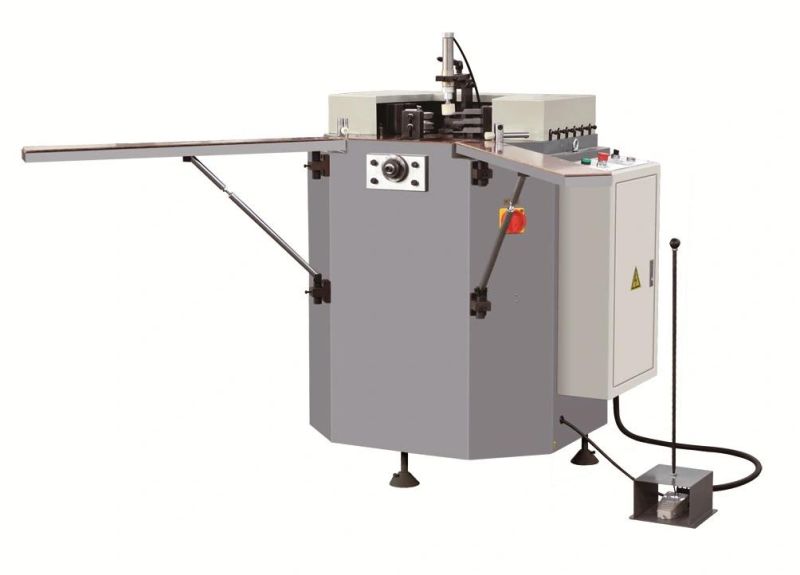

           Aluminium Window Door Fabrication Corner Crimper

Machine feature:
1.The frame is special jointed by steel with high quality and then does special process.
2.Synchronous feeding of the level(left and right side) pushing knives by link with one hydraulic cylinder driving,
which aviod the corner deform and enchance the corner connection efficiently.
3.Synchro feeding structure make the adjustment very easy.
4.Convenient operation and less error in processing.
5.Distance of tool knife adjustable,as the screw thread connection,easy working for tools.
Parameter:

Model	CLMB-120
Power Supply	380V/50HZ
Input Power	1.5KW
Air Pressure	0.6~0.8MPa
Motor Rotational Speed	1400r/min
Profile processing height	(Max)120mm
General pressure of corner combining	48KN
The adjustable range of the main location block	70mm
Air consumption	2L/min
Capability of oil box	20L
Corner crimping casing movement journey	85mm
Profile width	90mm
Connection seam error	≤0.15mm
Overall Dimension	1850*1680*1210mm
Weight	About 300Kg

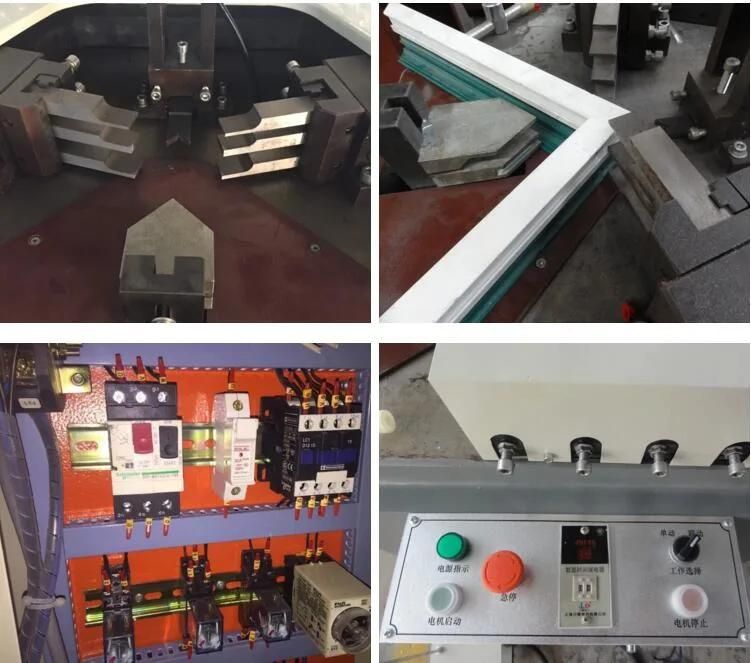

Machine details:








1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can dispatch our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.
All of our engineers have passport.

4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
