• Model NO.：XN
• Certification：CE, ISO
• Condition：New
• Customized：Customized
• Material：PPGI, PPGL, Pre-Painted Steel Sheet
• Controller：Siemens PLC
• Yield Stress：235-345 MPa
• Thickness：0.3-1mm
• Max.Forming Speed：8-12m,Min
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Weight：5.2t
• Voltage：380V 50Hz
• Transport Package：Sea Worthy Fixed by Wire Rope, Wooden Blocks
• Specification：8.5*1.6*1.5m
• Trademark：XN
• Origin：China Mainland
• HS Code：84552210
• Production Capacity：8000sets ,Year

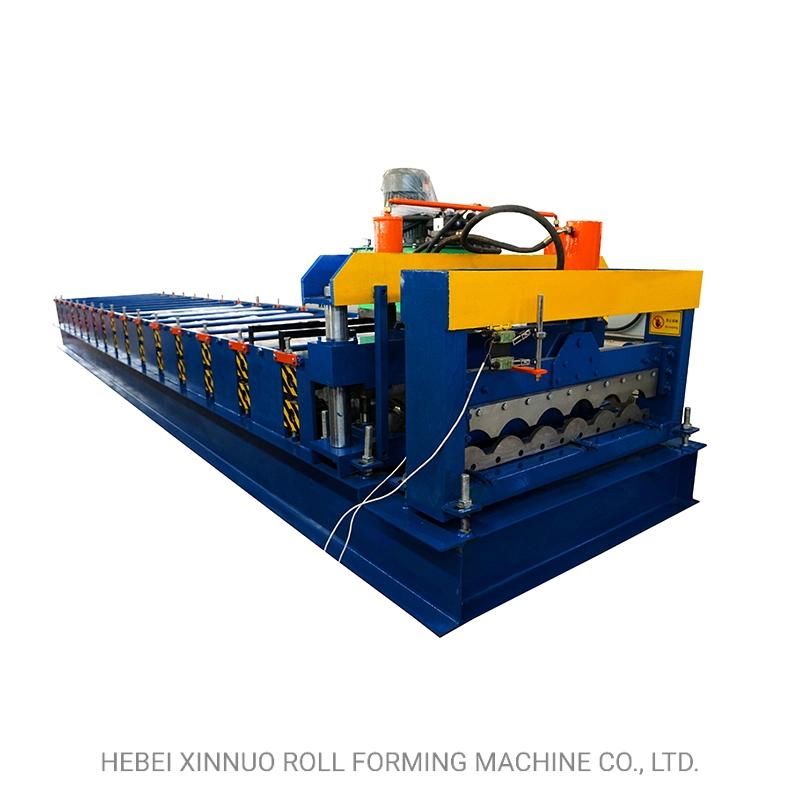

Overview Product Description



Equipment components:

Man-made uncoiler, Roll forming machine, computer control  system, hydraulic control system, cutting
Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.

Main parameters
 main parameter of roll forming machine1Suitable to processColor steel plate2Width of the plate1200mm3Rollers14 rows4Dimensions8.5*1.6*1.5m5Power4+3kw6Thickness of the plate0.3-0.8mm7Productivity8-12m/min8Diameter of the rollerΦ80mm9WeightAbout 5.2 T10Voltage380V 50Hz 3phases11Rolling materialCarbon Steel 45#12Material of the cutting plateCr1213Processing precisionWithin 1.00mm14Control systemPLC control
ADVANTAGE

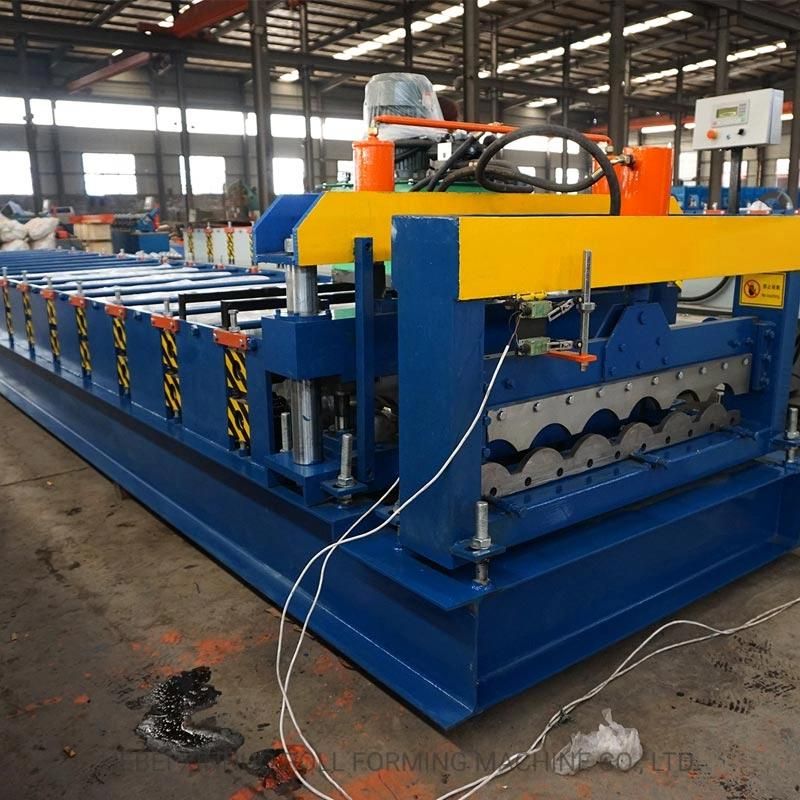

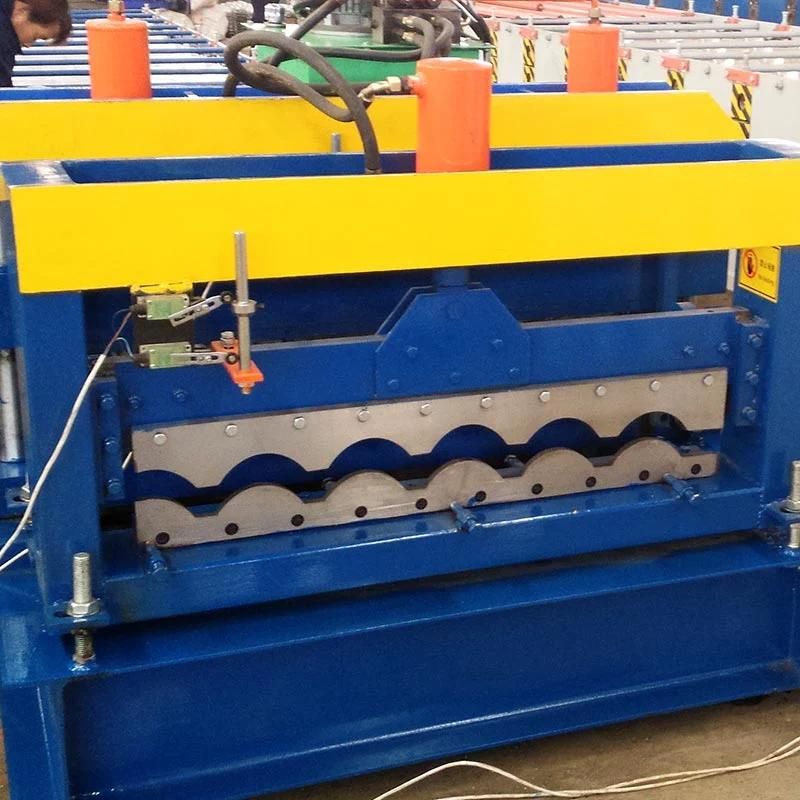

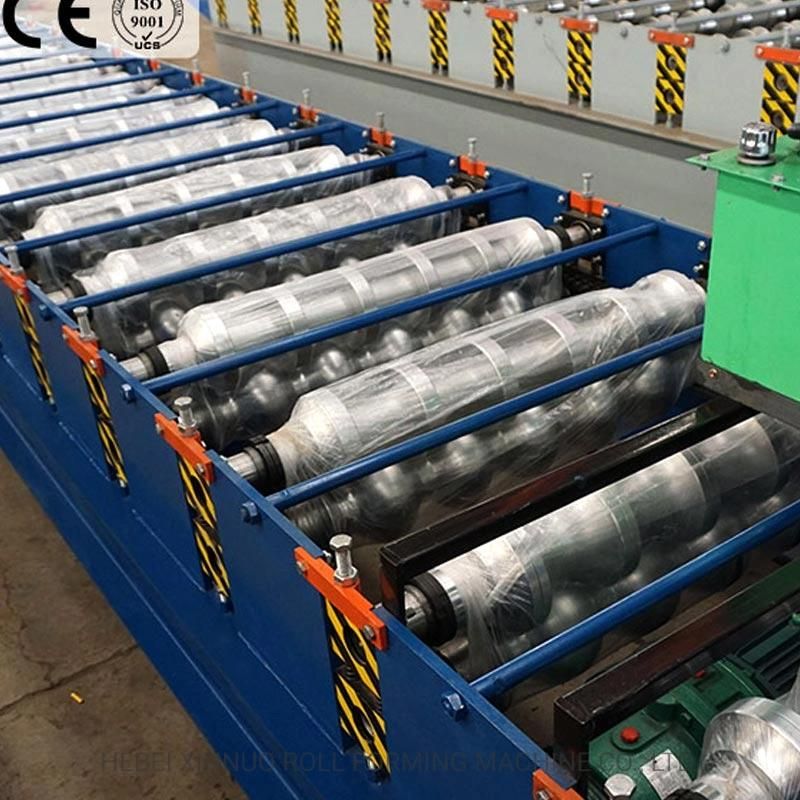

 Detailed Photos

Our AdvantagesCompany Profile

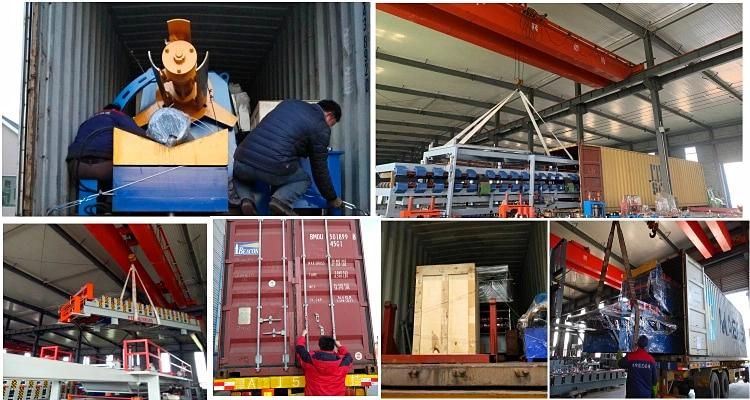

Packaging & Shipping
