• Model NO.：LY4-10
• Mould Capacity：300*150*100mm Mould Make 4 Pieces Per Mould
• Weight：Around 1400kgs
• Voltage：Customized Your Local Voltage
• Moulding Cycle：10 Second
• Warranty：1 Year
• Pressure：Hydraulic
• Brick Type：Interlocking
• Pallet Size：No Need Pallets
• Transport Package：Wooden Package or 20 Feet Container with Nude Pack
• Specification：1600X1400X2100mm
• Trademark：Shiyue
• Origin：Shandong Province, China
• HS Code：8474802000
• Production Capacity：11500PCS Per 8 Hours

Machine power

11KW

Molding cycle

10-15S

Capacity

14400 pcs/day

Raw material

Laterite, yellow or red soil, sand, cement, water

Machine weight

1600KGS

Overall size

2260*1500*2380mm

Worker

1-2 workers

Hydraulic pressure

16Mpa

Productivity

No.

Block size

Pcs/mould

Pcs/hour

Pcs/day

1

300*150*100mm

4

1440

14400

Block proportion

1. Cement, clay

Raw Materials

Quantity per piece

Water

3%

Cement

6-8%

Clay

80-90%

Other specify

You can change the proportion depend on your needs. This block is heavy,
but strong.

2. Full clay

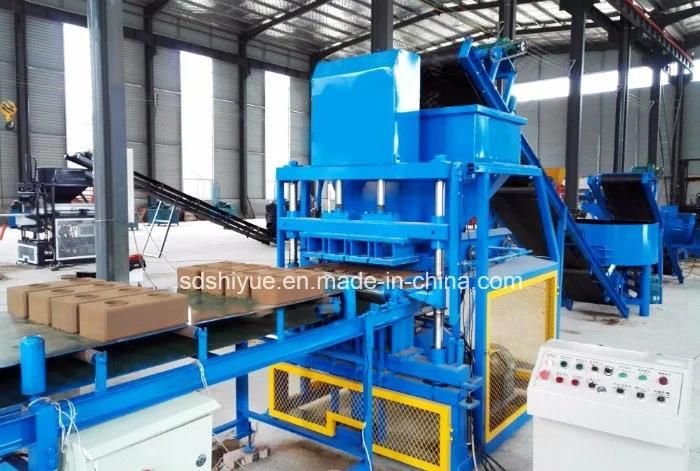

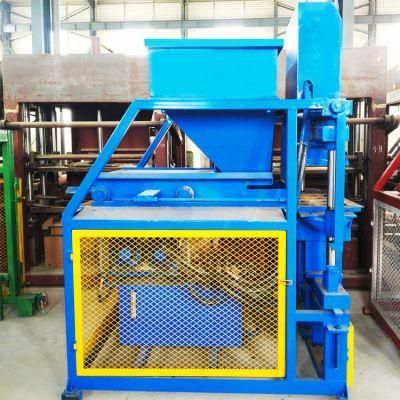

Machine pictures



Shipping and delivery

1. The whole brick machine production line equipment is mainly the full container sea shipping,

2. Brick machine equipments finish manufacturing and testing, next to clean up, and then do another paint protection,

3. Before shipment to use plastic film winding, wrapped the entire brick machine in case of water or moisture,

4. Then load brick machines into the container by forklift,

5. During loading to tighten the machine with reinforcement ring in container, so as to avoid the damage by transport bumps on the brick machine.

Pre-sale
(1) Professional suggestions (raw material matching, machine selection, plan
The condition of build factory, feasibility analysis for brick machine production line)
(2) Device model choice (recommend the best machine according to the raw material,
capacity and the size of brick)
(3) Welcome to visit our factory and production line anytime

Sale:
(1) Update the production scheduling in time
(2) Quality supervision
(3) Product acceptance
(4) Shipping on time

After-sale:
(1) The engineer will guide to carry out the plant at the clients side.
(2) Set up, fix,and operate
(3) Will not stop training the operator until they are satisfied at clients side.
(4) 24 hours service
(5) Recall clients regularly ,get feedback in time,keep well communication with each other.

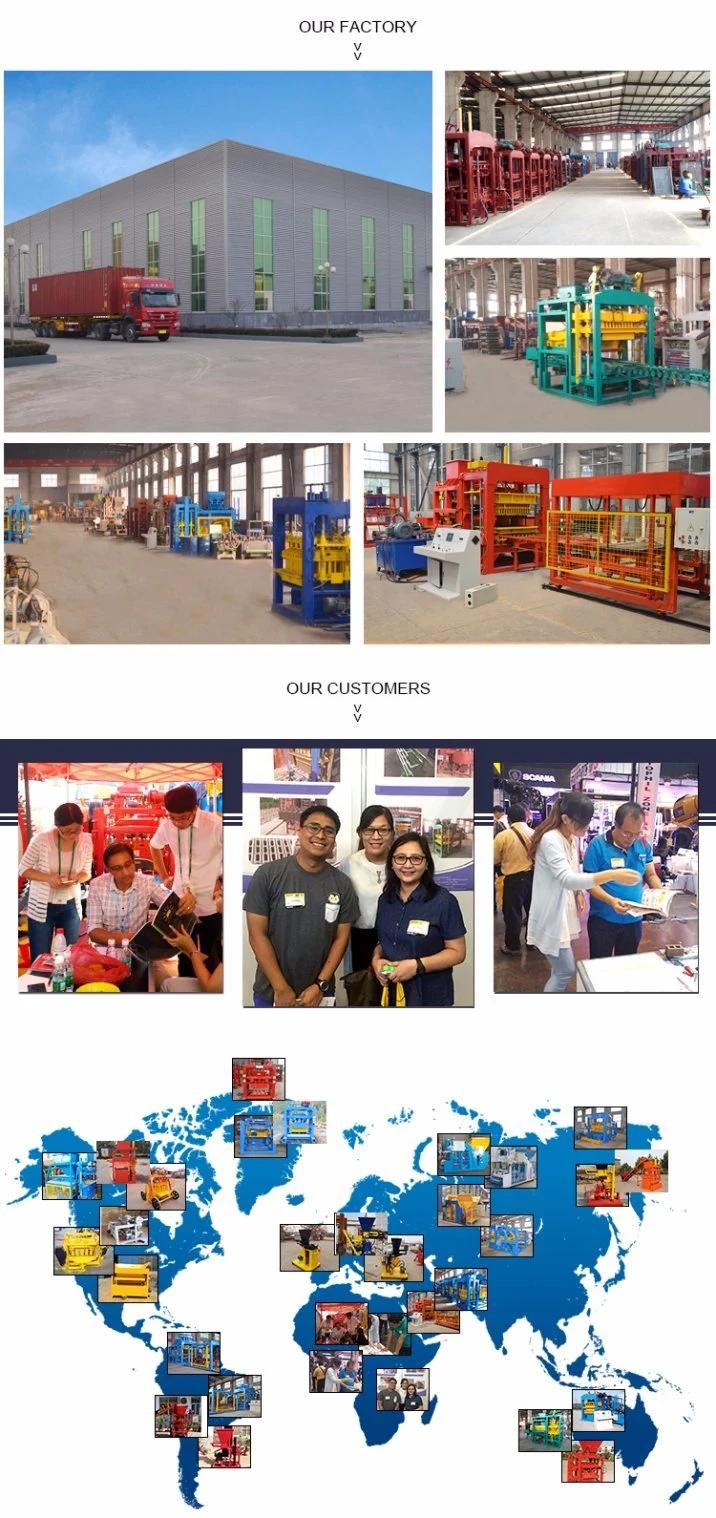

Our factory
Shiyue Machinery is located in Linyi,Shandong. With advanced technologies and rich experiences on manufacture. We have specialized in stationary block machine,mobile block machine, clay block machine, crusher,pipe making machine, pole making machine,concrete mixing plant etc.After 27-year's effort,we have receive good reputation from many countries such as India, the United States, Russia, the United Kingdom, the Philippines, Canada, Australia, South Africa, Pakistan, Brazil, Malaysia, Sri Lanka, Mexico, Nigeria, Kenya etc.What's more,our machines have won'Product patent award',and 'product innovation award' and so on.Shiyue machinery your best choice for your

FAQ

1.Question:Does the machine could change mold?
Answer:Yes,this machine could change different kinds of mold.The machine could produce interlock, paver size depending on your local requirements.
2.Question:What is the electric voltage and rate?
Answer:Our local electric voltage is 380v, 3phase, 50hertz, the electricl voltage can be revised according to local situation.
3.Question:How about the service life of this machine?
Answer:This machine could work for about 6-10 years if your side maintain well.
4.Question:What's your machine warrenty?
Answer:12 months guarantee,we send more spare parts for you when shipping machine to you.
5.Question: The mode of transportation.
 Answer: by sea, by land or by rail according to customer local need
