• Model NO.：CLJJA-500B
• Blade Specification：Ф500×Ф30×4.4 Z=96
• Transport Package：Wooden Cases
• Specification：6000*1770*1840
• Trademark：TRUETEC
• Origin：China
• Production Capacity：250 , One Year

Basic Info.

Model NO. CLJJA-500B Blade Specification Ф500×Ф30×4.4 Z=96 Transport Package Wooden Cases Specification 6000*1770*1840 Trademark TRUETEC Origin China Production Capacity 250 / One Year

Product Description

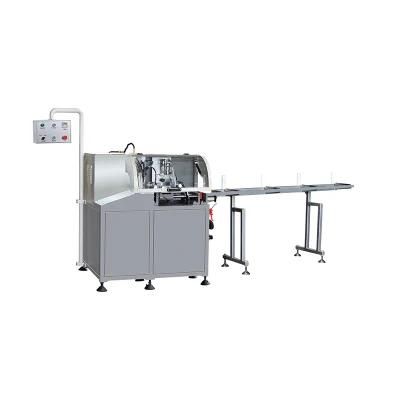

 Corner Connector Cutting Saw Machine



EQUIPMENT FEATURES

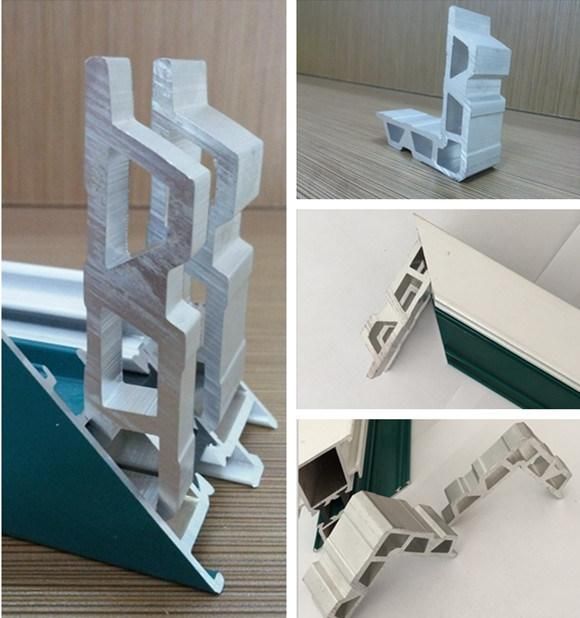

- This machine is mainly used for corner connector of aluminum profile and plastic profile cutting.

- The Angle adjustable voltage technology, quick adjustment, high efficiency.

- Feed movement adopts linear motion bearings, small resistance, high machining accuracy.

- Use carbide saw blade for Cutting tools, is of high cutting speed, easy operation,safe and reliable.

- Make good use of the material during cutting.

- This machine is suitable for massive cutting of angle connectors.

- Motor phase sequence protector is installed in the motor system, To improve the security of the system.

TECHNICAL PARAMETER

Power supply : 380V 50H	380V 50H
Cutting motor power	2.2kW
Motor rotary speed	2800r/min
Air pressure	0.5~0.8MPa
Auto-feeding length	3~380mm
Blade feeding speed	0~3m/min
Blade specification	Ф500×Ф30×4.4 Z=96
Cutting W x H	145×145mm
Overall dimension	6000×1770×1840mm
Weight	about 600kg

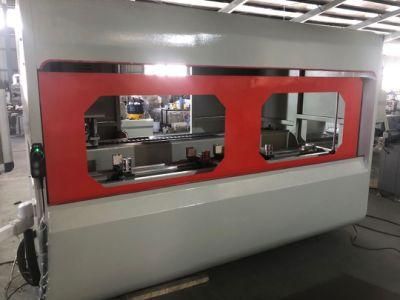

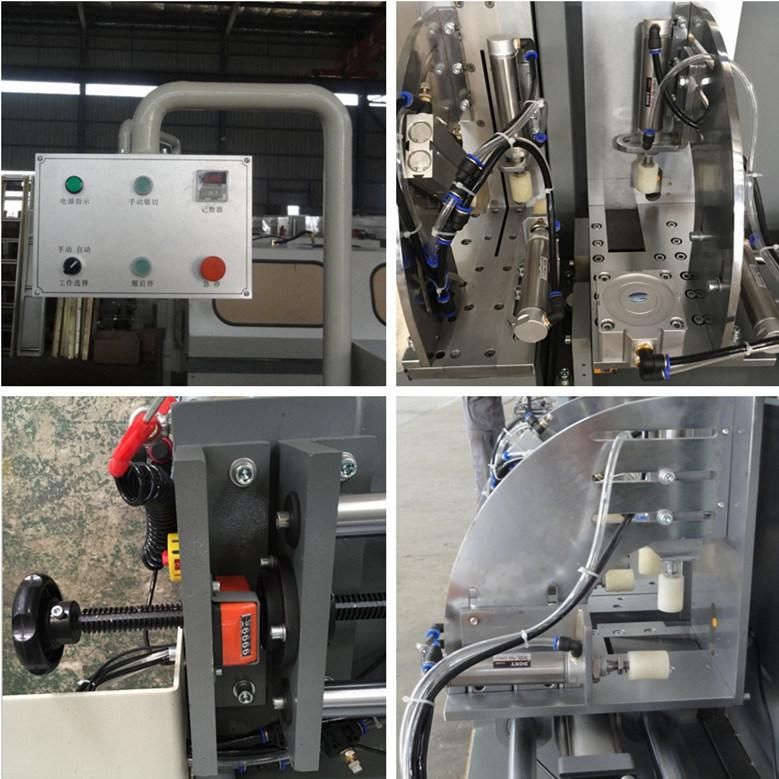

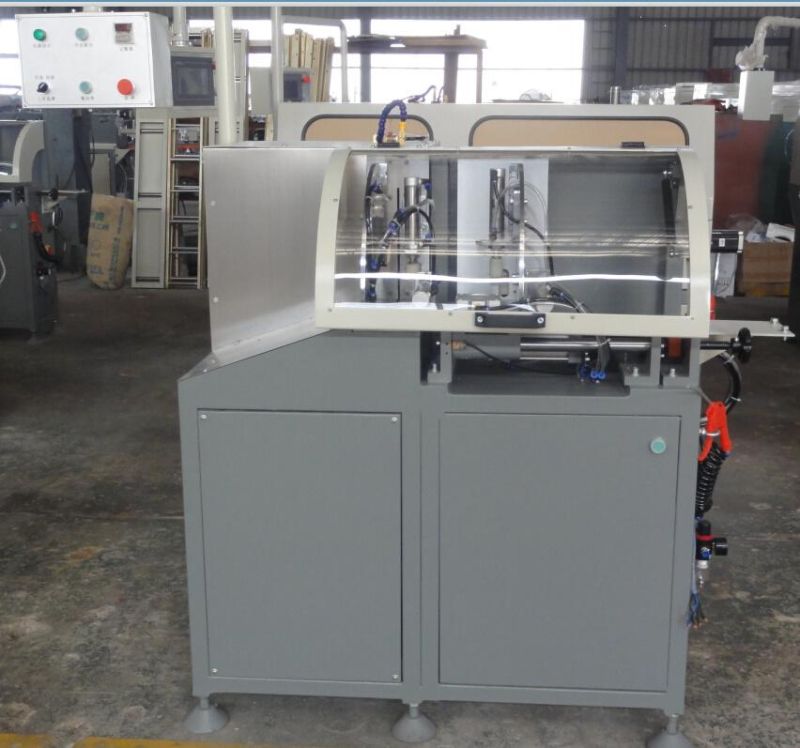

PRODUCT DETAILS
