• Model NO.：CLJZ2B-500*4200
• Cutting Motor Power：2*2.2kw
• Motor Rotary Speed：2800r,Min
• Air Pressure：0.5-0.8MPa
• Air Consumption：60L,Min
• Blade Specification：Φ500*Φ30*4.4 Z=120
• Cutter Feeding Speed：0-3m,Min
• Cutting Length at 90°：360-4200mm
• Cutting Length at 45°：360mm Plus Two Profile′s Height -4200mm
• Cutting Width*Height at 45&Deg：Max. 150*150mm
• Cutting Width*Height at 90&Deg：Max. 150*200mm
• Cutting Angle：45°, 90°
• Color：Gray or as Requirement
• Keywprd：Window Shade Cutting Machine to Buy
• Transport Package：Simple Stretch Film or Plywood
• Trademark：TRUETEC
• Origin：Shandong China
• Production Capacity：15 Sets Per Month

Basic Info.

Model NO. CLJZ2B-500*4200 Cutting Motor Power 2*2.2kw Motor Rotary Speed 2800r/Min Air Pressure 0.5-0.8MPa Air Consumption 60L/Min Blade Specification Φ500*Φ30*4.4 Z=120 Cutter Feeding Speed 0-3m/Min Cutting Length at 90° 360-4200mm Cutting Length at 45° 360mm Plus Two Profile′s Height -4200mm Cutting Width*Height at 45&Deg Max. 150*150mm Cutting Width*Height at 90&Deg Max. 150*200mm Cutting Angle 45°, 90° Color Gray or as Requirement Keywprd Window Shade Cutting Machine to Buy Transport Package Simple Stretch Film or Plywood Trademark TRUETEC Origin Shandong China Production Capacity 15 Sets Per Month

Product Description

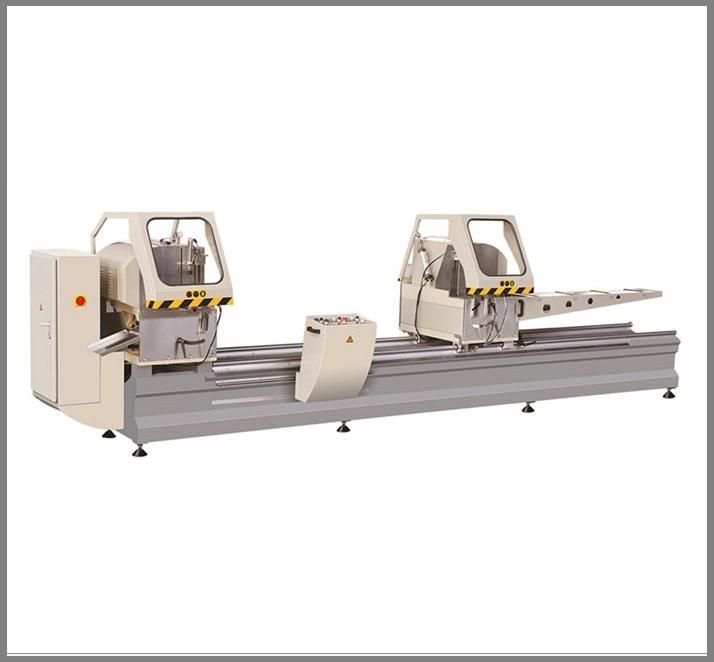

industrial precision double head cutting machines for aluminum


 Equipment Advantages

1.The Main material for aluminum alloy curtain wall,window material cutting, and can also be used for plastic profile cutting.

2.The use of carbide saw blades,diameter up to 500 dia,line of high speed, high precision matchining.

3.Right heads feeding adopts pitch ball screw-lead motion,with high accurate driving,locating and smooth working.

4.This machine uses the numerical control technology,profiles of different specifications can be completed automatically under the expected size.

5.Machine during operation,two saw blade can cut,can separate cutting.

6.The head can be set to 45 degrees and 90 degrees need angle.

7.The blade from the bottom to the top, sawing profile is more safe and reliable,and reliable,can the cutting height and cutting witch are large.

Technical Data


Brand	TRUEPRO
Model	CLJZ2B-500*4200
Power Supply	380V 50HZ
Input Power	2*2.2KW
Air Pressure	0.5~0.8MPa
Motor Rotary Speed	2800r/min
Saw Blade Specification	Φ500*Φ30*4.4  Z=120
Cutting Angle	90°, 45°
Cutting Length	400~4200mm
Cutting Width*Height	Max. 135*200mm
Overall Dimension	5500*1750*1950mm
Weight	About 1800Kg

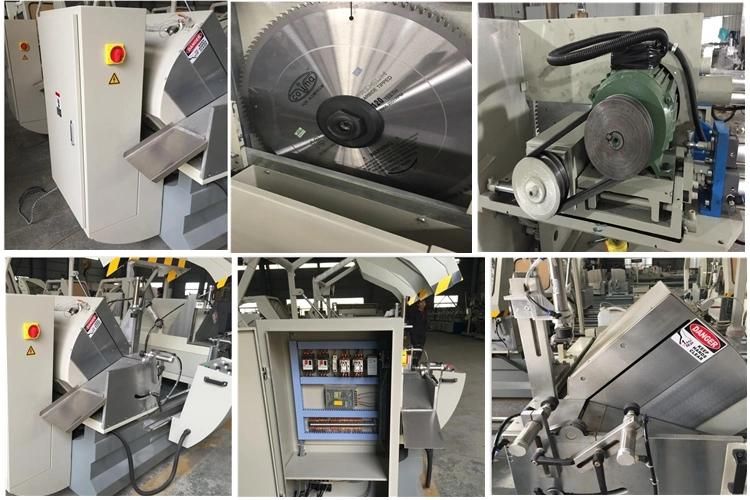

Machines Details


 Main Accessory

Electric Component	Schneider
Buttons	Schneider
Electric relay	Schneider
Motor	Chaoyang
AC Contactor and Circuit Breaker	Schneider

Machine processing

We work with everything from raw material to final machine, could guarantee machine quality from each step. select each part carefully, we are strive to quality first when machine production and test each machine before delivery.
We will provide the best machine for you.



Packaging&Shipping


Our Services

Before payment

Free contact for the most suitable machine

Free professional design for each customer especially.

After sale service

24 hours technical support by phone, email or skype (email or skype) .

1years warranty period

Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.

By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.

Payment

♦ L/C, 30% deposit by T/T,70% spare payment L/C.

♦ T/T, 30% deposit by T/T,70% spare payment before shipment.

♦ Western Union or Paypal.

Our Company



Welcome To Visit

Our company is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.



Our Exhibition

FAQ

1. When can we arrange shippment?
We usually arrange shippment within 25 days after getting deopsit,
but customized machines should be more than 25 days.

2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines

3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
