• Color：as You Need
• Trade or Factory：Factory
• Guarantee：1 Year
• Life Time：10 Years
• Service：Provide Engineer to Install The Machines
• Brand Name of PLC：as Customer Request
• Drawing：Designed as Customer Request
• Power：38V, 50Hz, 3 Phrase or as Your Like
• Decoiler Type：Manul, Electric, Hydraulic
• Control System：PLC
• Transport Package：Main Machine Nude Packing with Plastic Film
• Specification：5800*1500*1500
• Trademark：KXD
• Origin：China
• HS Code：8455221000
• Production Capacity：30 Sets Per Month

Basic Info.

Color as You Need Trade or Factory Factory Guarantee 1 Year Life Time 10 Years Service Provide Engineer to Install The Machines Brand Name of PLC as Customer Request Drawing Designed as Customer Request Power 38V, 50Hz, 3 Phrase or as Your Like Decoiler Type Manul, Electric, Hydraulic Control System PLC Transport Package Main Machine Nude Packing with Plastic Film Specification 5800*1500*1500 Trademark KXD Origin China HS Code 8455221000 Production Capacity 30 Sets Per Month

Product Description

1000 Metal Roofing Sheet Roll Forming Machine Iron Roofing Sheet Making Machine

A. Our Advantage

1.PLC Automatic Computer Control
2.Operation Easy
3.Running Is Safe Steady And Reliable
4.Lifetime Repair Guarantee



B.Technical Parameters

We design each machine according to user requirement. Below techinical parameters can be adjusted if needed.

Configurations: 5t manual uncoiler, forming machine, cutter, hydraulic system, controller, output table

1000type roll forming machine

Configurations	Manual Uncoiler ,Guiding Platform ,Coil Strip Leveler ,Main Machine Of Roll Forming ,Electro-Motor,Cutting Device ,Hydraulic Station ,PLC Control, Supporter Table.
Control System	PLC Delta Inverter
Main Frame	300mm H-Beam
Main Power	4 kw
Pump Power	3 kw
Power Supply	380V, 3-Phase,50Hz
Forming Speed	15-20m/min
Cutting speed	8-12m/min
Roll Station	14 stands
Roller Diameter	80mm
Hydraulic Pressure	10-12MPa
Forming Size	1000mm
Feeding Thickness	0.3-0.8mm
Feeding Width	1220mm
Backboard Thickness	14mm
Chain Size	20mm
Cutter Standard	Cr12
Roller Standard	45#
Cr-Plating Size	0.05mm
Overall Size	7500×1450×1600mm
Total Weight	4.5T

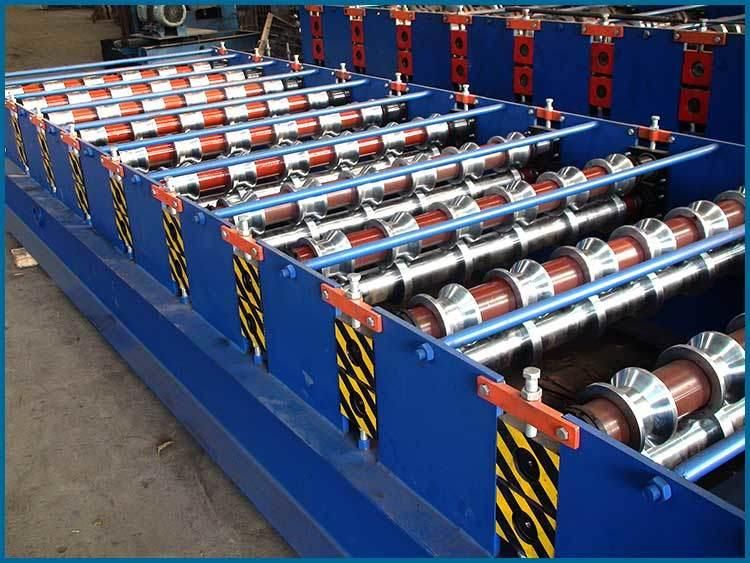

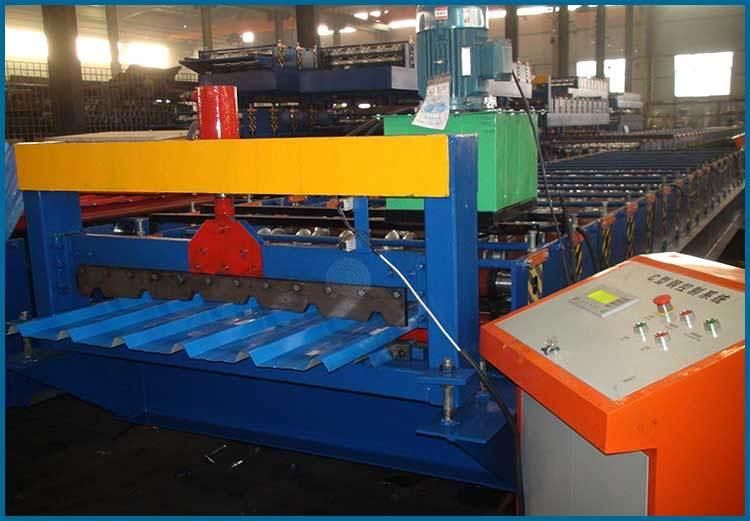

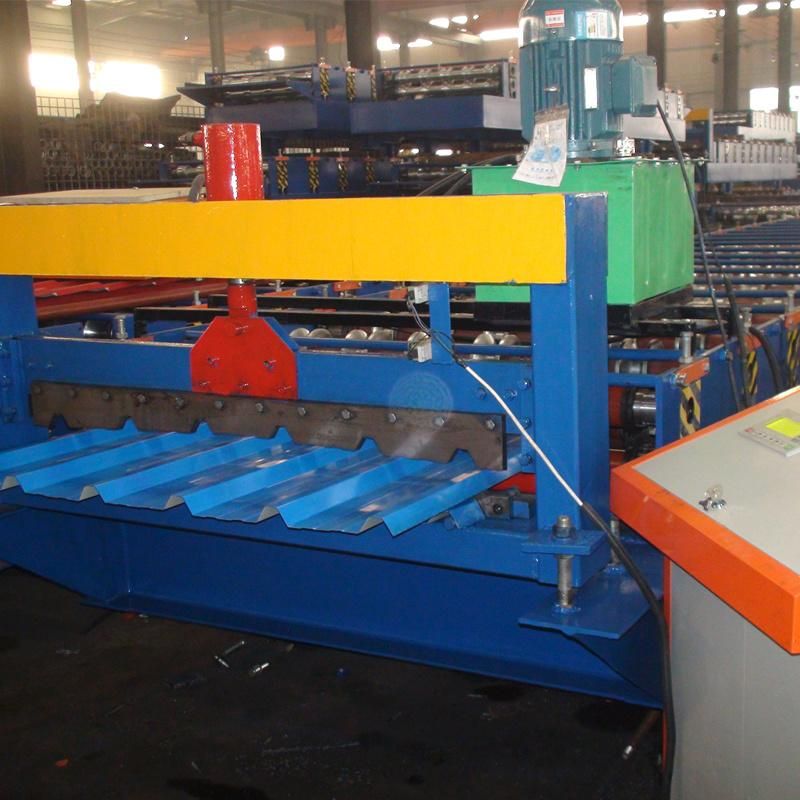

C.Machines Pics And Sample

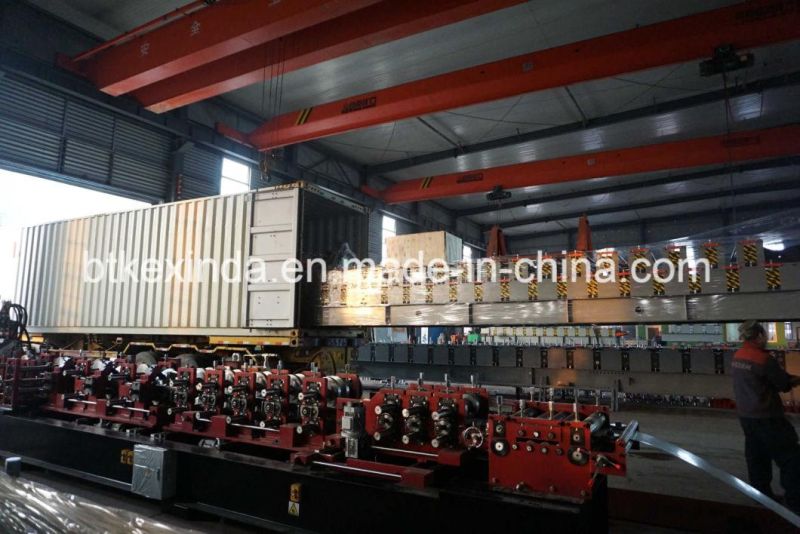

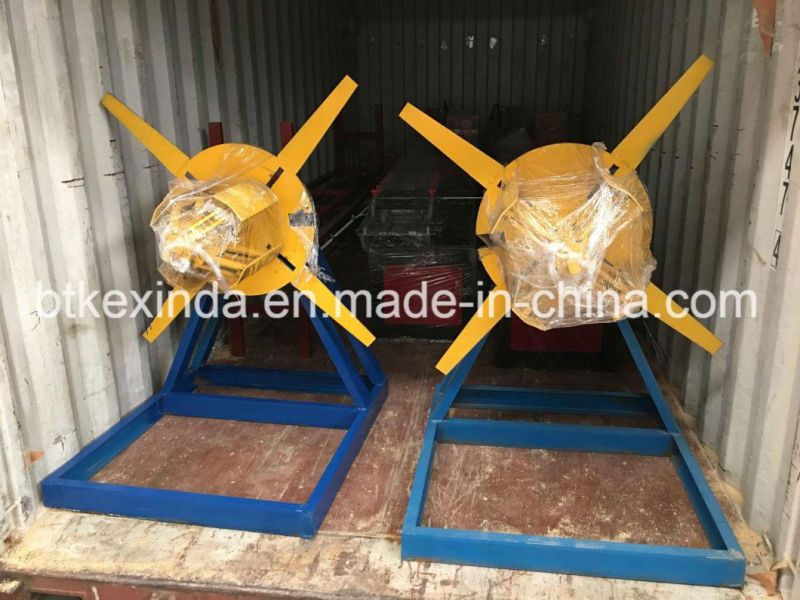

D.Shipping & Packing

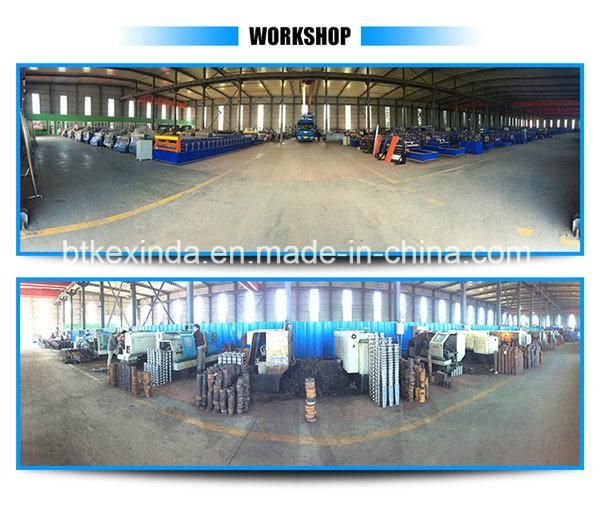

E. Company Information



Hebei Kexinda Roll Forming Machine Co., Ltd., not only produce different types of professional roll forming machines, but also develop intelligent automatic roll forming production lines, C&Z shape purline machines, highway guardrail roll forming machine lines, sandwich panel production lines, decking forming machines, light keel machines, shutter slat door forming machines, downpipe machines, gutter machines, etc.

     Strong technical resources are the most stable guarantee for our products' quality. We adopt computer software for design drawing, production drawing and installation drawing for steel construction equipment. We adopt advanced computer digital inspection and produce high quality light steel structure equipment. Our technical is updating day by day !

     Our sales network covers all over China. We also sell products to the United States, Australia, the Netherlands, Germany, Ecuador, Bolivia, Thailand, Malaysia, Indonesia, India, the Philippines, Bangladesh, Nigeria, South Africa, Ethiopia, Syria, Libya, Ghana, Sudan, Saudi Arabia, the United Arab Emirates, Turkey, Azerbaijan and other markets.

     Our company has matured after-sale service network, we could provide efficient and satisfactory service for you throughout the period of our cooperation.If necessary, we can supply you with local technical support and send technicians to for installation and operation training.







F. Customer Visit And Exhibition

G. FAQ

1.How to play order :

Inquiry---confirm the profile drawings and price---confirm the PI---arrange the deposit or L/C---then OK

2.How to visit our company :

Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1 hour),then we can pick up you.

Fly to Shanghai Airport:By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5hours),then we can pick up you.

3.When we exported the machines :

We have beening making and exporting the machines since from the year of 1998.

4.*Guarantee* :

Lifetime maintenance guarantee.If some part of the machine is broken.We will supply the best original parts for the machine from our own factory. If the parts are damaged due to improper operation, buyer will pay for the freight.


5.*After-sales* :

To give you the best after-sales service, the first give you video call with professional technicians , the second we send technicians to your country to repair the machine,
The buyer shall bear all expenses, including visa, round-trip airfare and suitable accommodation, and pay the salary of usd 100 / day.

6.Contact us:

If you want to get more pictures or videos of the machines, feel free contact us.
We will give you the best experience!



                                                                THANK FOR YOUT TIME !
                                                    WAITING FOR YOUR MESSAGE !
