• Model NO.：CNM-ZGJL
• Machine Color：Green, Blue, etc
• Power(W)：11kw
• Type：Post Tension Oval Flat Duct Making Machine
• Certificate：SGS, BV and ISO9001:2008
• Main Motor Voltage：Ree Phase, 380V, 50Hz, Single Phase, 220V
• Shape of Ducts：Flat
• Molding Ducts Speed：15m,Min
• Diameter for Ducts：50X20mm, 70X20mm, 100X20mm
• Steel Strip Thickness：0.35mm to 0.45mm
• Steel Strip Width：185
• Transport Package：by 20gp or 40gp Container
• Specification：SGS, ISO9001-2008, BV
• Trademark：CNM
• Origin：Hennan Province
• HS Code：8455212000
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. CNM-ZGJL Machine Color Green, Blue, etc Power(W) 11kw Type Post Tension Oval Flat Duct Making Machine Certificate SGS, BV and ISO9001:2008 Main Motor Voltage Ree Phase, 380V, 50Hz, Single Phase, 220V Shape of Ducts Flat Molding Ducts Speed 15m/Min Diameter for Ducts 50X20mm, 70X20mm, 100X20mm Steel Strip Thickness 0.35mm to 0.45mm Steel Strip Width 185 Transport Package by 20gp or 40gp Container Specification SGS, ISO9001-2008, BV Trademark CNM Origin Hennan Province HS Code 8455212000 Production Capacity 200 Sets Per Month

Product Description

50mmx20mm, 70mmx20mm Oval Post Tension Flat Duct Machine  (Call us: Mobile No: +8613673713569)




1. Machine working flow:

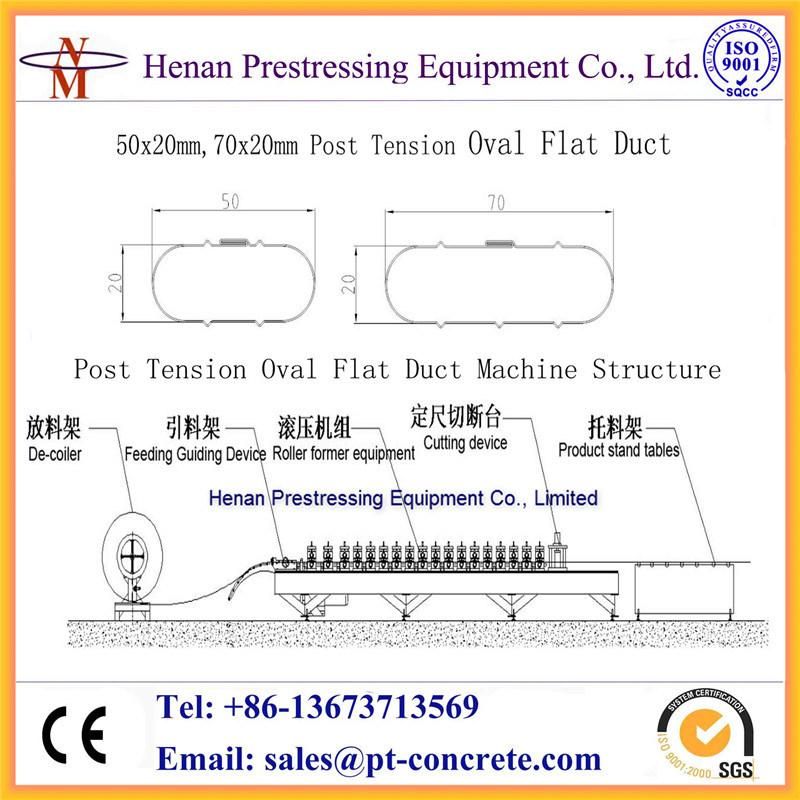

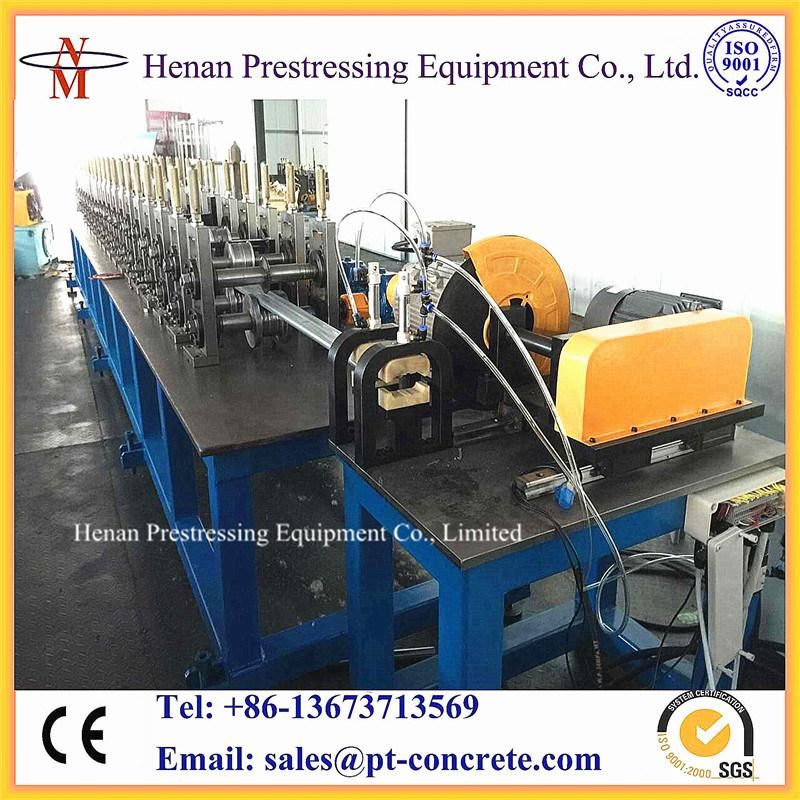

Manual De-coiler machine→Feeding & Guiding Device→Roller Forming Equipment→Saw Cutting Device→Product Stand Tables

2. Production line layout (for reference):




3. Raw Material Info:

Material type: Galvanized Steel
Material thickness: 0.35mm to 0.4mm
Material Width: 185mm
Yield Strength: Q195

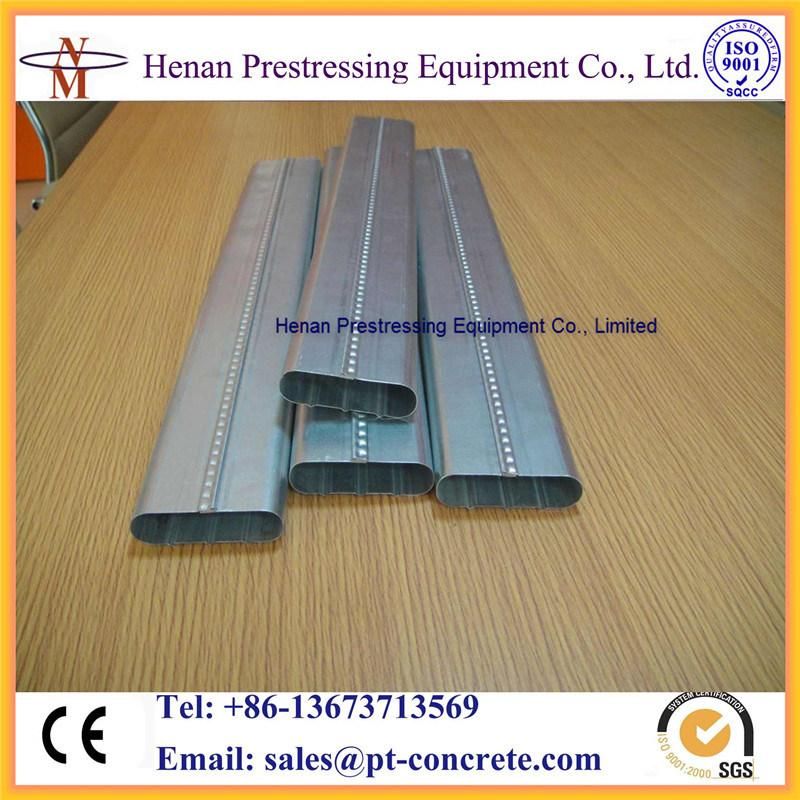

4. Forming Post-Tension Oval Flat Duct Sizes: 50mm*20mm, 70mm*20mm, 90mm*20mm, 100mm*20mm

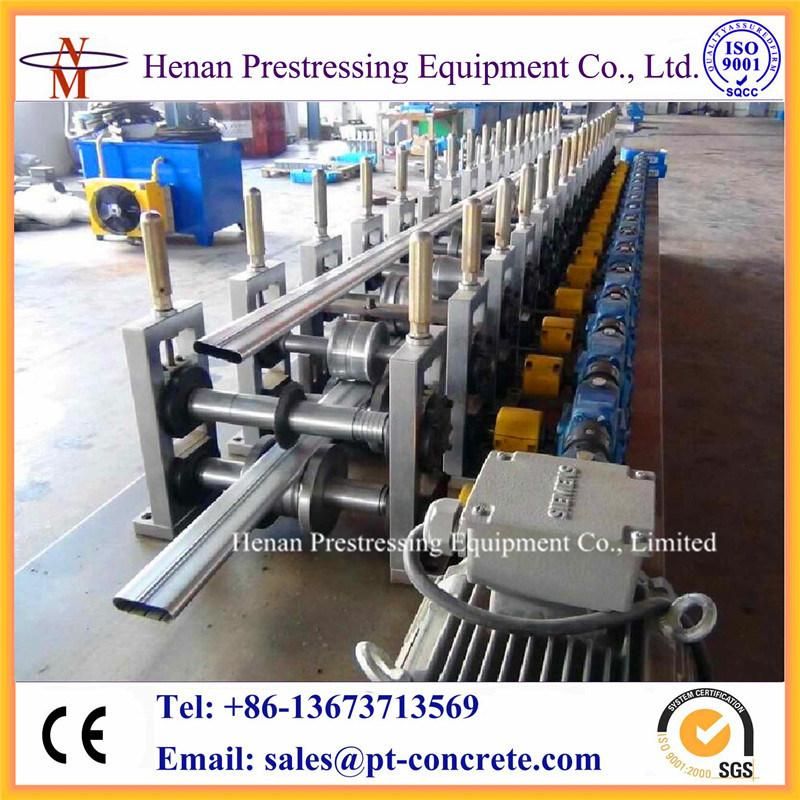

5. Post-Tension Oval Flat Duct Machine Specifications:

Forming speed: 0~4M/Min

Product speed: 0~4M/min

Roller material: #45 steel

Forming stations: 18 stations

Shaft diameter: 40mm

Shaft material: 40Cr

Forming structure: Guiding column

Machine base frame: tube welding structure

Transmission type: gear box

Motor power of main machine: 7.5KW*1set

Motor brand of main machine: SIEMENS

Bearing: needle roll bearing, taper bearing

Bolt: 8.8 grades

Cutting type: saw cutting

Whole Line dimension: about 15m*1.25m*2.0 m (L*W*H)

Machine installation area: 25*3m (L*W)

Voltage: 380v/415v, 50 Hz, 3phase.




6. Computer control box:

PLC->Japan Mitsubishi

Frequency Inverter-> American Emerson

Encoder->Japan OMRON

Touch Screen->MGCS 10 inch big size

Emergency stop button

Aviation plug, Remote controller

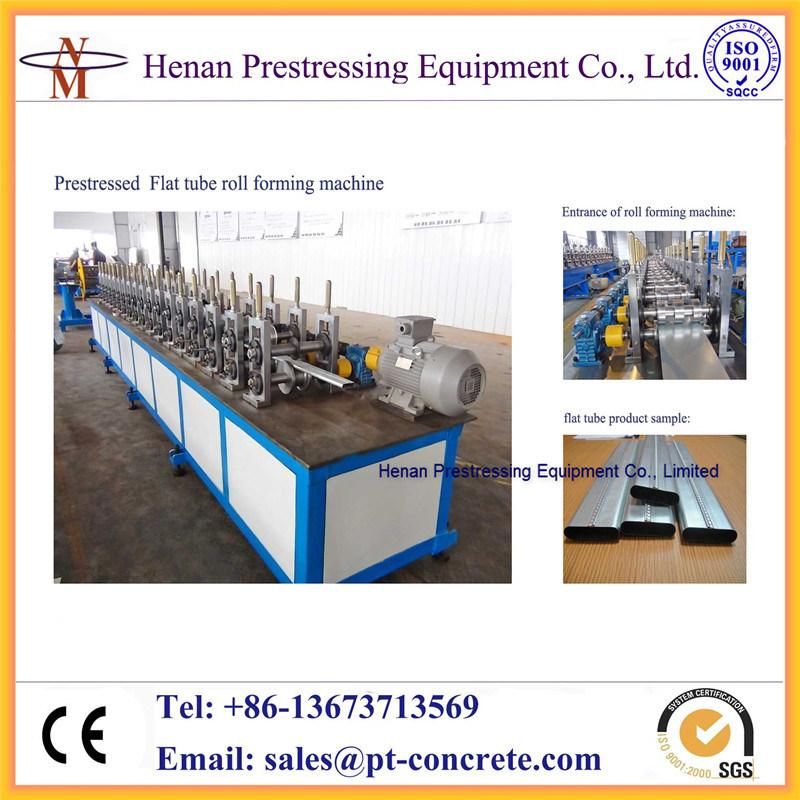

 7. Machine components:

1. 3tons Manual De-coiler→1 set
2. Feeding Guiding Device→1 set
3. Roll forming machine→1 set
4. Guiding Rail Saw Cutting Device→1 set
5. Expend mouth machine→1 set
6. Hydraulic station→1 set
7. Expend mouth mold→1 pcs
8. Computer control box→1 units
9. Product stand tables→1 set

OUR ADVANTAGES (Call us: Mobile Phone: +8613673713569)

Henan Prestressing Equipment Co.,Limited manufacture full complete post tension components, materials and post tension equipment for buildings and bridge construction. Kindly please call us: Mobile Phone. +8613673713569.

Our Product Ranges:

1. Anchor System: unbonded monostrand anchor system, multistrands anchor system, flat anchor system, arch type flat anchor, anchor barrel and wedges, ground anchor, rock and soil anchor, anchor wedges, anchor bearing plate, spiral reinforcing rings.

2. PC Strand System: unbonded pc strand, bonded pc strand, 12.7mm prestressed cable, 15.24mm prestressed strand, epoxy coated pc strand,galvanized pc strand, 6mm, 7mm, 9mm pc steel wire.

3. Duct System: galvanized metal duct, HDPE plastic duct, curved type galvanized metal duct, flat duct, corrugated pipe.

4. Heavy equipment: bridge girder launching machine, drilling rig, bridge girder transporter

Contact with us:  call us: Mobile No: +8613673713569.

Post Tesnion Oval FLat Duct Machine




FAQ: (Call us: Mobile Phone: +8613673713569)

1). Q: What information should provide before placing order?
We are appreciated you provide us detail information about your requirement:
1. Inner Diameter Duct you need.
2. Voltage for machine.
3. What is your required Destination Port.
4. Order Quantity.

2) Q: How is the delivery lead time:
A: Goods in stock: within 3 days, Goods out of stock(7 days), Goods need to be customized(10-15 days).

3) What is your Minimum Order?
A: MOQ: 1 Set.

4) Q: Payment Terms?
A TT, LC, Western Union, Paypal, etc.

5) Q: How to transport the goods:
A: by shipping, airflight, express.


CONTACT WITH US:
Mobile  Phone No.: +8613673713569
Jason Wang
