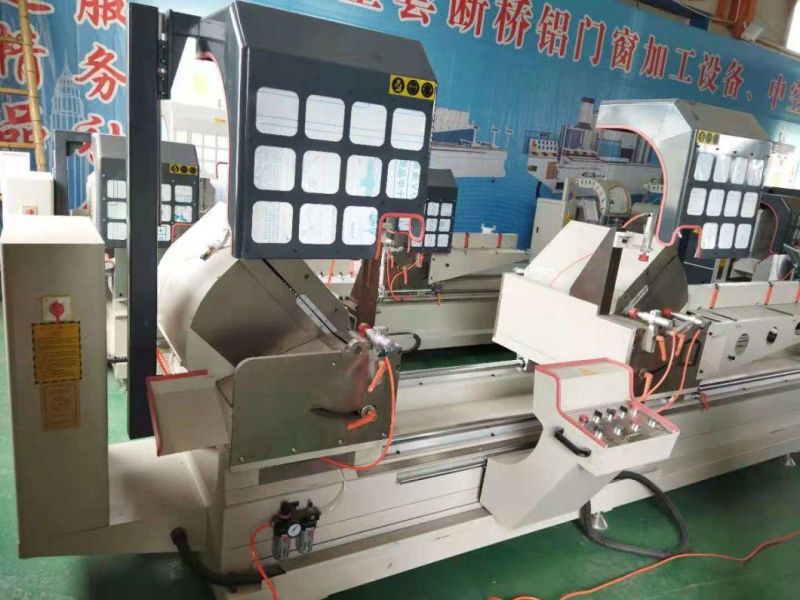

Ljz2-500X4200 Double-Head Saw CNC Cutting Machine, Aluminum and Plastic Cutting Machine, Window Door Making Machine
Shandong Zunbo CNC Equipment Co., Ltd.- After-sales Service:Lifetime Maintenance
- Warranty:1 Year
- Condition:New
- Certification:ISO, CE
- Automatic Grade:Automatic
- CNC or Not:CNC
Base Info
- Model NO.:LJZ2-500X4200
- Voltage:380V
- Numerical Control:CNC,Mnc
- Performance Classification:MID-Range CNC Machine Tools
- Application:Window
- Specification:5800*1500*1800 mm
- Trademark:Zunbo
- Origin:China
Description
Basic Info.
Model NO. LJZ2-500X4200 Voltage 380V Numerical Control CNC/Mnc Performance Classification MID-Range CNC Machine Tools Application Window Specification 5800*1500*1800 mm Trademark Zunbo Origin ChinaProduct Description
Product Description:
Model: LJZ2-500X4200Carbide saw blades have high machining accuracy and high durability.
High-precision spindle, stable rotation of the saw blade.
The gas-liquid damping mechanism realizes uniform feed speed regulation and stable movement.
The feed system adopts linear guide rail movement with high precision and good stability.
The two-head saw can automatically switch the angle to realize the angle cutting of -45° and 90° profiles.
Equipped with automatic opening and closing protective cover, making work more convenient.
Technical Parameter:
Power source: 380V 50HZ
Saw head motor: 4.4kW
Working pressure: 0.5~0.8MPa
Blade rotational speed: 2800r/min
Cutting length: 400-4200mm
Saw blade specification: D--500mm, d-30mm
Cutting angle: 90°, -45°
Dimensions: 5800× 1500× 1800 mm
