Building Material Making Machinery

High Precision Aluminium Windows and Doors Double Head Cutting Machine with Digital Display

JINAN YUEFENG MACHINERY CO., LTD.
  • Condition:New
  • Certification:ISO, CE
  • Automatic Grade:Semi-Automatic
  • CNC or Not:not CNC
  • Voltage:380V
  • Model:Ljz2-500*4200

Base Info

  • Model NO.:LJZ2-500×4200(5000)
  • Input Voltage:380,220V 50Hz
  • Input Power:4.5kw
  • Air Pressure:0.5~0.8MPa
  • Air Consumption:200L,Min
  • Cutting Width:10~130mm
  • Cutting Height:10~300mm
  • Cutting Length:360-4200 mm
  • Saw Blade Feeding:0-3 M,Min
  • Spindle Speed:3200 R,Min
  • Saw Blade Standard:500*4.4*30*120
  • Overall Dimension:5500*1700*1600 mm
  • Transport Package:Plastic Film or Depends on Demand
  • Specification:5500*1700*1600 MM
  • Trademark:Yuefeng
  • Origin:Jinan Shandong, China
  • HS Code:8477800000
  • Production Capacity:30 Sets,Month

Description

Basic Info.

Model NO. LJZ2-500×4200(5000) Input Voltage 380/220V 50Hz Input Power 4.5kw Air Pressure 0.5~0.8MPa Air Consumption 200L/Min Cutting Width 10~130mm Cutting Height 10~300mm Cutting Length 360-4200 mm Saw Blade Feeding 0-3 M/Min Spindle Speed 3200 R/Min Saw Blade Standard 500*4.4*30*120 Overall Dimension 5500*1700*1600 mm Transport Package Plastic Film or Depends on Demand Specification 5500*1700*1600 MM Trademark Yuefeng Origin Jinan Shandong, China HS Code 8477800000 Production Capacity 30 Sets/Month

Product Description

High Precision Aluminium Windows and Doors Double Head Cutting Machine with Digital Display

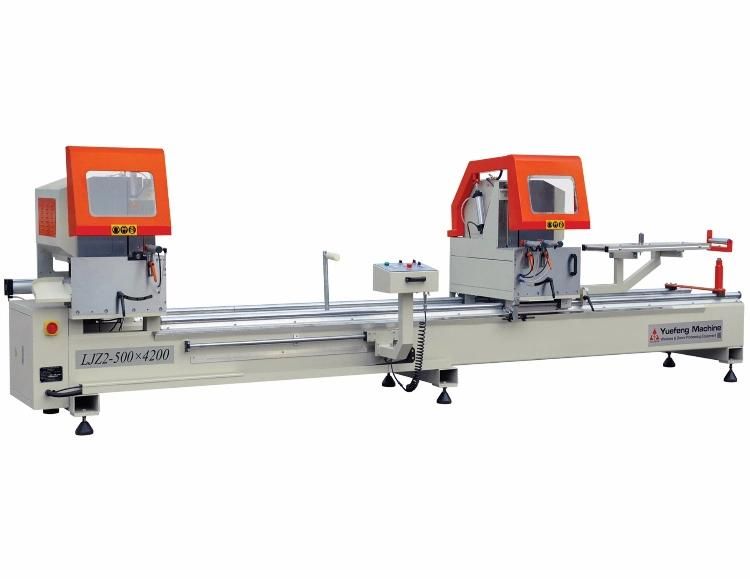

LJZ2-500×4200(5000)   Aluminium Double Head Cutting Machine with Digital Display
High Precision Aluminium Windows and Doors Double Head Cutting Machine with Digital Display
Feature

>Two heads work independently or together.

>Uniform speed feeding and smooth motion due to air-draulic damping cylinder.

>Saw blade feeding system adopts imported linear guide pair, with high accuracy and smooth working.

>Automatic protecting guards result convenience and safety.



Technical Parameter:
ModelLJZ2-500×4200(5000)
Input voltage380V 50Hz
Input power4.5Kw
Air pressure0.5~0.8MPa
Air consumption200L/min
Spindle speed3200r/min
Cutting length360~4200mm(360~5000mm)
Cutting width10~130mm
Cutting height10~300mm
Cutting angle90° 45° 67.5°
Saw feeding speed0~3m/min
Saw blade standardφ500×4.4×φ30×Z120
Overall dimension5500(6300)×1700×1600mm


High Precision Aluminium Windows and Doors Double Head Cutting Machine with Digital Display
High Precision Aluminium Windows and Doors Double Head Cutting Machine with Digital Display
High Precision Aluminium Windows and Doors Double Head Cutting Machine with Digital Display
High Precision Aluminium Windows and Doors Double Head Cutting Machine with Digital DisplayFAQ
1.Are your company a trading one or a factory?
Factory + trade (integration), 35 years' focusing on Upvc,Aluminum Window and Doors Equipment ,insulating
glass equipment and curtain wall equipment.


2.After an order is placed, when to deliver?
 Generally about 15 days,  If  we have inventory, we can arrange shipment within 5 days.
 Please be aware that our production lead times depend on specific items and item quantities.


3.What about the warranty with after - sales services?
 12 months warranty. Besides,we can help you to solve your problem freely;
After the warranty,the professional after-sale service team will provide perfect technical support,and help customers solve problems ,encountered while using our products.Handles guest problems and complaints in a professional and timely.


4.What about the services and product' quality?
 Each machine must be carried out 100% quality examination and test before shipment.
 And all machines meet ISO and CE certification.


5. We don't know the machine operation, what should we do?
 We can send engineer to your place, or we provide video training to show you how to install & operate, let engineer help you online.
