Kexinda Double Layer Roofing and Wall Panel Roll Forming Machine

HEBEI XINNUO ROLL FORMING MACHINE CO., LTD.
  • Tile Type：Colored Steel
  • Certification：CE, ISO
  • Condition：New
  • Customized：Customized
  • Usage：Roof
  • Transmission Method：Electric

Base Info

  • Specification：KXD 840-850
  • Trademark：KEXIDNA
  • Origin：China
  • Production Capacity：2000 Sets,Year

Description

Basic Info.

Specification KXD 840-850 Trademark KEXIDNA Origin China Production Capacity 2000 Sets/Year

Product Description

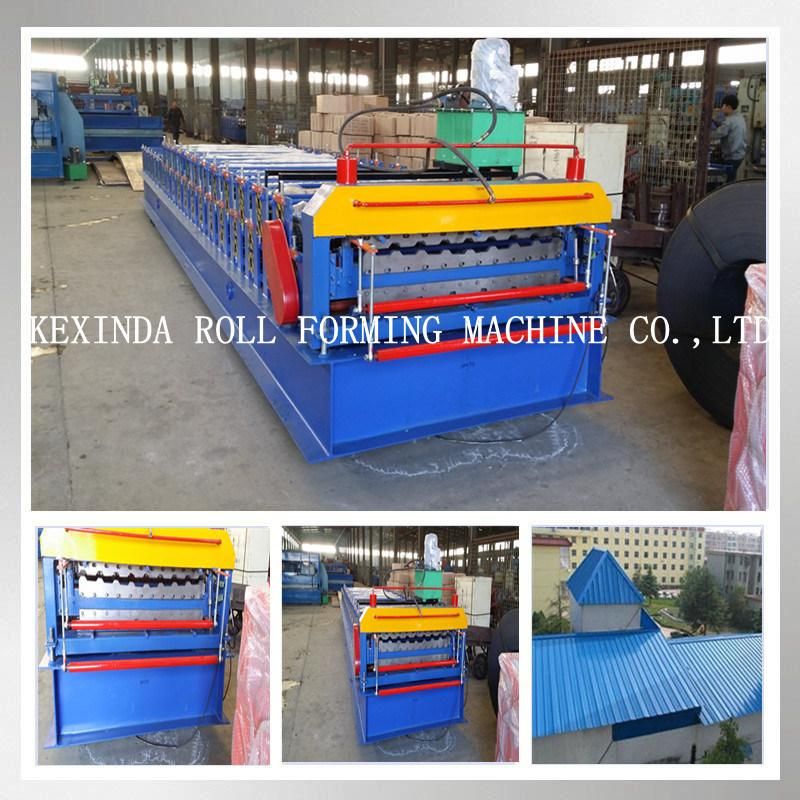

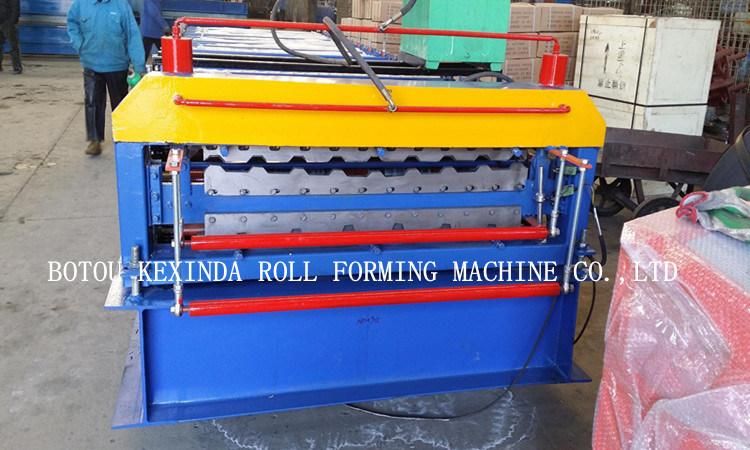

KEXINDA Double Layer Roofing and Wall Panel Roll Forming Machine


TECHNICAL PARAMETER:

Units including: manual decoiler ,main machine for roll forming ,post cut, hydraulic system ,PLC ontrol ,stacking





1.control system: automatic PLC frequency control ,text screen.





2.roller steps:9/11 rows





3.main power:4kw





4.pump power:4kw





5.Diameter of roller: Φ72mm





6.max speed:12m/min





7.feeding width:1000mm





8.the effective width:850/840mm,tolerance ±1/100





9.thickness of the plate:0.35-0.6mm





10.the dimension of main roll former: 7600mm×1300mm×1450mm



11.roller material:45#steel,CNC-machined ,heat treatment, buffing, surface for electroplating chromium 0.05mm
