• Model NO.：Lbj2500c
• Voltage：380V
• Model：Lbj2500c
• Input Voltage：380V 50Hz
• Power：28kw Operation + 10kw
• Maximum Processing Size：2500*3500mm
• Minimum Processing Size：500*300mm
• Original Film Processing Thickness：4-15mm
• Transmission Speed：5-45m,Min
• Dimensions：24800*2700*3600mm
• Transport Package：Wooden Box
• Specification：24800*2700*3600mm
• Trademark：YueFeng
• Origin：China
• HS Code：8477800000
• Production Capacity：4000 Window Per Day

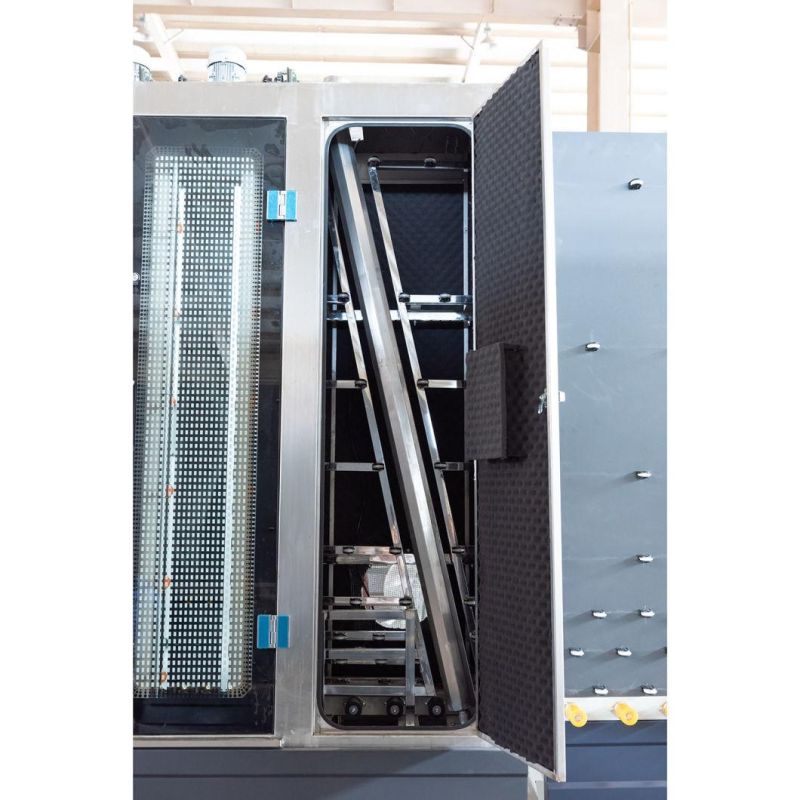

1. All parts of the cleaning cabinet body are made of thick stainless steel, and the parts and screws in contact with water are all stainless steel or waterproof aluminum, which will not rust after long-term use and is easy to maintain.
  2. The cleaning machine adopts upper transmission and double-layer structure to avoid the aging and leakage of the cleaning box seal and is convenient for maintenance.
  3. The washing machine adopts integral rubber roller drive, and the distance between the two rubber rollers can be automatically adjusted by the spring according to the thickness of the cleaning glass, and the glass of 4-15mm can be cleaned.
  4. Three sets of brushes are used to clean the glass, six high-quality 1010 nylon filament brushes and six water sprays, the glass is cleaned, and the speed is fast (5-12m per minute) to clean LOW-E and coated glass.
  5. The brush device has a front and back adjustment function. If the brush is worn out, it can be adjusted forward and used for multiple times to improve the service life of the brush.
  6. With automatic identification of LOE-E, coated glass device, can automatically identify the front and back of LOE-E, coated glass, the first group of coarse brushes will automatically withdraw to avoid damage to the film.
  7. The air knife and backrest wheel support in the drying box are all made of stainless steel to avoid secondary pollution after glass cleaning.
  8. The glass transmission in the drying box is designed to be driven by rubber rollers at the bottom, which is stable and reliable without slipping.
  9. Reasonable air knife angle design and air duct layout make the glass drying effect better.
  10. Circulating wind design, energy saving and low noise of glass drying system.
  11. The bearings used in the cleaning machine are all stainless steel precision high-speed bearings with high precision and stable operation.
  12. The humanized design of the upper section, when placing a large piece of glass, step on the foot switch to stop the transmission, and the placement is complete; step on the foot again to start the transmission, which is convenient for operation and ensures the personal safety of the operator.Features of plate press1. The unique design of the plate press uses servo motors, precision timing belts, precision ball screws, precision lifting mechanisms, etc. to drive work.
   2. Using servo motor drive mode to control the pressing, back sealing, and lowering of the plate, so that the plate press is stable and the pressure is uniform, and the sealing performance of the hollow glass is better.

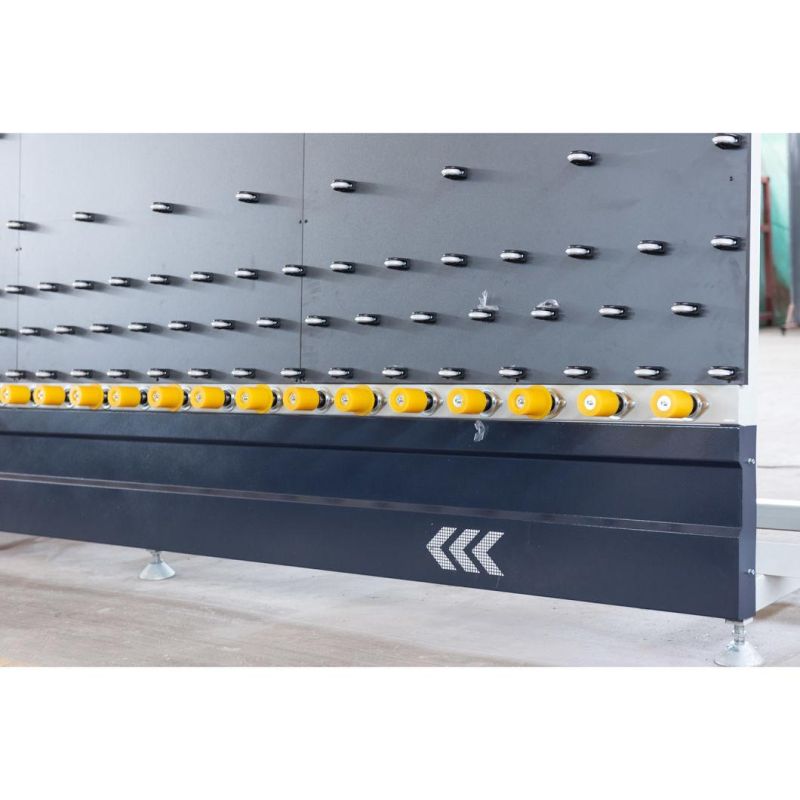

   3. The board pressure air float is directly introduced into the national standard rectangular tube, which is conducive to the air floatation, does not block, the glass runs in place, there is no groove in the board, and the board is not easy to deform.

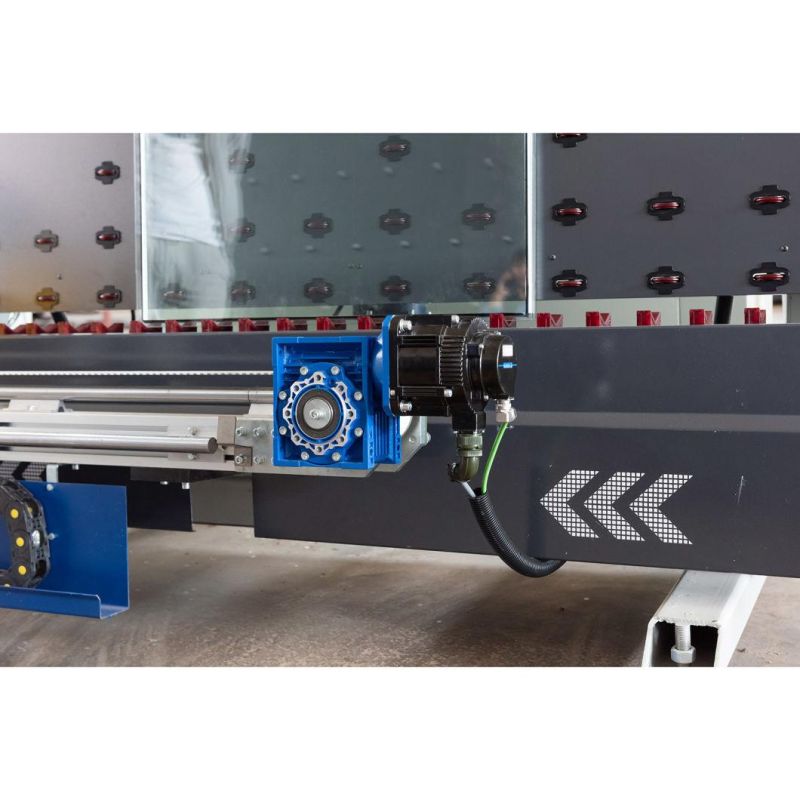

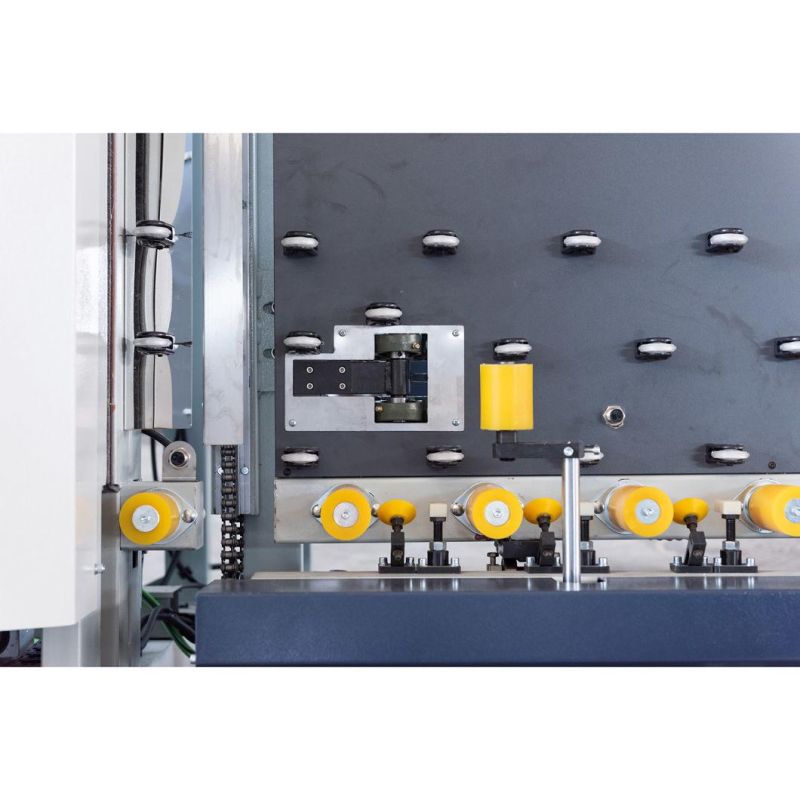

   4. The glass positioning cylinder in the plate adopts an oblique structure, which is impact resistant and ensures that the glass runs in place and is a good piece. The stepping motor and driver of American Star are used to position the large and small pieces of glass laterally to realize the processing of the hollow glass of the curtain wall.
5. Reasonably distribute the position of the suction cups to make the glass adsorption more stable; reasonably distribute the inflatable components, and reasonably seal the inflatable cavity, so that the inflating work is more gas-saving and cost-effective. Power source380v 50HzPower28kw operation + 10KW (4kw water heating + 6kw blowing heating)Maximum processing size2500×3500mmMinimum processing size500×300mmOriginal film processing thickness4-15mmTransmission speed5-45m/minDimensions24800×2700×3600mm
Configuration of main components

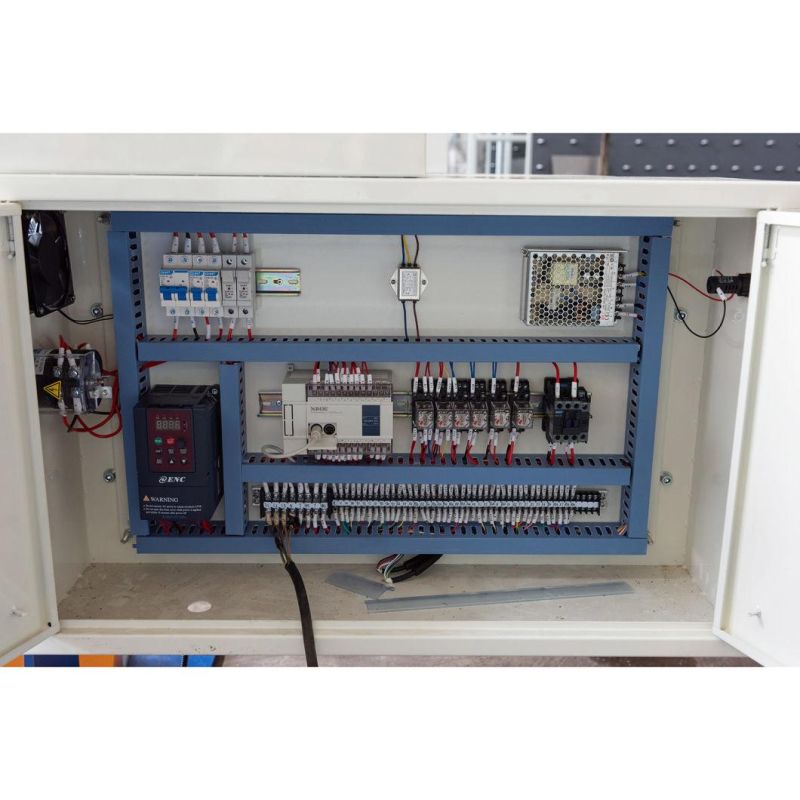

  Program Controller SiemensSiemens GermanyServo motor,Servo driveSiemens GermanyInverterSiemens GermanyLow-voltage electrical componentsSiemens GermanyTouch screenWeilun TaiwanPhotoelectric switchAutonics KoreaVacuum generatorYSC TaiwanSolenoid directional valveairtac taiwan

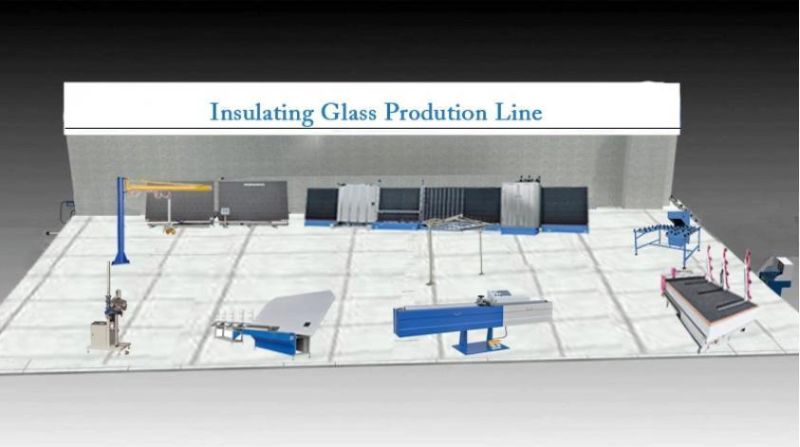

More machine details pictures
Work flow of internal inflatable board pressing line

The glass is placed from the first section, after being cleaned by the washing machine, it is transported to section 03; when the photoelectric detection of the glass at the head of section 03, the head transmission of section 03 starts to run at low speed, when the photoelectric detection of the glass in the middle of section 03, the end of section 03 Conveyance runs at low speed. When the glass leaves the head of section 03, the head conveyor of section 03 runs at high speed, and the tail conveyor of section 03 also runs at high speed. When the glass reaches the end of section 03, the photoelectric at the end of section 03 detects the glass, and the conveyor of section 04 starts to run at high speed. When the first piece of glass reaches the end of section 04 (the photoelectrically detected glass at the end of the 04), the glass runs at a low speed to section 05. When the photoelectrically detected glass at the head of section 05 and the beam of section 05 rises to the top, the glass quickly enters section 05 When the plate press returns to the parameters, the glass directly enters the plate press at high speed, and the front glass shield of the plate press extends. When the glass reaches the end of the plate press at high speed (the photoelectric detection of the glass at the end of the plate press), The plate press runs at a low speed to make the glass reach the positioning device slowly (transmission stops), the lower joist of the plate press holds the glass in place, presses the movable plate forward and sucks the glass with a suction cup, and then retreats to the original position while lowering the support The beam descends and resets and waits for the second piece; when the second piece of glass is cleaned by the washing machine, the sequence reaches the end of section 04 and stops. At this time, the positioning device of section 04 is working, and the aluminum frame coated with butyl hot melt is convenient Paste it on the glass, check that there is no problem (and there is no glass at the end of section 05), step on the foot switch at the end of section 04, and the glass will enter section 05 sequentially. When the glass reaches the end of section 05, if there is no When the glass (06 tail photoelectric does not detect the glass), the glass enters the plate press in sequence; when the glass reaches the tail of the plate press (the photoelectric at the tail of the plate press detects the glass), the conveying of the plate press stops (the glass stops); this When the glass is held up by the lower bracket of the plate press, the outlet sealing device of the plate press works to seal the outlet direction of the plate press, and the inlet sealing device of the plate press works. According to the precise measurement of the glass length, the The entrance direction of the plate press is sealed, and then the movable plate moves forward to a certain position according to the input glass parameters (or automatically measured glass parameters), and the sealing device under the plate press extends forward to push the plate press The lower part of the glass is sealed, and then according to the parameter setting, the inflator is used to inflate the glass cavity (inert gas) from the lower part of the plate press; when the preset inflating time is reached, the plate press further forwards the glass At the same time, the inflator will inflate the glass at high pressure. When the plate press is pressing the glass, the inflation will stop. After the glass is pressed to maintain the pressure, the outlet sealing device will return, the movable plate of the plate press will return, and the lower joist will drop. When the board retreats to the origin position (while the lower joist drops to the origin), the glass is conveyed, and the entrance sealing device is reset at the same time, and the glass is conveyed to the end of section 07.
