Aluminum UPVC Window Door End Milling Machine

JINAN YUEFENG MACHINERY CO., LTD.
  • Condition：New
  • Certification：ISO, CE
  • Automatic Grade：Automatic
  • CNC or Not：not CNC
  • Voltage：380V
  • Model：Lxd-200

Base Info

  • Model NO.：LXD-200
  • Input Voltage：380V 50Hz
  • Input Power：1.5kw
  • Air Pressure：0.4~0.6MPa
  • Air Consumption：100L,Min
  • Motor Rotation Speed：2800r,Min
  • Max Processing Hole：200*42.5*75mm
  • Milling Cutter Diameter：115~200mm
  • Overall Dimension：880*830*1390mm
  • Transport Package：Wooden Case
  • Specification：2300*1200*1700mm
  • Trademark：YueFeng
  • Origin：Jinan, China
  • HS Code：8477800000
  • Production Capacity：30set,Month

Description

Basic Info.

Model NO. LXD-200 Input Voltage 380V 50Hz Input Power 1.5kw Air Pressure 0.4~0.6MPa Air Consumption 100L/Min Motor Rotation Speed 2800r/Min Max Processing Hole 200*42.5*75mm Milling Cutter Diameter 115~200mm Overall Dimension 880*830*1390mm Transport Package Wooden Case Specification 2300*1200*1700mm Trademark YueFeng Origin Jinan, China HS Code 8477800000 Production Capacity 30set/Month

Product Description

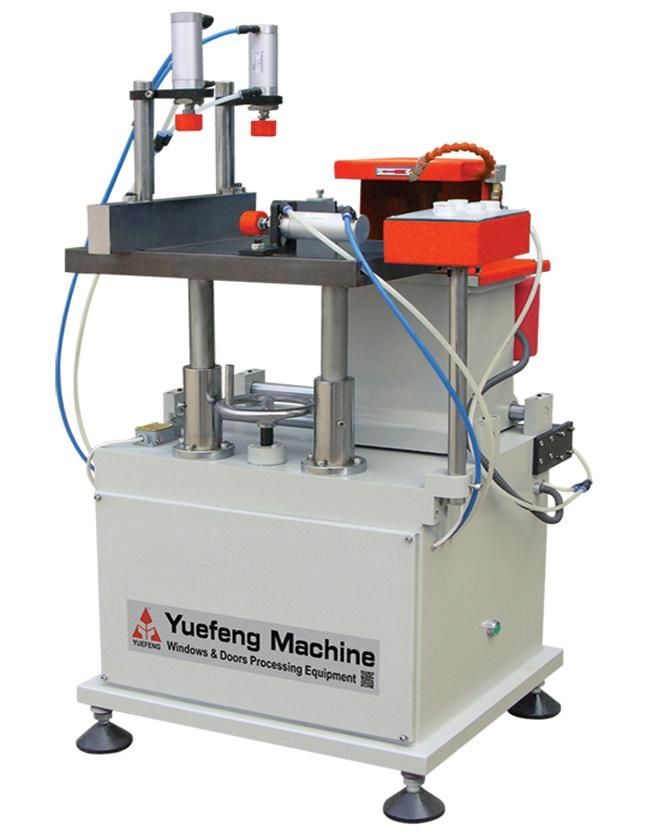

LXD-200    End Milling MachineAluminum UPVC Window Door End Milling Machine

Feature

1.Used for processing various profiles' end.
2.Worktable can adjust vertically to make it suitable for different profiles.

Technical Parameter:

ModelLXD-200
Input voltage380V 50Hz
Input power1.5kw
Air pressure0.4~0.6MPa
Air consumption100L/min
Motor rotation speed2800r/min
Milling angle-65°~ +65°
Max milling range200×42.5×75mm
Milling cutter diameterφ115~200mm
Overall dimension880×830×1390mm
