• Model NO.：CY2-25
• Moulding Cycle：20-30s
• Power：4kw
• Products：Soil Interlocking Bricks
• Operator：2-3
• Rated Pressure：16-22MPa
• Machine Size：1050*800*1200mm
• Machine Weight：700kg
• Hydraulic Station：Storage of Hydraulic
• Electric Motor or Diesel Engine：4kw,5.5 HP
• Extra Mold：Changing Mold for Different Design of Brick and PA
• Electric Power：Electricity Must Be 3phase,50,50Hz,380V,440V,220V
• Worker：2-3 Workers
• Factory Area：600-1000m2
• Transport Package：Plywood Box with Iron Angle Frame
• Specification：Electric brick machine
• Origin：China
• HS Code：8474802000
• Production Capacity：30sets , Month

Basic Info.

Model NO. CY2-25 Moulding Cycle 20-30s Power 4kw Products Soil Interlocking Bricks Operator 2-3 Rated Pressure 16-22MPa Machine Size 1050*800*1200mm Machine Weight 700kg Hydraulic Station Storage of Hydraulic Electric Motor or Diesel Engine 4kw/5.5 HP Extra Mold Changing Mold for Different Design of Brick and PA Electric Power Electricity Must Be 3phase,50/50Hz,380V/440V/220V Worker 2-3 Workers Factory Area 600-1000m2 Transport Package Plywood Box with Iron Angle Frame Specification Electric brick machine Origin China HS Code 8474802000 Production Capacity 30sets / Month

Product Description

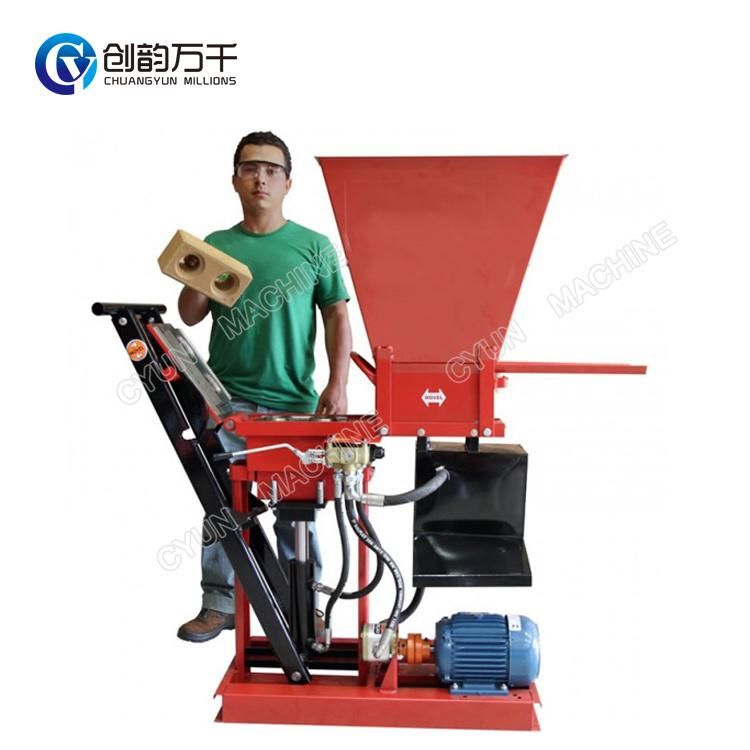

CY2-25 cheap and small semi automatic soil cement interlocking brick machine price










Features

1. CY2-25 clay block machine is our newest clay and cement brick making machine.
2. You can choose diesel engine or electric motor. This machine enable to produce varied models of blocks, bricks and floors in only one equipment, without the need of buying another machine.
3. Manufactured with precision in a Machining Center, its interior receives a thermal treatment and is rectified. Compound by modeler wombs interchangeable enabling flexible of different forms and models for the pressed blocks, bricks and floors.

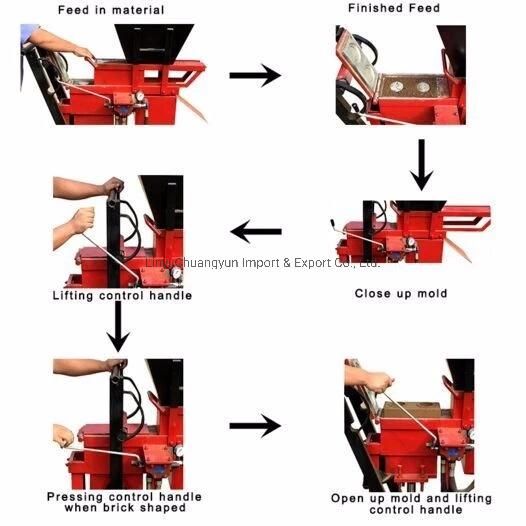

Brick making process

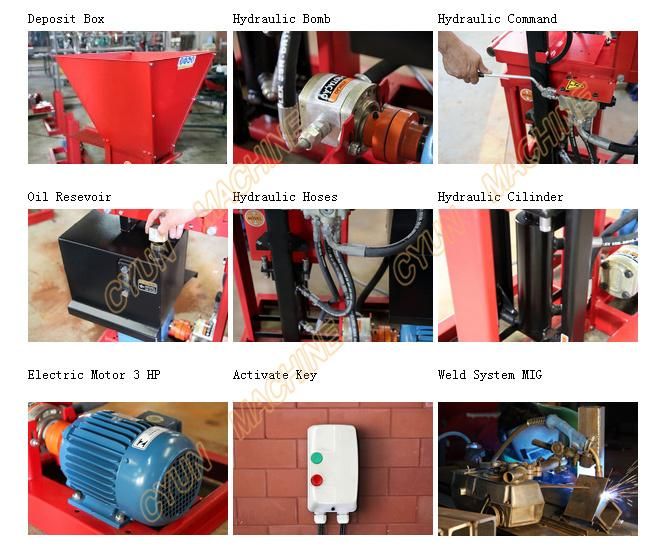

Machine details





Technical specifications:

Machine power	Electric or diesel engine
Molding cycle	20s
Capacity	1400pcs/8hours
Raw material	clay,soil,earth,mud,concrete, sand,cement, fly ash,etc.
Machine weight	500KGS
Overall size	1200*800*1750mm
Worker	1 people
Hydraulic pressure	16 Mpa

Production capacity

No.	Block size	Pcs/mould	Pcs/hour	Daily capacity
1	300*150*100mm       or 250*125*75mm	1	180-200	1400-1500

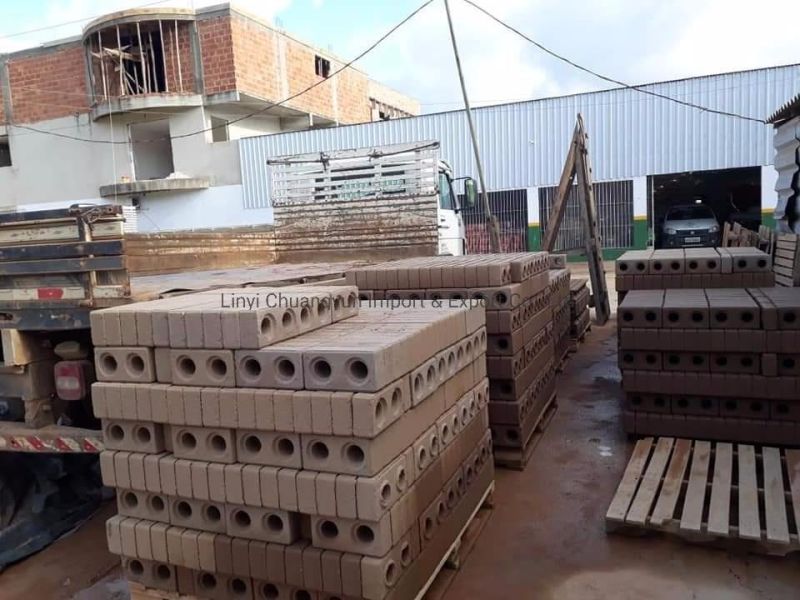

 Applied fields: It is widely used in buildings, road paving, squares, gardens, landscaping, city constructions etc.
