• Name：Zinc 312 Ridge Cap Steel Light Keel Panel Machine
• Raw Material：PPGI Sheet
• Thickness Range：0.3-0.8mm
• Machine Power：4kw+3kw
• Work Speed：8-10m,Min
• Shaft Material：45# High Grade Forge Steel ,Chrome Coated 0.05mm
• Machine Weight：About 3 Tons
• Operation Type：Touchig Screen
• Warranty：12 Months
• Afer-Sales Service：Engineer Is Availble to Overseas
• Transport Package：Plastic Film & Steel Wire Fixed
• Specification：3500mm*500mm*700mm(L*W*H)
• Trademark：NEXUS MACHINERY
• Origin：Cangzhou, China
• HS Code：8455221000
• Production Capacity：30 Sets , Months

New Products Zinc 312 Ridge Cap Steel Light Keel Panel Roll Forming Machine Price
 1

Cutting&Hydraulic type

Double guide pillar

2

Hydraulic motor power

3kw,4kw

3

Hydraulic Pressure

10-12MPa

4

Voltage

380V /3phase/ 50 HZ (or as your requirement)

5

Cutting  drive

Decelerating motor + Chain drive  gear all by high-frequency

6

Control System

Panasonic /Siemens / Schneider / Delta PLC

7

Length measurement

Encoder

8

Main Frame

300mm/350mm H-Beam or 350mm

9

Backboard Thickness

17mm/200mm

10

Chain Size

 1inch/2inch11 Feeding Material Better as your drawing or from our designer12 Feeding Thickness 0.18mm-0.8mm13 Effective width Better as your drawing or from our designer14 Productivity 12-20/min15 Roll Station 14rows& 14(according to different design)16 Roller Diameter  70mm/75mm(depend on different design)17 Roller material 45# steel18 Cutter material Cr12 mould steel heat-treated hardness of HRC = 60-62 degrees19 Total Weight 2t-12t20

Package of machine

Waterproofing membrane, standard export packing

21

ridge cap roll forming machine  of the Components

Manual decoiler-------------------1 set(5t)

Guiding Platform------------------1 set

Coil Strip Leveler------------------1 set

Main Machine of Roll Forming------1 set

Hydraulic Station------------------1 set

Supporter Table-------------------1 set

Coil Strip Leveler------------------1 set

4. Equipment list :


No.	Product Name	QTY
1	5T Manual decoiler	1
2	New Products Zinc 312 Ridge Cap Steel Light Keel Panel Roll Forming Machine Price  (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system)	1
3	Passive Output table	2
Sum		4

5. Guarantee:

1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

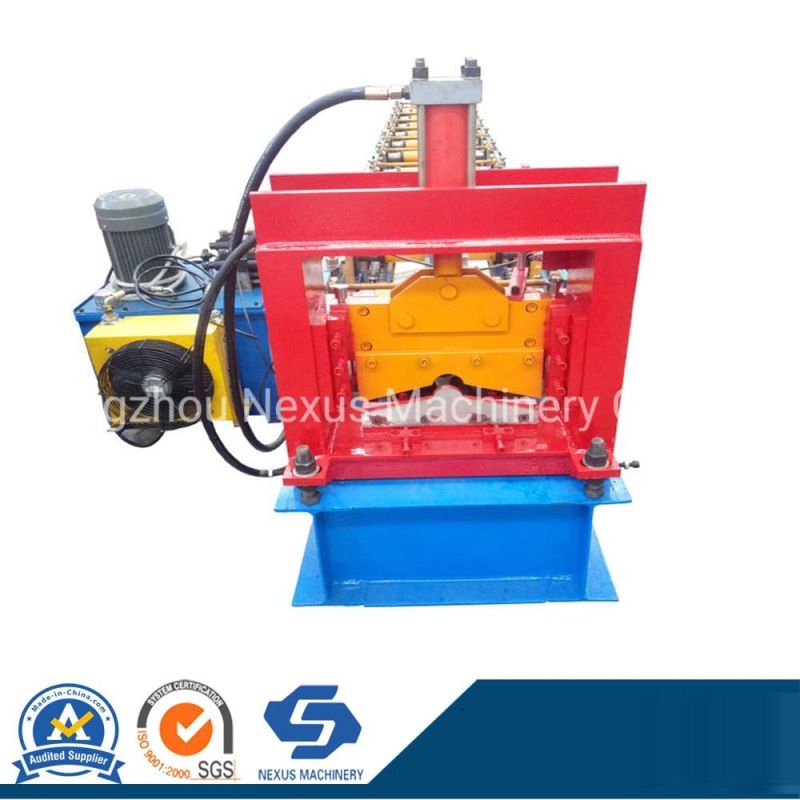

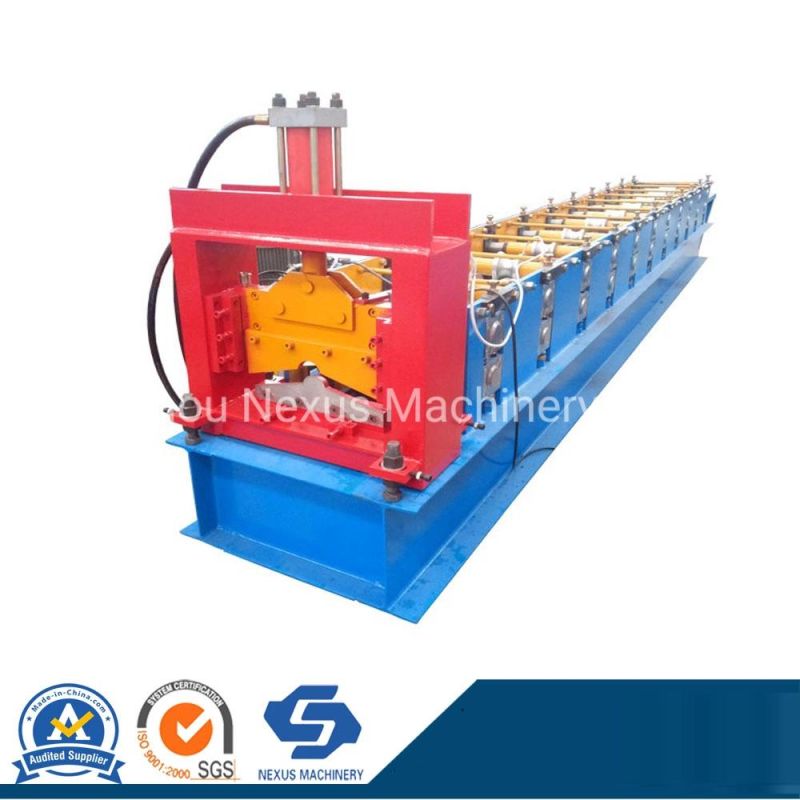

6. Photos of New Products Zinc 312 Ridge Cap Steel Light Keel Panel Roll Forming Machine Price for Reference:













ABOUT US:

Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.

Hot-Sale Products you Might Be Interesting:

Packing:
1. One 20feet container for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.
