Building Material Making Machinery

High Quality Carrying Furring Channel Roll Forming Machine for Philippine Market

Cangzhou Nexus Machinery Co., Ltd.
  • Warranty:1 Year
  • Certification:CE, ISO9001
  • Customized:Customized
  • Condition:New
  • Control Type:Electric
  • Automatic Grade:Automatic

Base Info

  • Model NO.:NM376
  • Name:Furring Carrying Channel Roll Forming Machine
  • Coil Material Thickness:0.3-0.6mm
  • Processing Material:Galvanized Steel
  • Roller Material:Cr12MOV
  • Forming Steps:10-16 Stations
  • Work Speed:15-20m,Min
  • PLC Brand:Delta,Panasonic,Siemens
  • Operation Type:Touching Screen with Buttons
  • Packing:1 Full Set of 20 Gp Container Load
  • Delivery Time:35 Days After Receive Deposit
  • Transport Package:Control Box and Easy Damaged Parts: Protective PA
  • Specification:3500mm*1800mm*1800mm (L*W*H)
  • Trademark:Nexus Machinery
  • Origin:Cangzhou
  • HS Code:8455221000
  • Production Capacity:30 Sets Per Month

Description

Feeding material

 PPGI / GI plate

Frame typesteel board weldedWidth of the plate94mmThickness of the plate0.3 - 0.75mmDimensions

3500mm*1200mm*1400mm

Diameter of the shaftΦ45mmRoller station12rowsProductivity15-20m/minMotor power to drive the machine5.5 + 4 kwVoltage380V 50Hz 3phase or as per requirementWeight2900kgsMaterial of the cutting headGr12 , heat treatment HRC58-60Machine framesteel board welding frameSide board thickness25mmHigh Quality Carrying Furring Channel Roll Forming Machine for Philippine Market
High Quality Carrying Furring Channel Roll Forming Machine for Philippine Market
High Quality Carrying Furring Channel Roll Forming Machine for Philippine Market

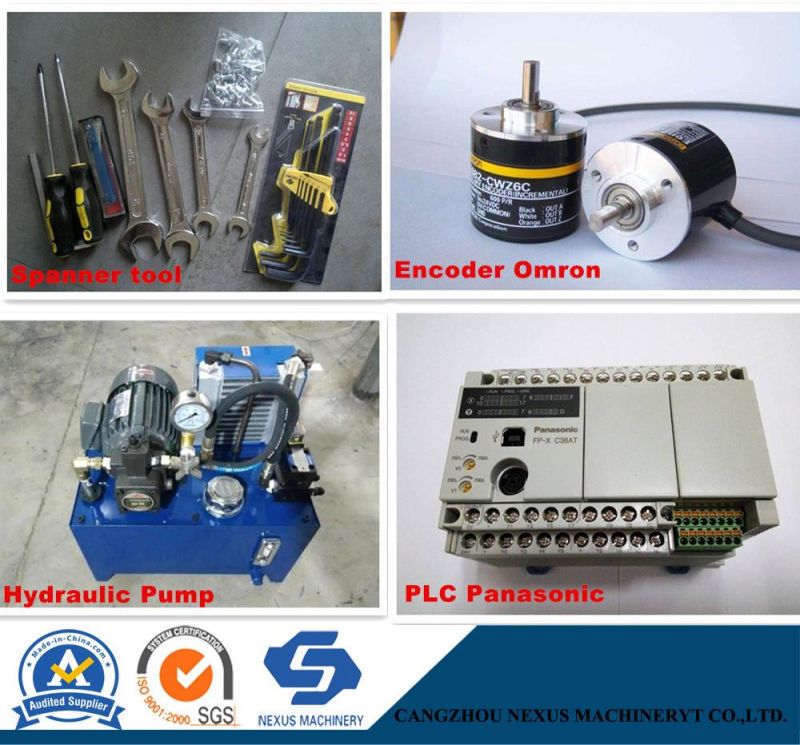

Electrical Devices:
High Quality Carrying Furring Channel Roll Forming Machine for Philippine Market
Exhibition Shows:

High Quality Carrying Furring Channel Roll Forming Machine for Philippine Market

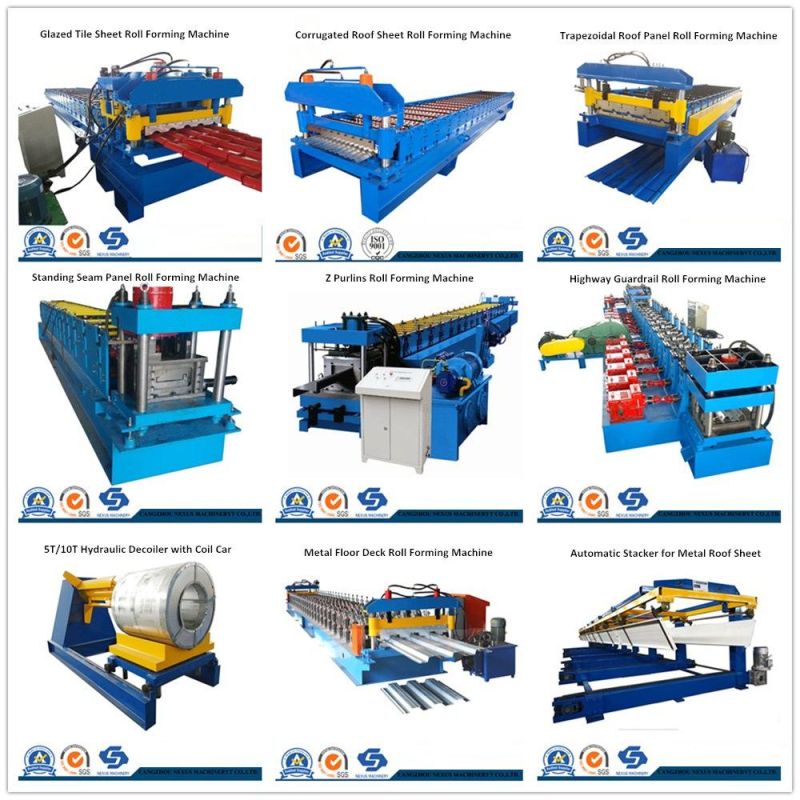

More Products for Choose:
High Quality Carrying Furring Channel Roll Forming Machine for Philippine Market
FAQ:
1. How long the machine could be made?- Normally speaking, light gauge steel frame machine could
be made within 45 working days. If you need machines in a hurry, we can make it for you
less than a month.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.

High Quality Carrying Furring Channel Roll Forming Machine for Philippine Market
