• Model NO.：NM348

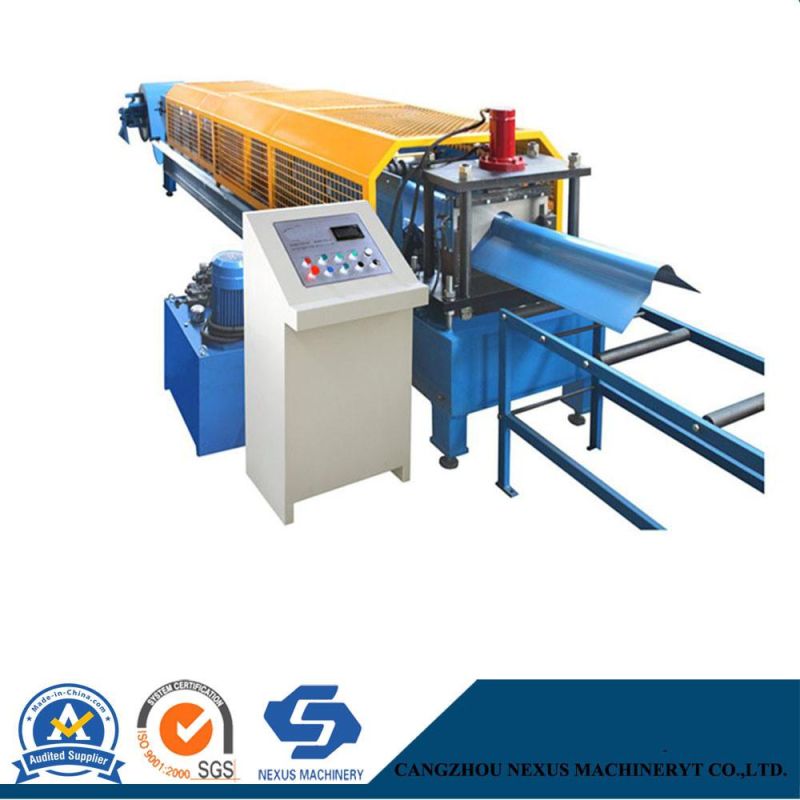

• Name：Metal Ribbed Ridge Cap Roll Forming Machine
• Raw Material：PPGI Sheet
• Thickness Range：0.3-0.8mm
• Machine Power：4kw+3kw
• Work Speed：8-10m,Min
• Shaft Material：45# High Grade Forge Steel ,Chrome Coated 0.05mm
• Machine Weight：About 3 Tons
• Operation Type：Touchig Screen
• Warranty：12 Months
• Afer-Sales Service：Engineer Is Availble to Overseas
• Transport Package：Plastic Film & Steel Wire Fixed
• Specification：3500mm*500mm*700mm(L*W*H)
• Trademark：NEXUS MACHINERY
• Origin：Cangzhou, China
• HS Code：8455221000
• Production Capacity：30 Sets , Months

No.Each Part Of The LineQuantityFunction And Usage1.5 Ton Uncoiler / Decoiler1 setHold the steel coils and unwind the coils2.Ridge Cap Cold Roll Former1 setRoll form the material into required profile3.Punching and Cutting Device1 setPunch ribs on formed ridge cap and cut to desired length4.Run Out Table2 setsSupport ridge cap when it exits the machine5.Electric Control Cabinet1 setHighly automatic with PLC control system6.Hydraulic Station1 setHydraulically powered for punching and cutting
1. Processing flow diagram of machine:

Decoiler→ Feeding →Roll forming →Measure length →Hydraulic cutting →Output table

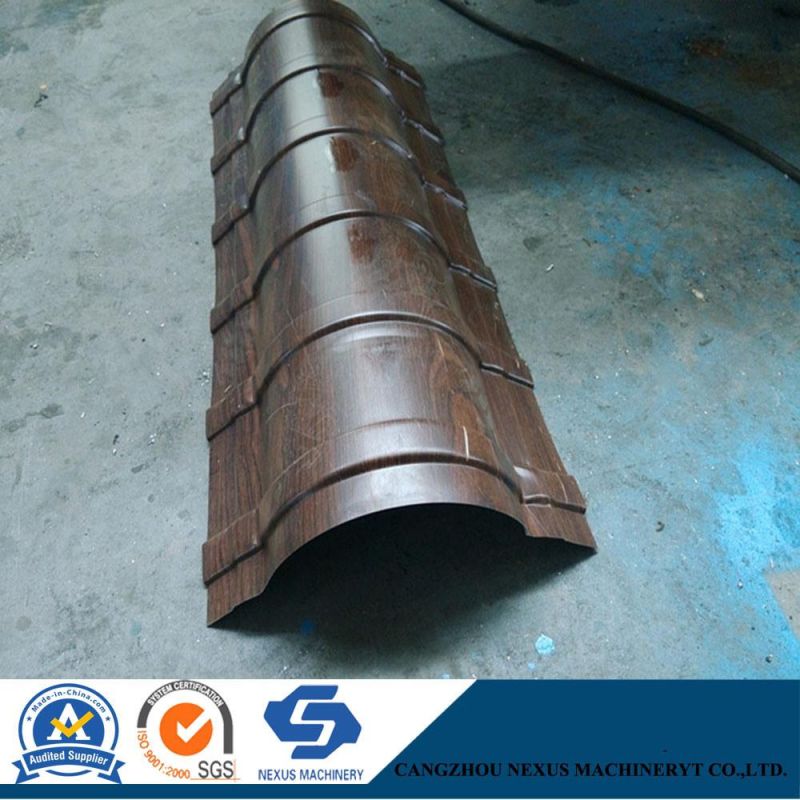

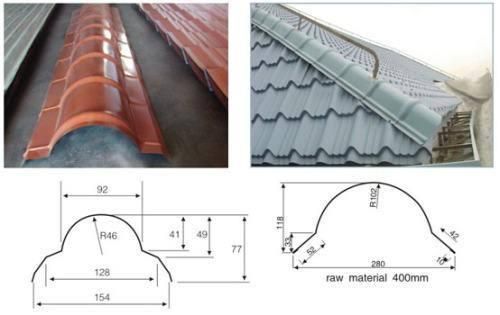

2. Profile Drawings for Reference:


3. Technical parameters:
 Manual decoilerCapacity5tonFeeding widthMAX 1300mmExpanding range460-520mm Metal Ribbed Ridge Cap Roll Forming Machine For Roof Joint SealingMain motor power4kwDrive1'' single chainType:Wall boardMain shaft dia¢70mmmaterial45# forge steel and quenchedRoller material45# high grade forge steel ,chrome coated 0.05mmRoll station16 groupsRaw material0.3-0.8mmCoil width 400mmWorking speed10m--15m/min(Exclude cutting time)Length Tolerance±1.5mmWeight of machineAbout 3 tonSize of machineAbout 3500×500×700mm L x W x HColor of machineYellow and BlueCoderOmron, made in JapanControlPLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)Computer operating paneltouching screenOther electrical elementSchneiderCuttingHydraulic cutting. Auto cutting when reach the set lengthHydraulic power4KWBlade materialCr12mov,quenched 58°-62°Working pressure16mpaCutting tolerance+/- 1.0mm
4. Equipment list :


No.	Product Name	QTY
1	5T Manual decoiler	1
2	Metal Ribbed Ridge Cap Roll Forming Machine For Roof Joint Sealing  (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system)	1
3	Passive Output table	2
Sum		4

5. Guarantee:

1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

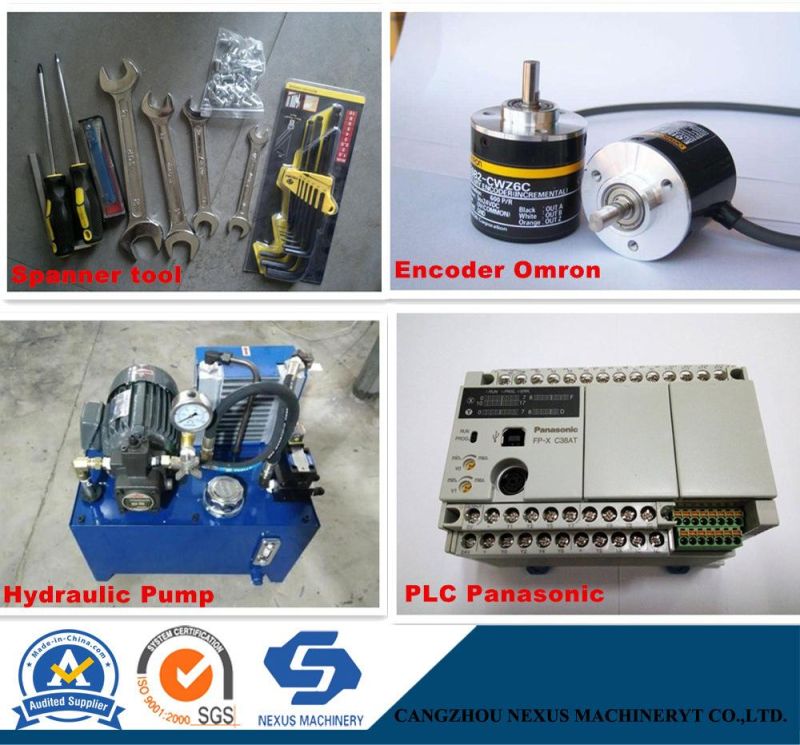

6. Photos of Metal Ribbed Ridge Cap Roll Forming Machine For Roof Joint Sealing for Reference:
