• Model NO.：NM249
• Name：Motorized Smoke Fire Damper Frame Blade Production
• Coil Material Thickness：1--3mm
• Processing Material：Galvanized Steel
• Roller Material：Cr12MOV
• Forming Speed：10-15m,Min
• PLC Brand：Panasonic
• Roll Forming Station：12 Stations
• Operation Type：Touching Screen
• Machine Weight：3 Tons
• Machine Color：Yellow and Blue
• Transport Package：Plastic Film
• Specification：80-300
• Trademark：Nexus Machinery
• Origin：Cangzhou
• HS Code：8455221000
• Production Capacity：10

Basic Info.

Model NO. NM249 Name Motorized Smoke Fire Damper Frame Blade Production Coil Material Thickness 1--3mm Processing Material Galvanized Steel Roller Material Cr12MOV Forming Speed 10-15m/Min PLC Brand Panasonic Roll Forming Station 12 Stations Operation Type Touching Screen Machine Weight 3 Tons Machine Color Yellow and Blue Transport Package Plastic Film Specification 80-300 Trademark Nexus Machinery Origin Cangzhou HS Code 8455221000 Production Capacity 10

Product Description

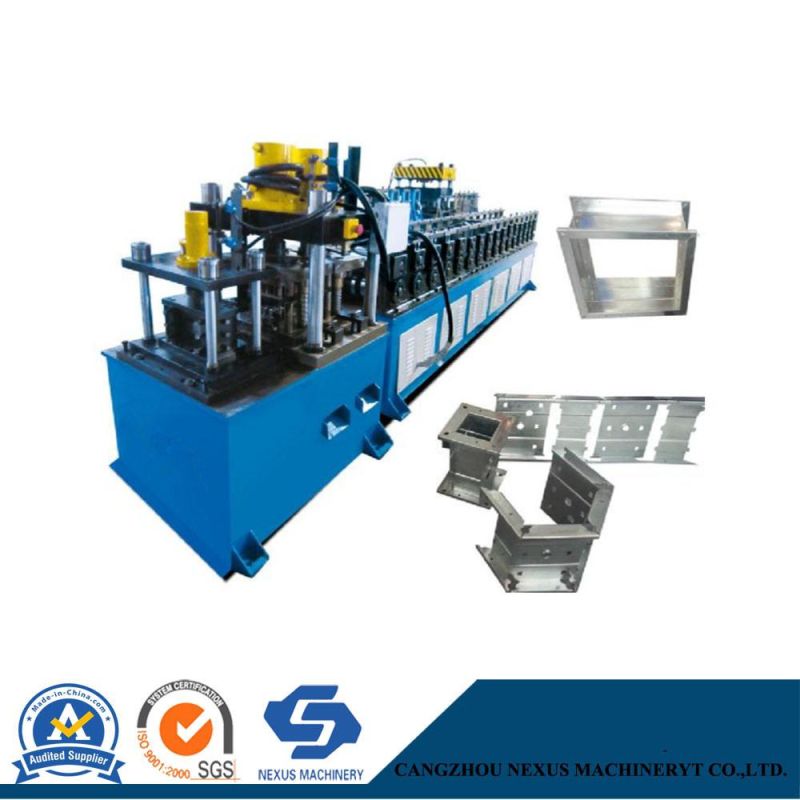

Roll Forming Machine for Motorized Smoke Fire Damper Frame Blade Production Line

Technical parameters:

Product Name	Roll Forming Machine for Motorized Smoke Fire Damper Frame Blade Production Line

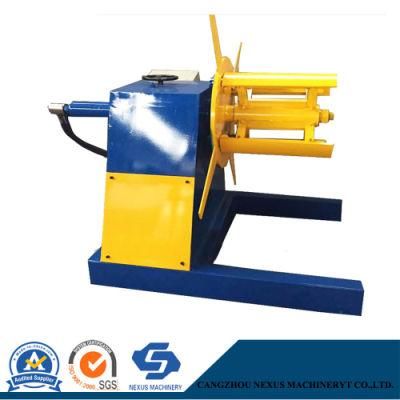

Configurations	Manual Uncoiler, Guiding Platform, 9 Shaft Strip Leveler, Main Machine Of Roll Forming, Hydraulic Motor, Pre-Punching Device,Pre-Cutting Device, Hydraulic Station, PLC Control, Supporter Table.
Control System	PLC Inverter Encoder Touch Screen
Main Frame	400mm H-Beam
Total Power	7.5kw
Power Supply	380V, 3-Phase,50Hz
Forming Speed	10-15m/min
Roll Station	12 stands
Decoiler capacity	3.5 tons
Roller Diameter	80mm
Effective Width	80-300mm
Feeding Thickness	1-3.0mm
Backboard Thickness	20mm
Cutter Standard	GCr12
Roller Standard	Gcr15#
Overall Size	About 8500×1000×1400mm
Total Weight	About 10T
Custom	According to customer's requirements

ABOUT US:

Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.

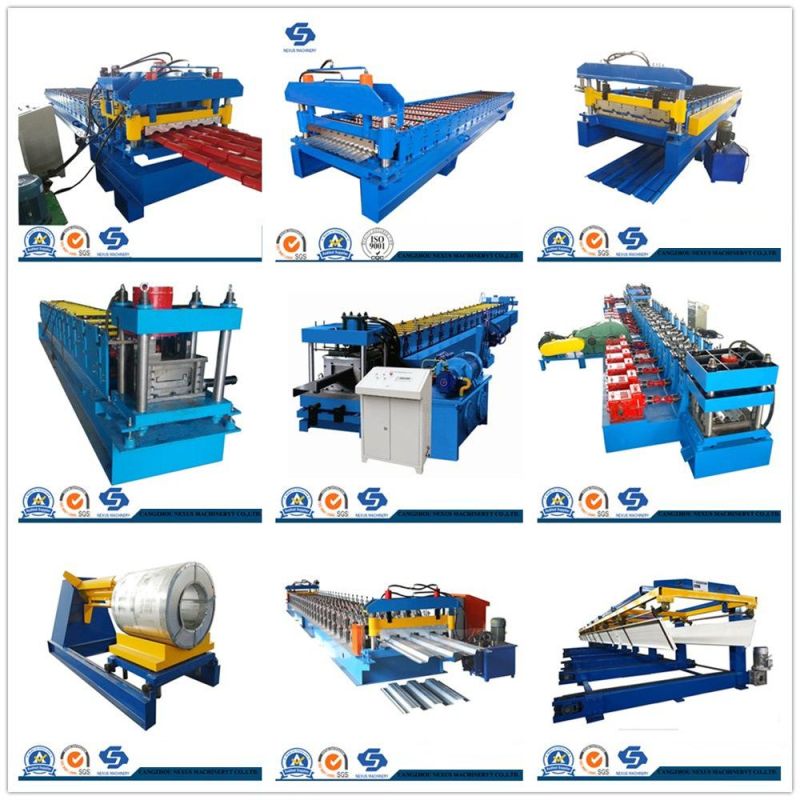

Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
