• Model NO.：NM216
• Diameter of Roller：80mm
• No. of Leveling System：7 Groups
• Feeding Type：Servo Motor Feeding
• Power of Feeding：7.5kw
• Power of Leveling：7.5kw
• Power of Forming：20 Kw
• Weight of Equipment：26 Tons
• Transport Package：40gp Container to Load
• Specification：7000mm*900mm*1500mm(L*W*H)
• Trademark：NEXUS MACHINERY
• Origin：Cangzhou, China
• HS Code：8455221000
• Production Capacity：20 Sets Per Month

Basic Info.

Model NO. NM216 Diameter of Roller 80mm No. of Leveling System 7 Groups Feeding Type Servo Motor Feeding Power of Feeding 7.5kw Power of Leveling 7.5kw Power of Forming 20 Kw Weight of Equipment 26 Tons Transport Package 40gp Container to Load Specification 7000mm*900mm*1500mm(L*W*H) Trademark NEXUS MACHINERY Origin Cangzhou, China HS Code 8455221000 Production Capacity 20 Sets Per Month

Product Description

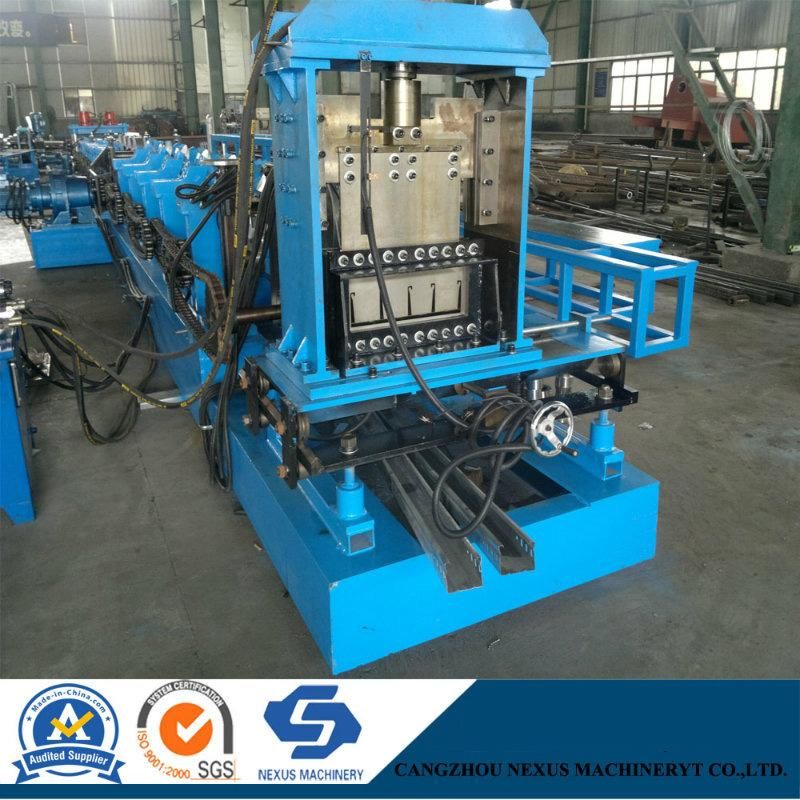

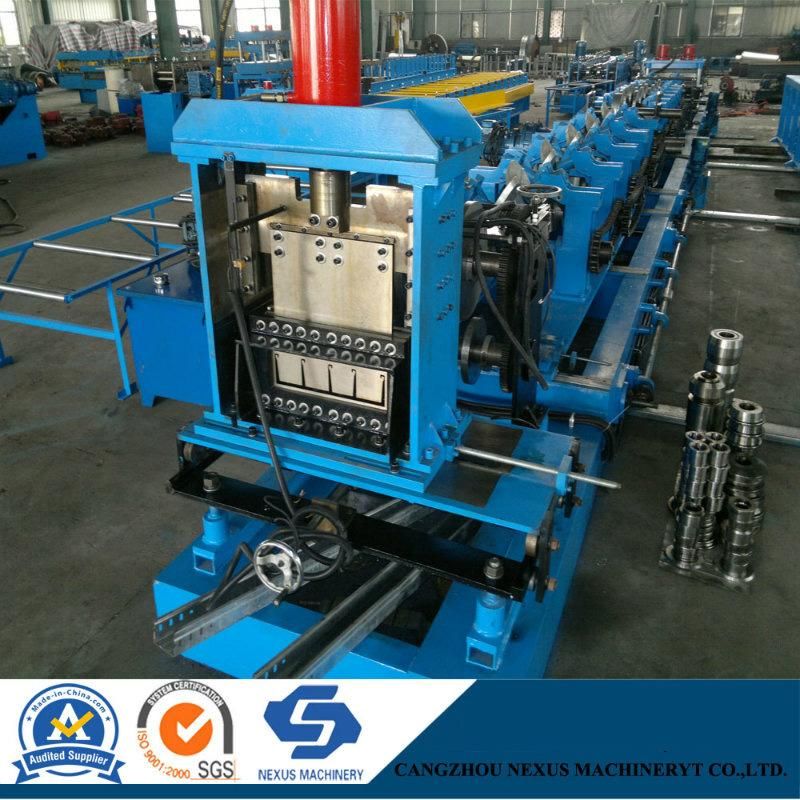

Automatic Cable Tray Roll Forming Equipment with Imported Electric Appliance

5 ton hydraulic De-coiler

Diameter: 508-610mm Hydraulic expansion. Pictures for reference
Expansion: hydraulic decoiler
Capacity: 5000kg per mandrel
Max Coil Width: 1250mm
Drag tension brake with variable brake tension adjustment valve

Leveling device

7 rolls leveling, 3 rolls up and 4 rolls down
Diameter is Ø 80mm, chrome and HRC60 heat treatment to secure the smooth surface
Leveling Raw Material thickness:1.0-2mm
Max Leveling Raw Material width: 1000mm
Power: 7.5kw
Drag tension brake with variable brake tension adjustment valve

Feeding device

Feeding Servo feeding motor: about 7.5KW,Yaskawa(Japanese Brand)
Description: servo feeding can control the punching distance in precision, controlled by PLC, and the feeding tolerance can be+-0.05mm, the servo motor can control the speed, and can accept the input signal, and react quickly, and performance well, the touch screen can display the rotating speed, the length and the quantity, it can be controlled by the manual and auto modes.

Press machine

Series JH21-200B
Brand name: Yangli


JH21 series press machine description:

JH21series open back press with dry clutch and hydraulic overload protector
Welded body with steel plate and high intensity.
Main motor is made by Siemens.
Adopts combined pneumatic friction clutch and brake.
Cluster gear adopts the flooding oil lubrication.
Six-face rectangle lengthen guide; JH21-315B/400B adopts eight-face lengthen guideway.
Equipped with hydraulic overload protecting device.
JH315 adopts manual shut height adjustment, Among these types JH21-25/45 adopts scale display and JH21-25B with digital display.JH21-250 and above type adopts electric shut height adjustment with digital display.
JH21-180 can equip with die set height adjustment motor, the value will be displayed by digital. above type equipped with balance cylinder.
Duplex valves imported.
Electric compelling grease lubrication system.
Balancing cylinder adopts manual lubrication system.
One set of blowing device.
Controlled by PLC with international brand.
Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are imported from international brand.
Equipped with optional air cushion device, automatic feed shaft and photoelectric protector,which can used to work with various automatic equipments.

 Punching Moulds description:
As for the profiles, total need 5 sets of punching moulds, when need to punching the first hole drawing, change the punching mould 1, when punching the second hole drawing, change the punching mould 2, ect. When the punching heads broke, they can be removed, and changed by the new punching heads.
Punching moulds material: Cr12Mov Quenching HRC58-62degree Shanghai NO.5 Steel (China best brand for steel)
Punching holes: long holes at bottom 35*7, and distance is 25mm, and 80mm. with Logo
Side holes: when width is 50mm, 2 holes, when width is 100mm, 2 holes, and when width is 150mm, 3 holes.

More Products for Choose:



FAQ:

1. How long the machine could be made?- Normally speaking, Cable Tray Forming Machine could
be made within 60 working days. If you need machines in a hurry, we can make it for you
less than 45 days.
2. How to visit your company?
-a.Fly to Beijing airport:   By high speed train From Beijing Nan to Cangzhou Xi (1 hour),
then we can pick up you.
b.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5
hours), then we can
pick up you.
3. Do you have after sales support?
-Yes, we are happy to give advice and we also have skilled technicians available across the
world.We need your machines running in order to keep your business running.
