• Model NO.：NM239
• Name：Roof Ridge Cap Making Machine
• Raw Material：PPGI Sheet
• Thickness Range：0.3-0.8mm
• Machine Power：5.5kw+4kw
• Work Speed：8-10m,Min
• Shaft Material：45# High Grade Forge Steel ,Chrome Coated 0.05mm
• Machine Weight：About 3 Tons
• Operation Type：Touchig Screen
• Warranty：12 Months
• Afer-Sales Service：Engineer Is Availble to Overseas
• Transport Package：Plastic Film & Steel Wire Fixed
• Specification：3500mm*500mm*700mm(L*W*H)
• Trademark：NEXUS MACHINERY
• Origin：Cangzhou, China
• HS Code：8455221000
• Production Capacity：30 Sets , Months

Manual decoilerCapacity5tonFeeding widthMAX 1300mmExpanding range460-520mm Roof Ridge Cap Making Machine Metal Roof Roll Forming MachineMain motor power5.5kwDrive1'' single chainType:Wall boardMain shaft dia¢70mmmaterial45# forge steel and quenchedRoller material45# high grade forge steel ,chrome coated 0.05mmRoll station16 groupsRaw material0.3-0.8mmCoil width 400mmWorking speed10m--15m/min(Exclude cutting time)Length Tolerance±1.5mmWeight of machineAbout 3 tonSize of machineAbout 3500×500×700mm L x W x HColor of machineYellow and BlueCoderOmron, made in JapanControlPLC Panasonic, made in Japan. 380V 50HZ,3phase (Also depend on client)Computer operating paneltouching screenOther electrical elementSchneiderCuttingHydraulic cutting. Auto cutting when reach the set lengthHydraulic power4KWBlade materialCr12mov,quenched 58°-62°Working pressure16mpaCutting tolerance+/- 1.0mm
4. Equipment list :


No.	Product Name	QTY
1	5T Manual decoiler	1
2	Popular Customized Camber 312 Ridge Cap Roof Tile Cold Roll Making Forming Machine  (Includes Hydraulic cutting, PLC computer, Electrical cabinet, Hydraulic system)	1
3	Passive Output table	2
Sum		4

5. Guarantee:

1) Engineer will give free training lessons to labors in buyer's factory.
2) The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 per day for engineer.
3) During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.

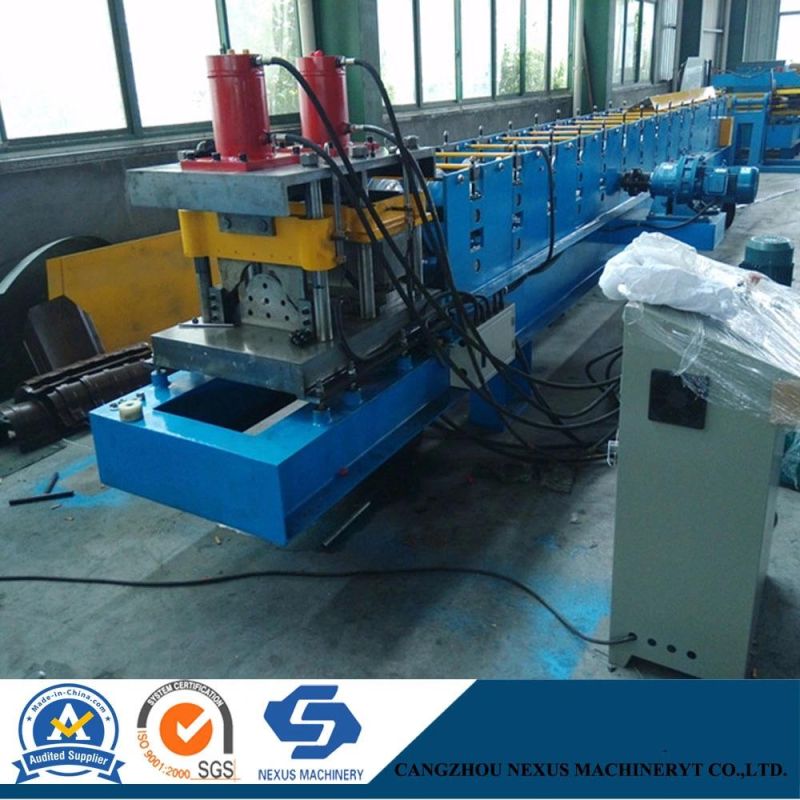

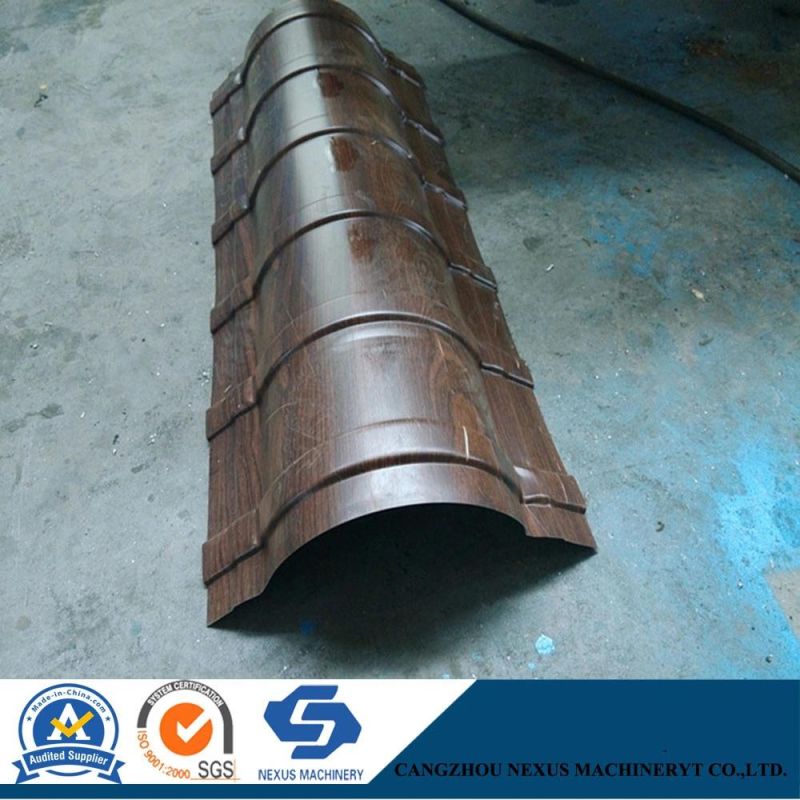

6. Photos of Popular Customized Camber 312 Ridge Cap Roof Tile Cold Roll Making Forming Machine for Reference:





ABOUT US:

Cangzhou Nexus Machinery Co.,Ltd is experienced manufacturer & exporter of cold roll forming machine with ISO quality system.
Our R&D department is staffed with senior engineers who has more than 20 years experience in metal forming machine industry, so we are able to assist customers with professional designing and solution.
Our range of products: roof tile roll forming machine, cladding roll forming machine, metal decking roll forming machines, C/U/Z/W/L steel purlin roll forming machine etc. We also can supply steel coils, roof panels to suit diverse requirements of our global customers.
Today, we have exported our machines to America, Chile, Mexico, Bolivia, Brazil, Colombia, Argentina, Ecuador, Honduras, Fiji, Papua New Guinea, Kuwait, Syria, Oman, Saudi Arabia, U.A.E, Nigeria, Tanzania,Ethiopia, Gana, Guinea,South Sudan, Algeria, Niger, Philippines,Indonesia,India, Azerbaijan and Kazakhstan.
We have rich experience for cold roll forming machine solution,competitive price and excellent service. We will continue to do our best to supply perfect products and service for customers. Invite you to contact us for further information.

Hot-Sale Products you Might Be Interesting:

Packing:
1. One 20feet container for loading one set machine with mechanical decoiler.
2. Main machine body and decoiler is load naked (tighten to container with steel wire rope).
3. Spare parts and operating tools are loading in tooling box.
